LF 170 Operation
109
ba54104e09 11/2010
Invalid setting With the 700, 600 and 300 sensor types, the entry is invalid if the
value deviates from the nominal cell constant by more than ±10 %:

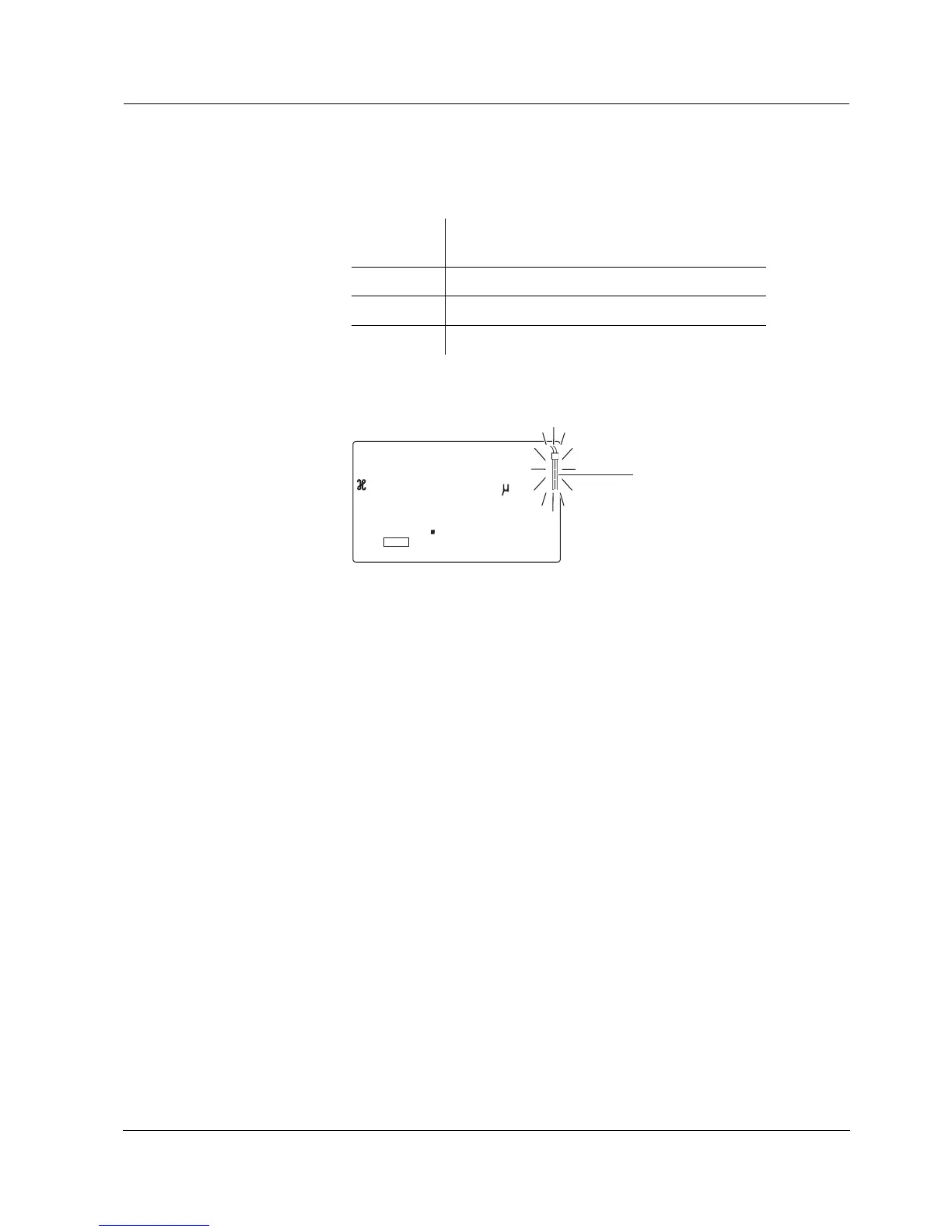

If the validity range is left, this is already visible from the flashing sensor
symbol during the setting process:
Measurement is not possible with an invalid setting. After swapping to
the measured value display the sensor symbol and an invalid
measured value are displayed ("----"). The states of all relays and
current outputs linked with the measured conductivity value remain
frozen.
Remedial measures:
z Clean the measuring cell (see measuring cell operating manual)
z Check the conductivity control standard and renew if necessary
z Then repeat the checking/setting routine.
If these measures are not successful or cannot be carried out and a
further measurement is still required, the checking/setting routine can
be repeated and a valid value selected for the cell constant. However
note that the subsequent measured values contain a larger measuring
error and the measuring system no longer meets the stated
specifications.
Sensor
type
Validity range
700 0.826 ... 1.008 cm
-1
(0.917 cm
-1
±10 %)
600 0.826 ... 1.008 cm
-1
(0.917 cm
-1
±10 %)
300 0.549 ... 0.669 cm
-1
(0.609 cm
-1
±10 %)
