IQ SENSOR NET MIQ/T2020 Technical data
7 - 1
7 Technical data
Dimensions

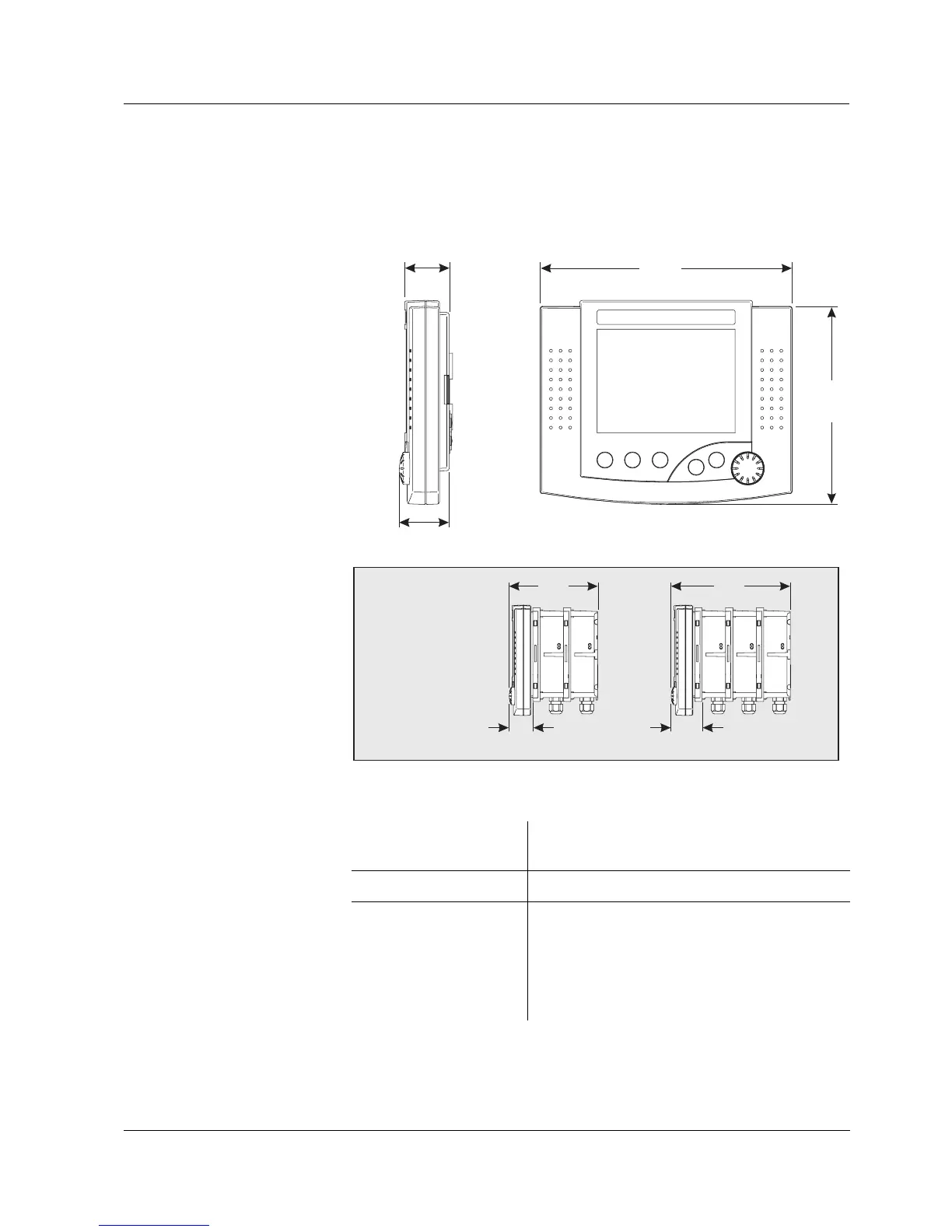

Fig. 7-1 Dimension drawing of the MIQ/T2020 terminal (dimensions in mm)
Mechanical construc-
tion
Number of MIQ/T2020 in
the IQ S
ENSOR NET
Depending on the number of terminal components already installed. A
total of up to three terminal components can be used in the
IQ S
ENSOR NET.
Side view: Front view:
42,0
37,0
210,0
170,0
137 185
Stacked mounting:
37,0 48,0
Housing material ASA (Acrylonitrile Styrene Acrylesterpoly-
mer)
Weight Approx. 0.7 kg
Type of protection – IP 66
– In accordance with NEMA 4X
The terminal is not suitable for conduit
connection
– NEMA 3S
