3 DESCRIPTION AND FUNCTION OF THE BLUELEVEL BASIC WITH AND WITHOUT RADIO MODULE
Starting the BlueLEVEL BASIC
The BlueLEVEL BASIC is started using the <ON/MODE> and <ON> keys
located opposite on the handle. The two keys must be pressed
simultaneously until all the LEDs on the top of the handle are lit.
In case the BlueLEVEL BASIC is connected to a BlueLEVEL BASIC with
external power supply, the BlueLEVEL BASIC is started automatically when
the BlueMETER BASIC is switched on.
As soon as the BlueMETER BASIC has reached the operational mode the
green LED is blinking.

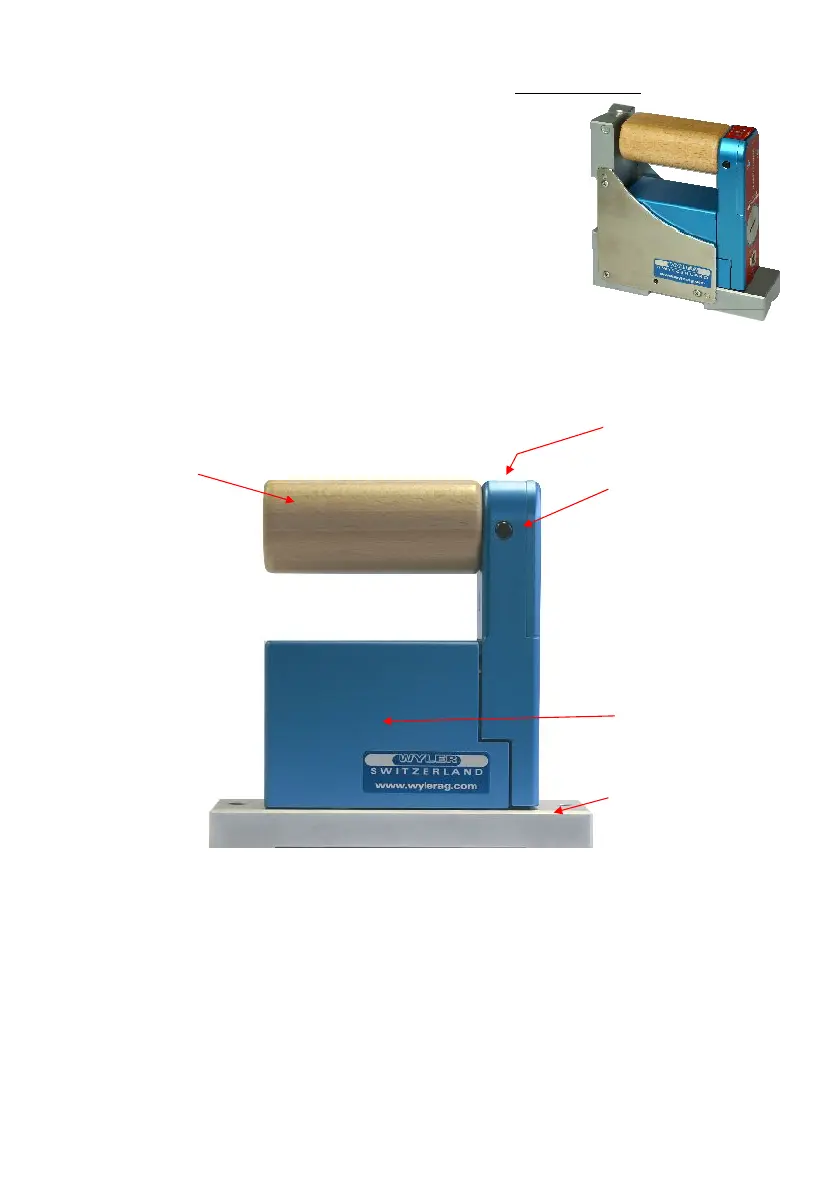

3.1 THE BLUELEVEL BASIC (OVERVIEW)
LED Display
Handle
Two keys on the forefront
and back side each
(ON/OFF and ON)
Sensor cell with electronic
modules in nitrogen filled,
gastight housing.
Measuring base
Attention: The housing is NOT rigidly fixed to the measuring base
for avoiding mechanical tensions.
