page 13 of 84

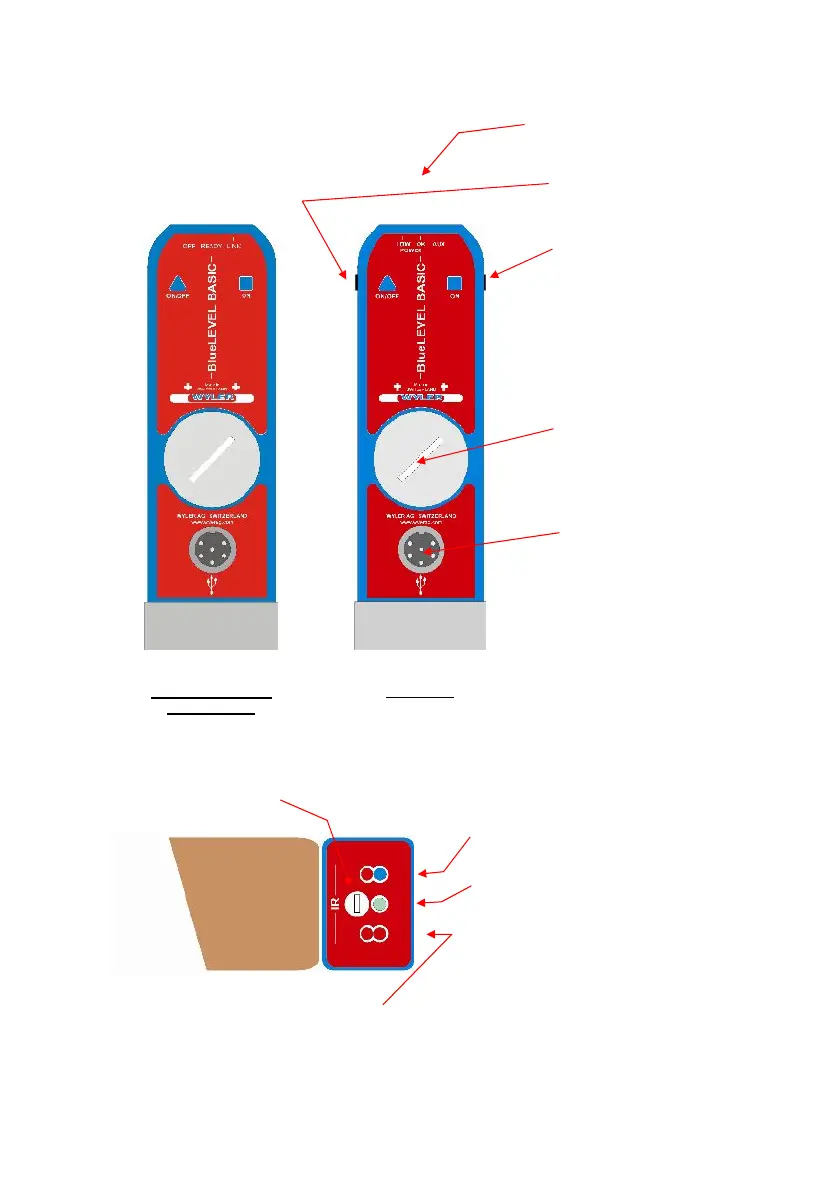

3.2 VIEW OF FUNCTIONAL KEYS BLUELEVEL BASIC
3.2.1 REAR VIEW
LED functions indicator
(see separate picture)
BlueLEVEL BASIC
with wireless data
transmission
BlueLEVEL BASIC
with cable
key "ON/OFF"
key "ON"
Batteries
Connector
RS422 / RS485
3.2.2 T
OP VIEW OF THE BLUELEVEL BASIC WITH RADIO
IR-receiver (infrared)
LED-blue, “LINK“ lit:
instrument connected via radio transmission
LED-greed, "READY", blinking:
Power supply "O.K."
The number ob blinking impulses
corresponds to the number of members in
the wireless transmission group
LED-red,"OFF" lit continuously:
Radio transmission is switched off
LED-red "OFF" blinking:
Power supply "insufficient" no further measurements possible.- on the BlueMETER BASIC display
a remark appears instead of the mesuring value, saying that the measuring instrument is not
sufficiently powered. Replace the batteries or supply the systems with a mains adapter
