Controller Functions
975-0004-01-02 Rev D 11
or automatic reconnect when the C-Series is used as a load
controller. Do not use this decal if using the C-Series
controller as a PV Charge Controller or Diversion Controller.
Low Voltage Disconnect
When configured as a load controller, the C-Series controller
will disconnect the load from the batteries when it reaches the
LVD setting. There will be a 6-minute delay after the voltage
drops below the Low Voltage Disconnect (LVD) setting
before the controller actually disconnects the load.
Low Voltage Reconnect
It can also provide automatic reconnection of the loads at the
LVR (Low Voltage Reconnect) setting. Reconnection of the
load is allowed once the battery voltage has exceeded the
Low Voltage Reconnect (LVR) setting.
Loads are either automatically or manually reconnected when
battery voltage exceeds the Low Voltage Reconnect (LVR)
setting for 6 minutes.
See “Operating Mode Jumper” on page 20 for instructions on
enabling this mode.

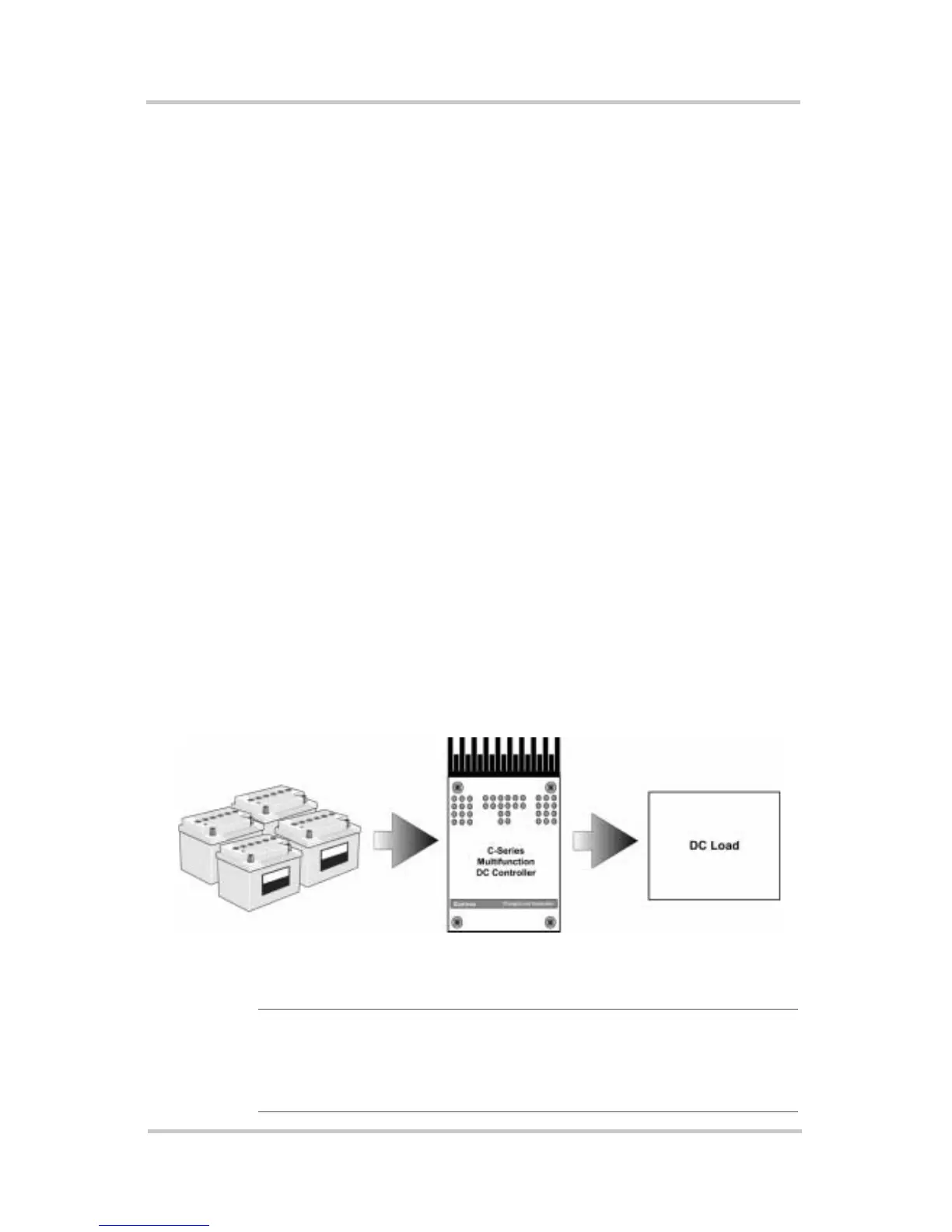

Figure 1-5
Load Controller
Important:
When using the DC Load Control mode:
• Do not temperature-compensate these settings.
• Do not install the optional battery temperature
compensation sensor.
