Wiring
975-0004-01-02 Rev D 49

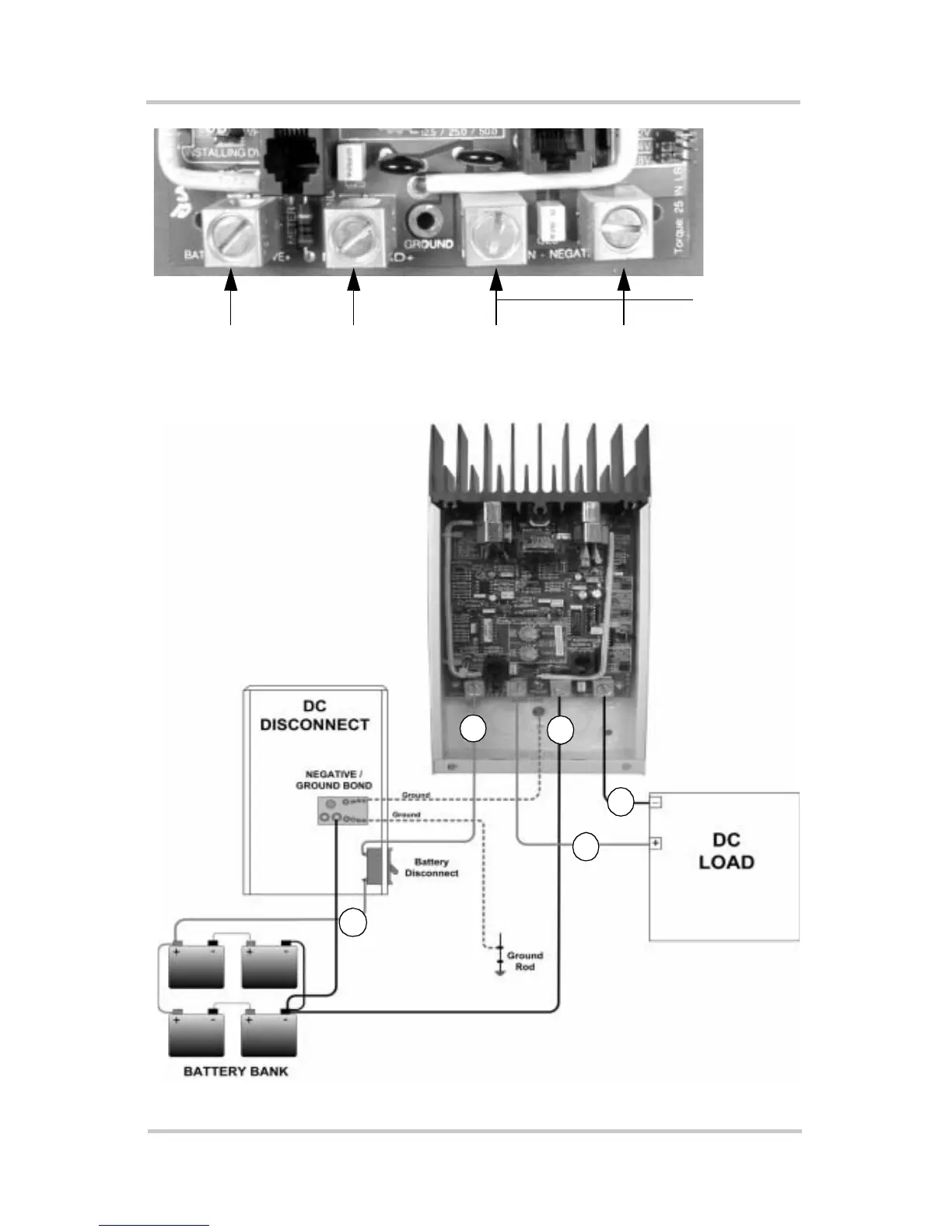

Figure 2-25
Load Control Mode Wiring
4
2
1
5
3
Battery
Positive (+)
DC Load
Positive (+)
DC Load
Negative (–)
Battery
Negative (–)
Common
Negatives
