Reset Switch
975-0004-01-02 Rev D 61
Reset Switch
Use the Reset Switch on the side of the chassis for the
following conditions.
• To manually initiate battery equalization in Charge
Control mode, press and hold the Reset Switch until the
red and green LED start to flash.
• To manually suspend battery equalization in Charge
Control mode, press and hold the Reset Switch until the
red and green LED stop flashing.
•To reset following an error condition, press and release
the Reset Switch.
•To reset following a low-voltage disconnect, press and
release the Reset Switch.
See “Reconnecting to Loads” for additional information
about reconnecting to loads.
Important:
The LED will light red only in Load Control
mode; never in Charge or Diversion mode (unless it is reversed
upon reinstallation).

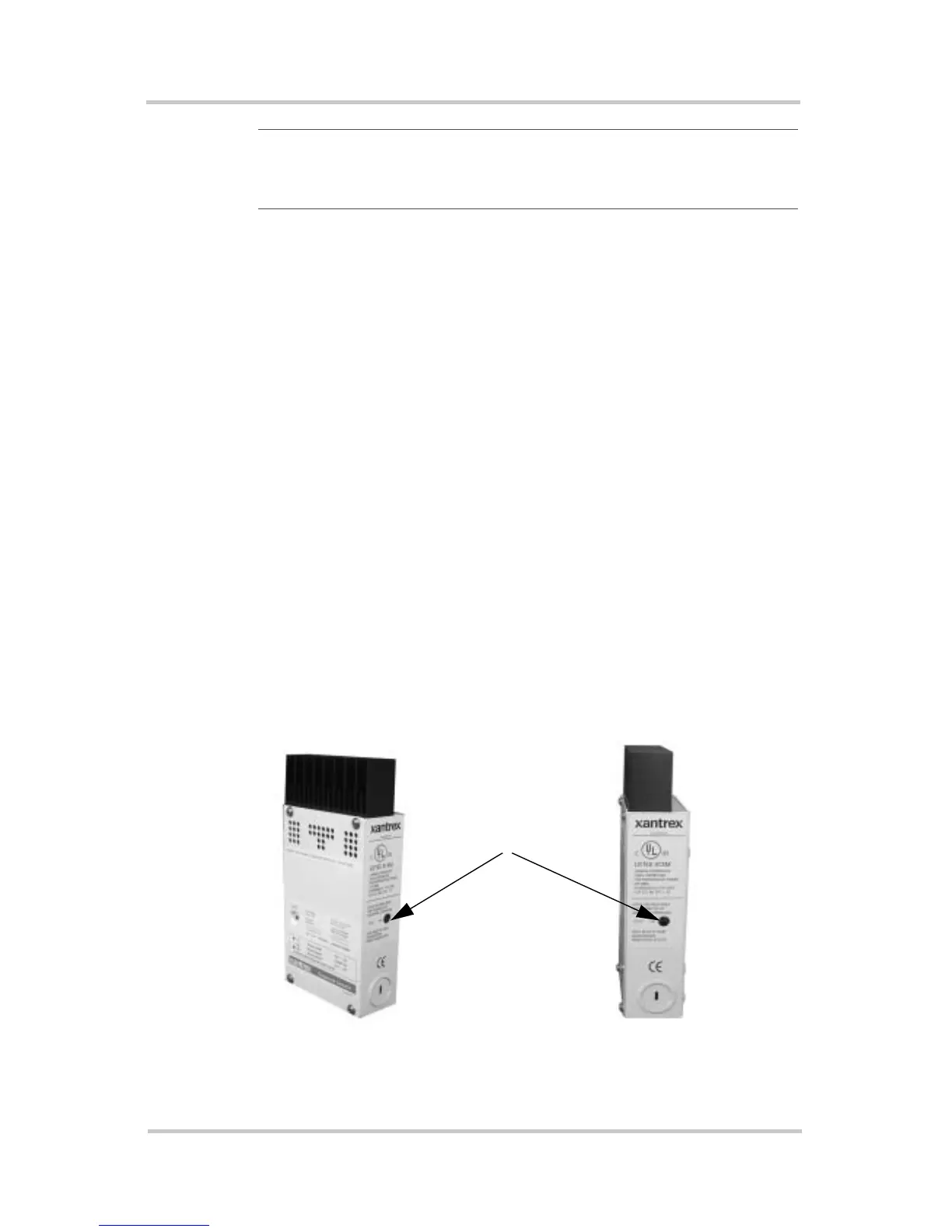

Figure 3-3
Reset Switch
Reset Switch
