Xantrex C35 - Figure 2-23 PV Charge Control Mode Wiring

Wiring
975-0004-01-02 Rev D 45

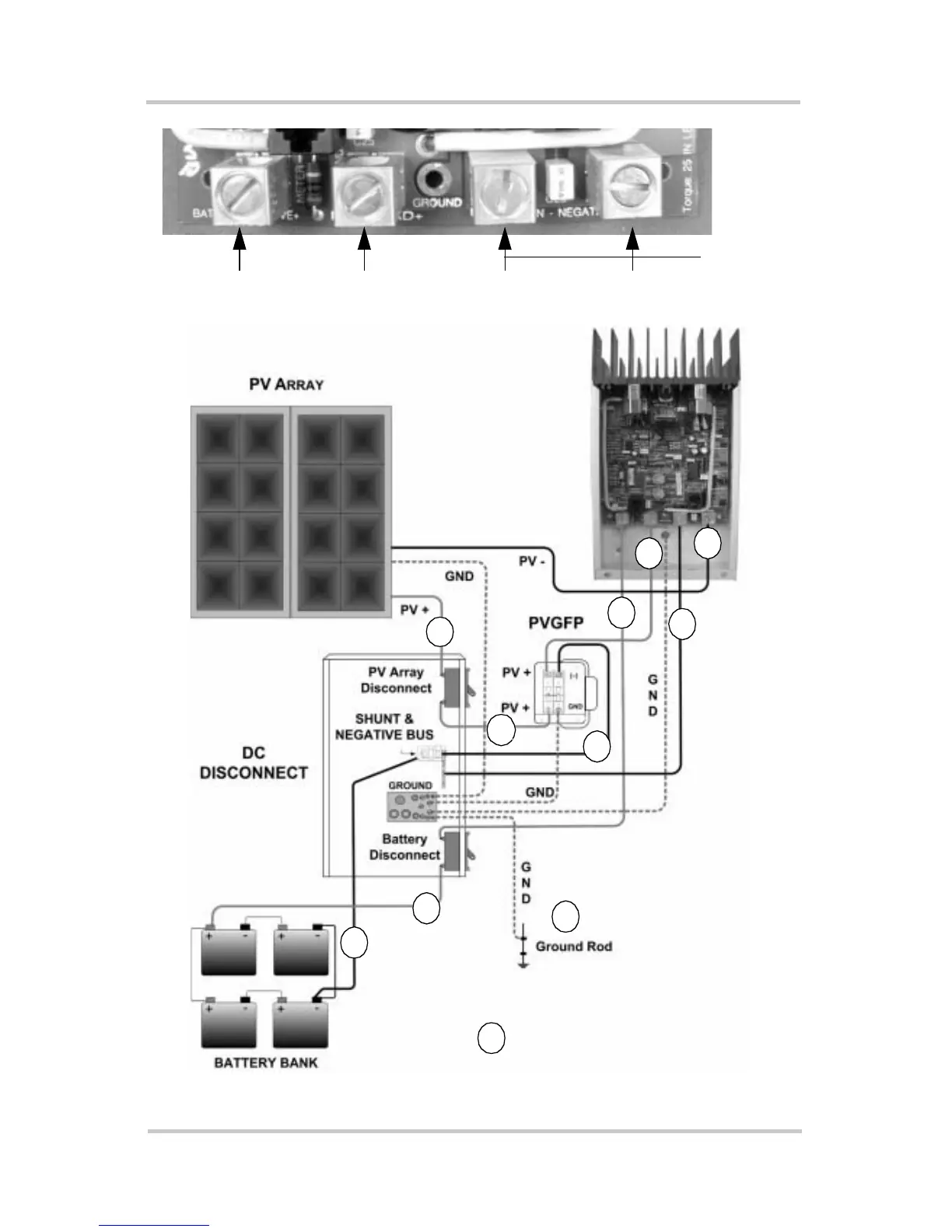

Figure 2-23 PV Charge Control Mode Wiring
4
2
1
7
5
6
8
A
3
9
A
Battery
Positive (+)
PV+ Array
Positive (+)
PV Array
Negative (–)
Battery
Negative (–)
Common
Negatives
Ensure the proper grounding is in
place for the entire system.
