Pre-Installation
975-0004-01-02 Rev D 15
knockouts before making any wiring connections. It is also
recommended to use bushings or conduits to protect the
wiring from damage from rough edges in the knockout holes.

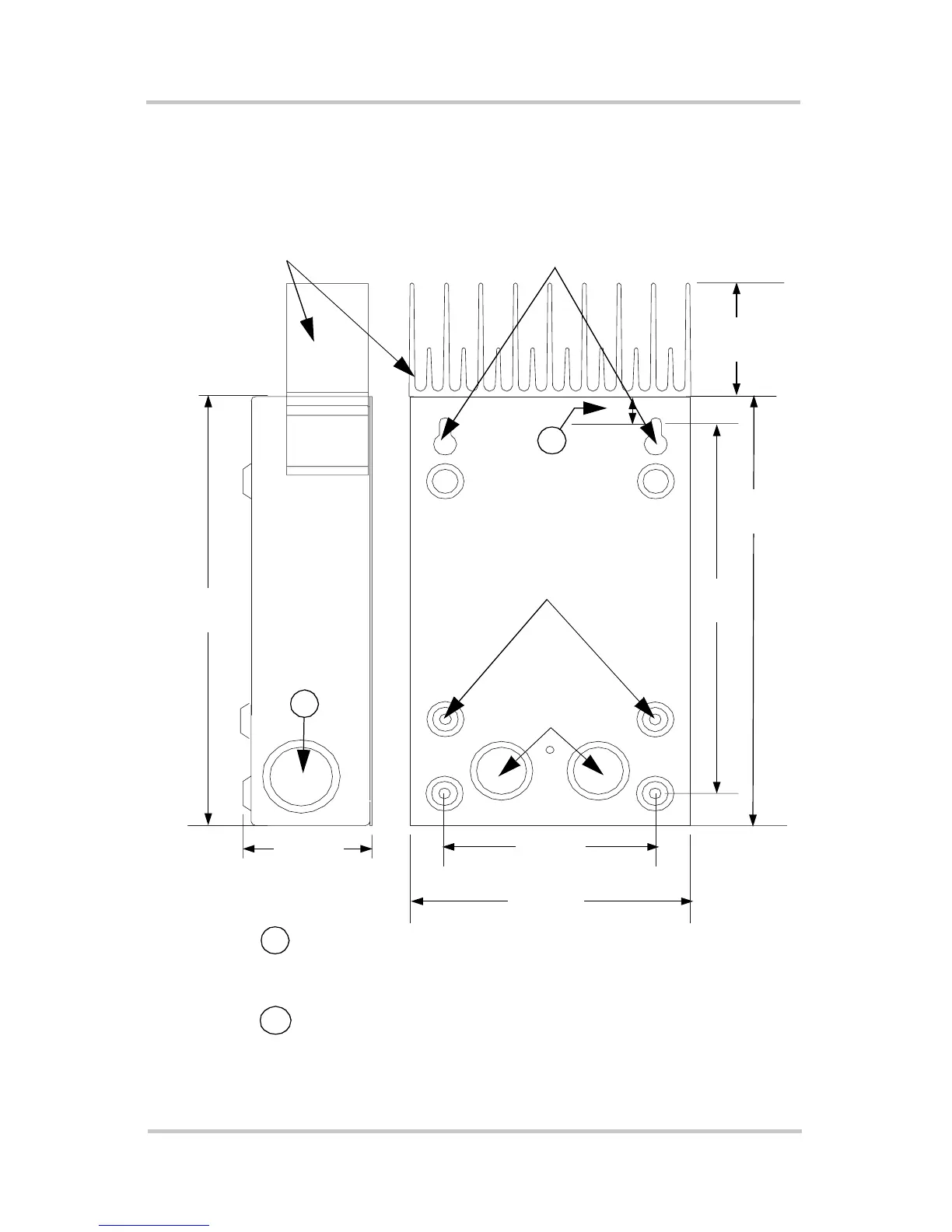

Figure 2-2 C-Series Dimensions and Knockout Locations (Not to Scale)
Side View
Rear View
8"
(203 mm)
6 7/8"
(174 mm)
8"
(203 mm
)
2"
(51 mm)
2 ¼”
(64 mm)
5”
(127 mm)
3 5/8”
(93 mm)
Heatsink not
included on C35
This distance varies per model:
C35 = 3/8"
C40, C60 = 5/8"
½ and ¾"
Dual-Knockouts
¾ and 1"
Dual-Knockouts (x4)
(1 on each side and 2 on the bottom of chassis)
Keyhole Slots for
mounting
1
2
1
2
Additional Mounting
Holes (x4)
