Installation
50 975-0004-01-02 Rev D
Installing Optional Accessories
The following sections describe how to install the optional
accessories available for the C-Series Multifunction DC
Controller.
Installing a Digital Display
Follow the instructions in the C-Series Meter Displays
Installation Guide for preparing the CM or CM/R for
installation.
The display will connect to the controller at the RJ-15 port on
the lower left corner of the circuit board.
Important:
Ensure the voltage jumpers on the back of the CM
or CM/R match the system voltage as configured inside the
controller unit. See the C-Series Meter Displays Installation
Guide for additional information.

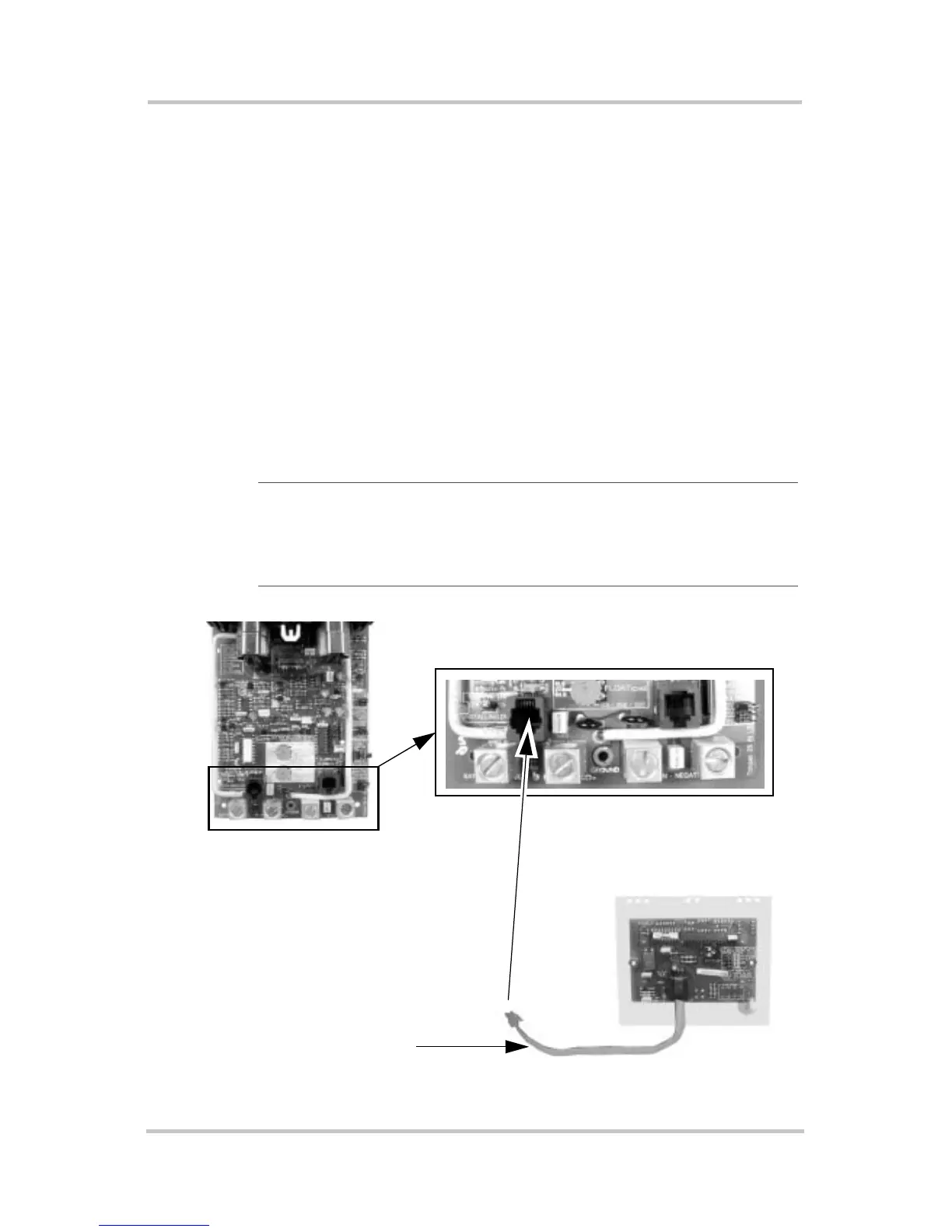

Figure 2-26
Installing a Digital Display
Serial Communication Cable
C-Series Circuit Board
Digital Meter Display Port
RJ-15 Port
To Next Page
