Xantrex Freedom SW Series User Manual

30 Freedom SW Owner’s Guide
Operating the Freedom SW with the SCP

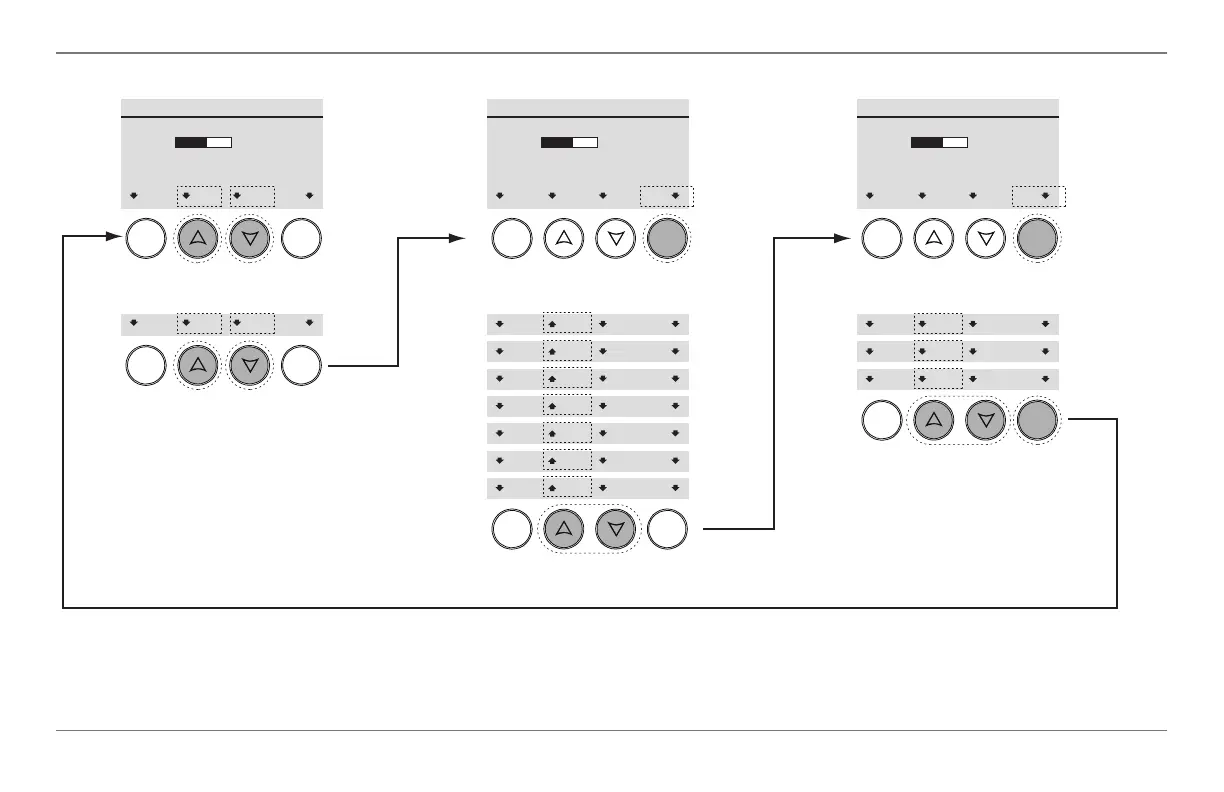

Figure 14 Freedom SW System Status Screen - Soft Key Navigation
System Status
Battery
BatLev
Load
AC In
12.1V -257A 84”F
Invert
120V 12A
0V 0A
menu EnInv EnChg Shr
Enter Func
menu DsInv DsChg Shr
Enter Func
System Status
Battery
BatLev
Load
AC In
12.1V -257A 84”F
Invert
120V 12A
0V 0A
menu EnInv EnChg Shr
Enter Func
menu PS5A AGS
Enter Func
System Status
Battery
BatLev
Load
AC In
12.1V -257A 84”F
Invert
120V 12A
0V 0A
menu EnInv EnChg AGS
Enter Func
menu M_Off Home
Enter Func
menu M_On Home
menu Auto Home
menu PS10A AGS
menu PS15A AGS
menu PS20A AGS
menu PS25A AGS
menu PS30A AGS
menu PS5A AGS
Press the Down arrow button to
Enable the Chg (Charger) (or
both chargers in stack mode).
Press the Up and Down arrow buttons
to change the shore power breaker
ratings.
Press the Up arrow button to
Enable the Inverter (or both
inverters in stack mode).
Press the Down arrow button to
Disable the Chg (Charger) (or both
chargers in stack mode).
Press the Up arrow button to
Disable the Inverter (or both
inverters in stack mode).
Press the Func button to
change the Shr (shore
power breaker rating).
Press the Func button to
change the AGS (AGS
trigger modes).
Press the Up and Down
arrow buttons to change
the AGS trigger modes.
Press the Func
button to go back
to Home.
FSW Owners Guide.book Page 30 Tuesday, August 7, 2018 9:03 AM

Xantrex Freedom SW Series Specifications

General

Output Voltage	120 VAC
Output Frequency	60 Hz
AC Transfer Switch	Yes
Battery Charger	Yes
Input Voltage	12V, 24V, 48V DC
Protections	Over temperature, overload, short circuit
