Features
975-0209-01-01 1–3
Transfer Switching Speed
While this inverter is not designed as an uninterruptible power supply (UPS)
system, its transfer time is normally fast enough to hold up most computers. The
transfer time is typically 16 milliseconds.
Front Panel Features
Before installing and operating the RV Series Inverter/Charger, review the front
panel features shown in Figure 1-1 and described in Table 1-2.

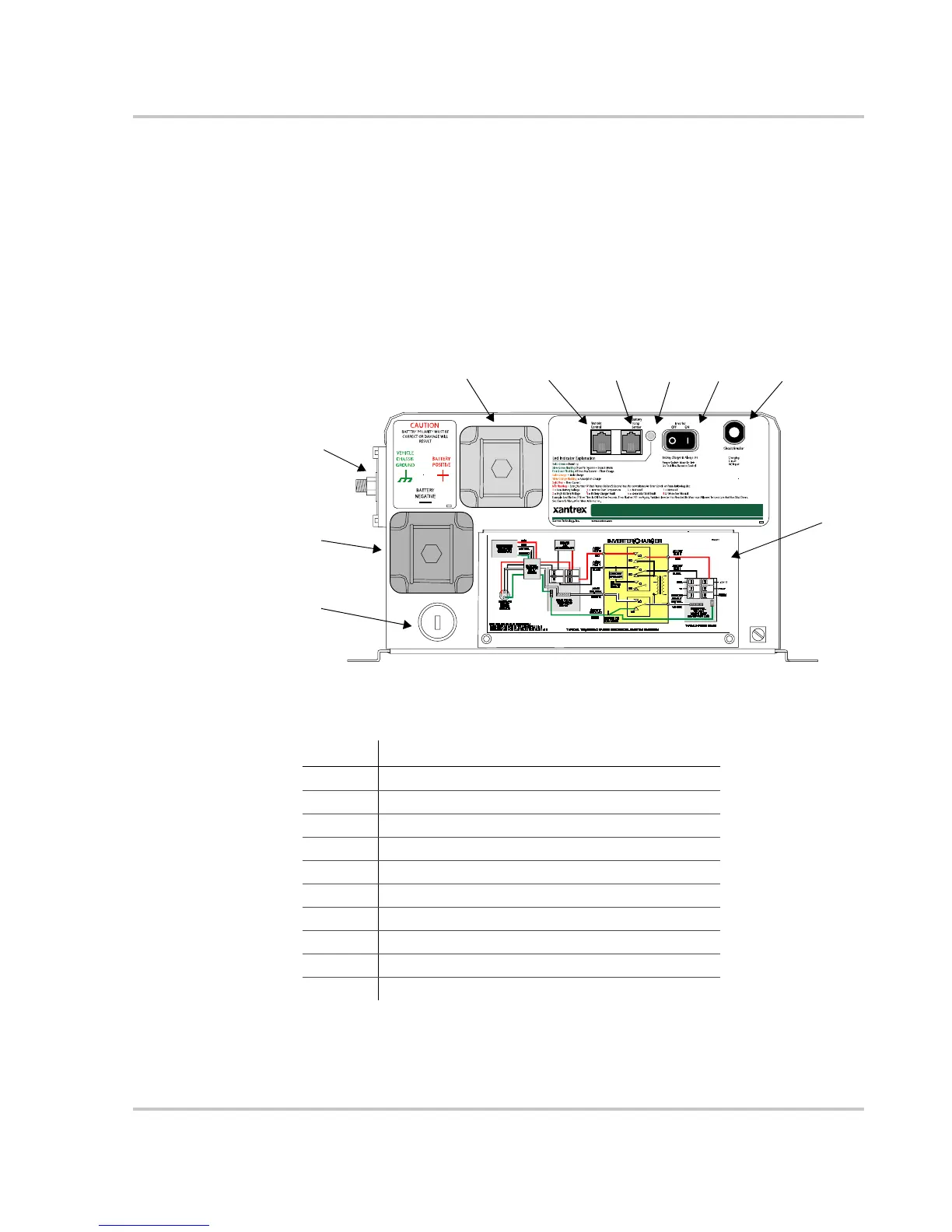

Figure 1-1
RV Series Inverter/Charger Front Panel Features
Table 1-2
Front Panel Features
Feature Description
1 AC wiring knockout
2 Negative DC terminal (black)
3 RV ground terminal (green)
4 Positive DC terminal (red)
5 Remote control jack
6 Battery Temp. Sensor jack
7 LED indicator light
8 Inverter
ON/OFF switch
9 Charger circuit breaker
10 AC wiring compartment cover (with wiring diagram)
PN 270-0697- 01-01
30
60A
30A
2
4
3
1
56 897
10
