Installation
2–22 975-0209-01-01
Generac
Wiring to a Thermostat
With the RC/GS remote control, you can enable the RV Series Inverter/Charger AGS to
start the generator in response to 5 to 30 V output signal from a thermostat. Once
connected and enabled, the AGS will automatically start the generator when the air
conditioner or furnace needs to be run. You cannot program the thermostat itself with the
RC/GS. Thermostat connections are made on the terminal block (see Figure 2-8 on page
2–19).
For specific information about thermostat wiring and where AGS connections should be
made, please consult your thermostat documentation or contact the thermostat
manufacturer.

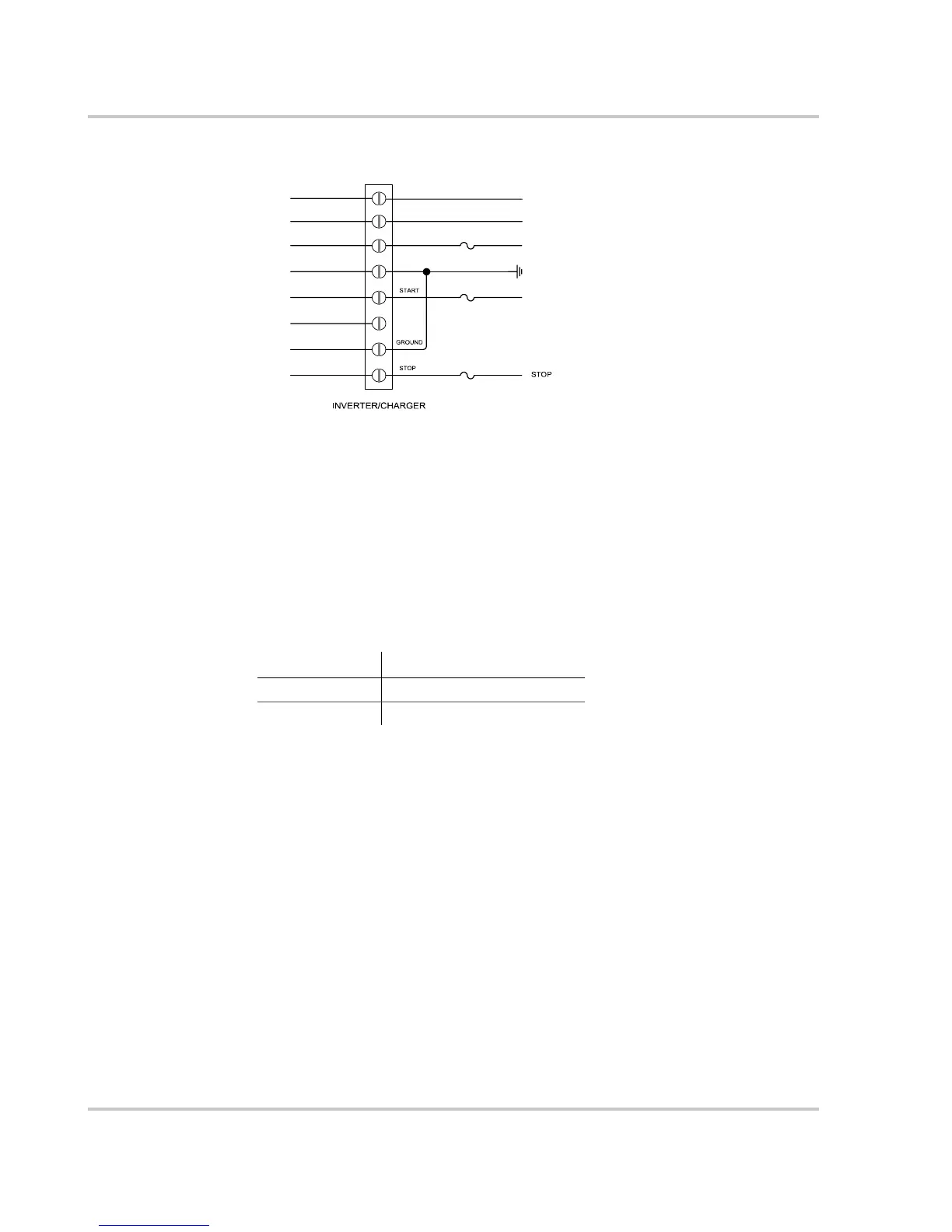

Figure 2-12
Generac Wiring Diagram
GROUND
START
PREHEAT 1
COM. GEN START 1
N.O. GEN START 2
N.C. GEN STOP 3
COM. GEN STOP 1
N.O. GEN STOP 2
PREHEAT 2
GEN RUN
GEN RUN SIGNAL (B+)
PREHEAT
GENERATOR BATTERY POSITIVE
5 A
5 A
5 A
GENERATOR
WIRING HARNESS
Terminal name Connects to...
Thermostat + Thermostat input (5–30 V)
Thermostat – Thermostat return (ground)
