Preparing for Installation
975-0402-01-01 2–7
This guide for use by qualified installers only

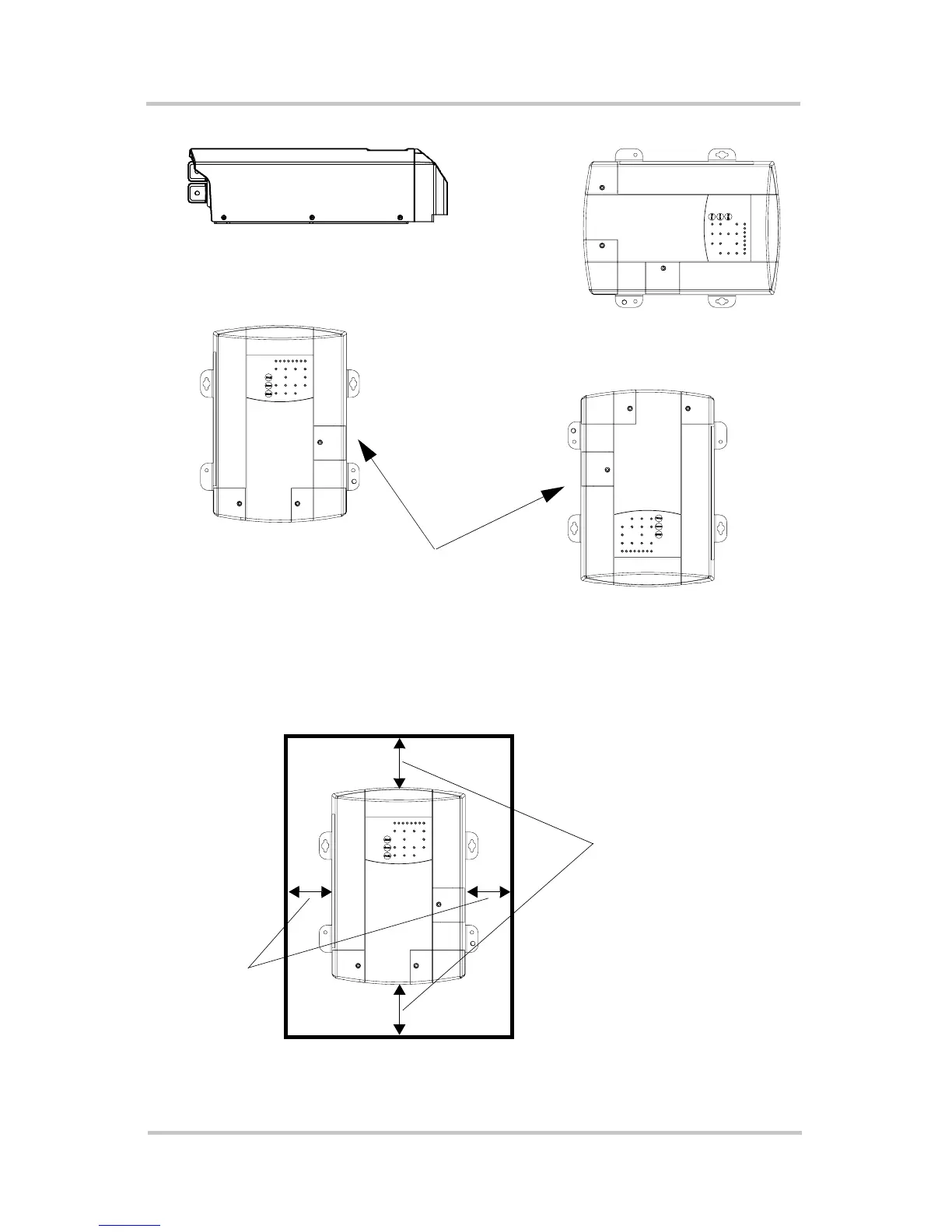

Figure 2-2
Truecharge™ 2 Battery Charger Mounting Orientations
Figure 2-3
Ventilation Clearance
Deck Mount - this orientation meets IP-32
requirements and is drip-proof.
Vertical Wall Mount (Rear panel facing down or up) - this
orientation is allowed in locations that are always dry but
is approved for marine installations only with additional
drip protection.
Horizontal Wall Mount (with AC wiring higher
than DC terminals only) - this orientation meets
IP-32 requirements and is drip-proof.
a) b)
AC
DC
c)
d)
6cm.
(2.5 in.)
10 cm.
(4 in.)
