Xerox 2515 User Manual

$3.

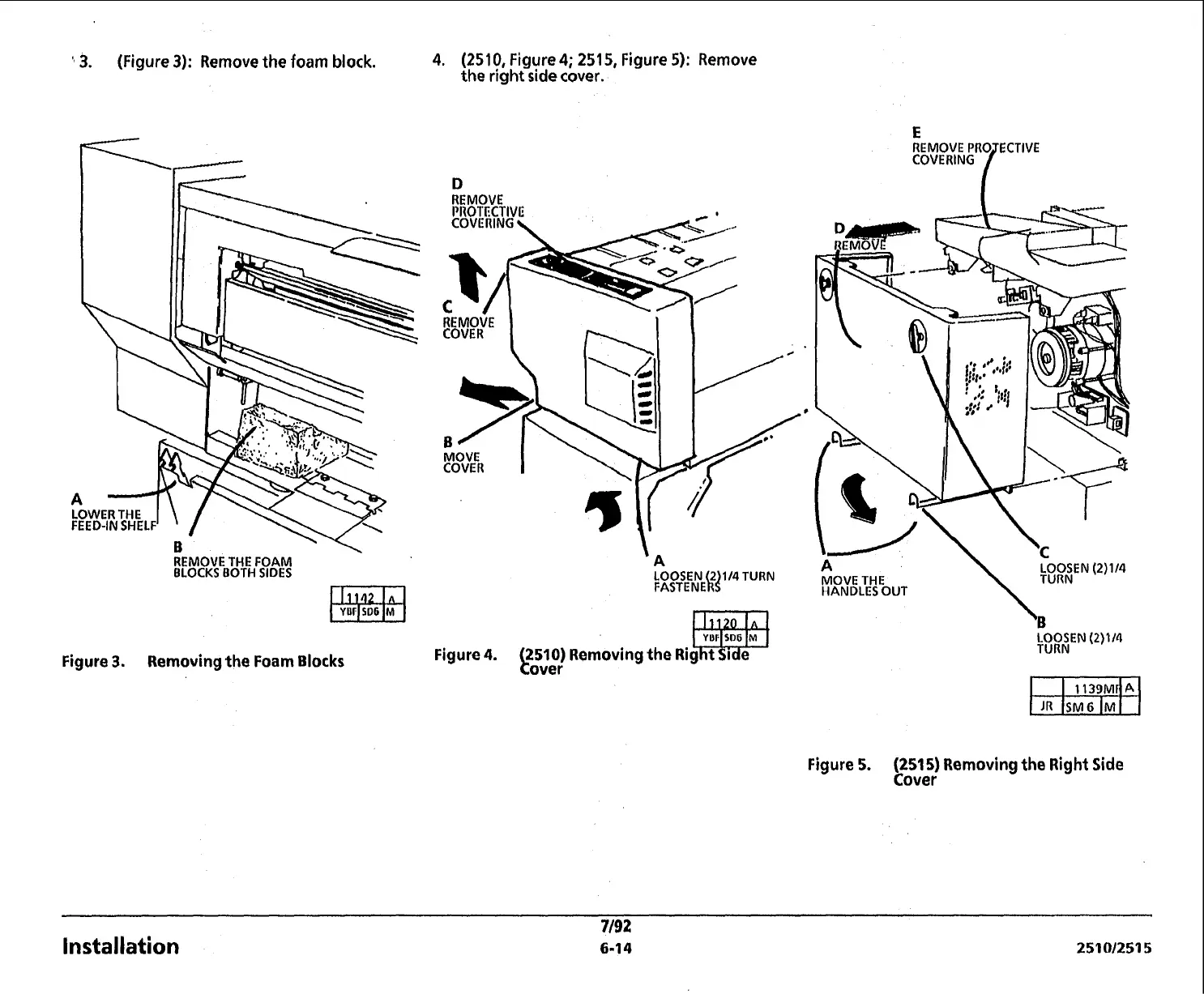

(Figure 3): Remove the foam block.
4. (2510, Figure 4; 251 5, Figure 5): Remove
the right
side cover.
REMOVE
PROTECTlVti
COVERING
C
MOVE
COVER
REMOVE THE FOAM
BLOCKS BOTH SIDES
Figure 3. Removing the Foam Blocks
COVERING
A
LOOSEN 2 114TURN
A
MOVE THE
\ &&&EN (21114
FASTENEh.4 HANDLES OUT
Figure 4. 2510) Removing the
be r
'0
LOOSEN (2)1/4
TURN
Figure 5. (2515) Removing the Right Side
Cover
7/92
Installation 6-14 25101251 5
