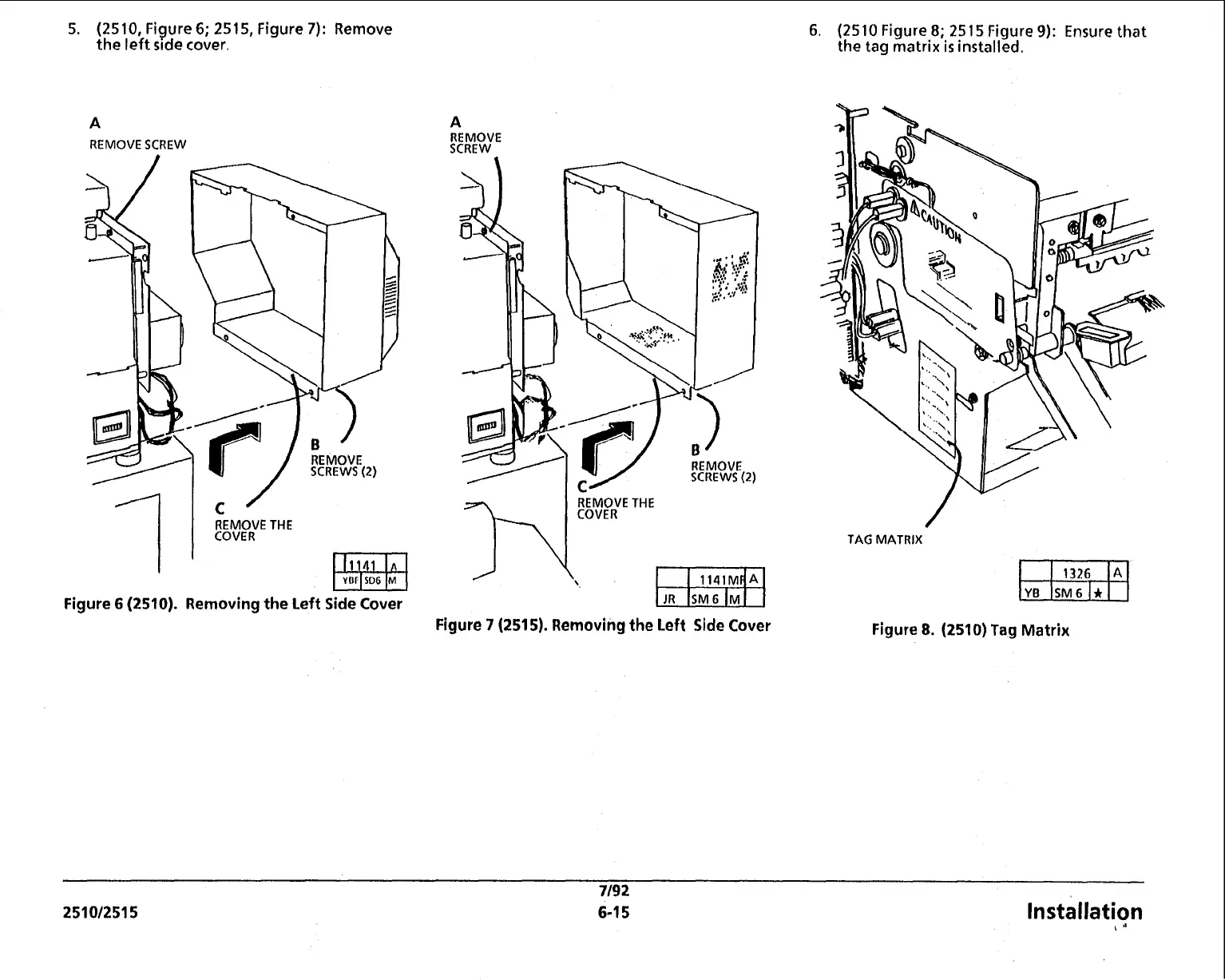

5. (2510, Figure
6;
2515, Figure
7):
Remove
the left s~de cover.
6.
(2510 Figure
8;
2515 Figure
9):
Ensure that
the tag matrix is installed.
A
REMOVE SCREW
REMOVE THE
COVER
I
Figure
6
(2510). Removing the Left Side Cover
A
REMOVE
SCREW
REMOVE THE
COVER
Figure
7
(2515). Removing the Left Side Cover
TAG MATRIX
Figure
8.
(2510) Tag Matrix
7/92
251012515
6-1
5
Installation
