18.
(Figure
16):
Check the position of the
pressure plate.
19.
Reinstall the retaining bar.
20.
Reinstall the fabric guide.
J
A
ENSURE THAT THE PRESSURE PLATE
IS OVER THE PINS ON BOTH SIDES
\
PRESSURE PLATE
\
MEDIA GUIDE
(251
5
ONLY)

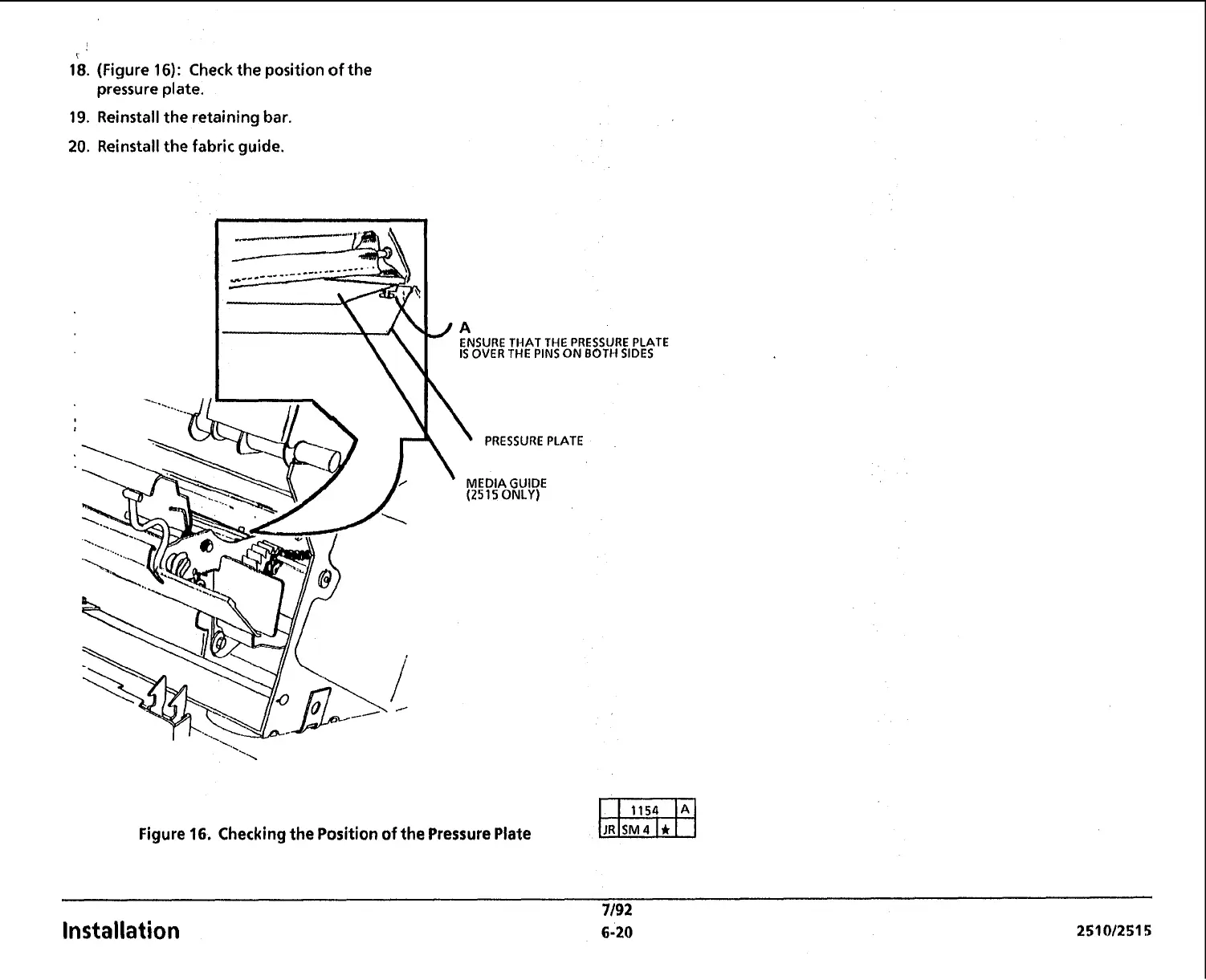

Figure
16.
Checking the Position of the Pressure Plate
7/92
Installation
6-20
2510l2515
