Xerox 2515

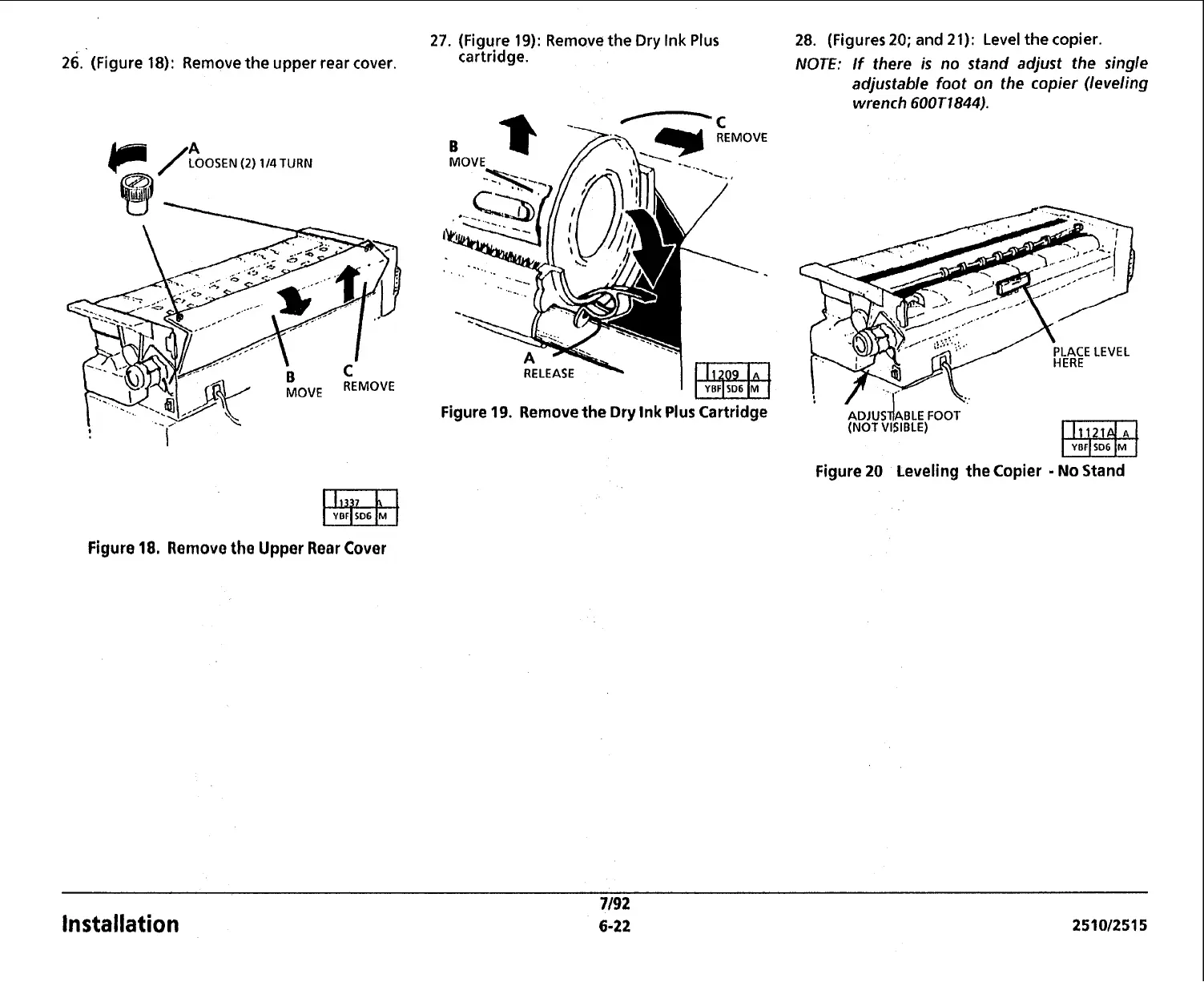

26. (Figure 18): Remove the upper rear cover.
B
C
MOVE
.. /'
I
Figure 18. Remove the Upper Rear Cover
27. (Figure
19): Remove the Dry Ink Plus
cartridge.
1111
Figure 19. Remove the Dry Ink Plus Cartridge
28. (Figures 20; and 21): Level the copier.
NOTE: If there is no stand adjust the single
adjustable foot on the copier (leveling
wrench 600T1844).
ADJUS~ABLE FOOT
(NOT VISIBLE)
I VIIFISD~ IM 1
Figure 20 Leveling the Copier - No Stand
7/92
Installation 6-22 2510~2515
