Note

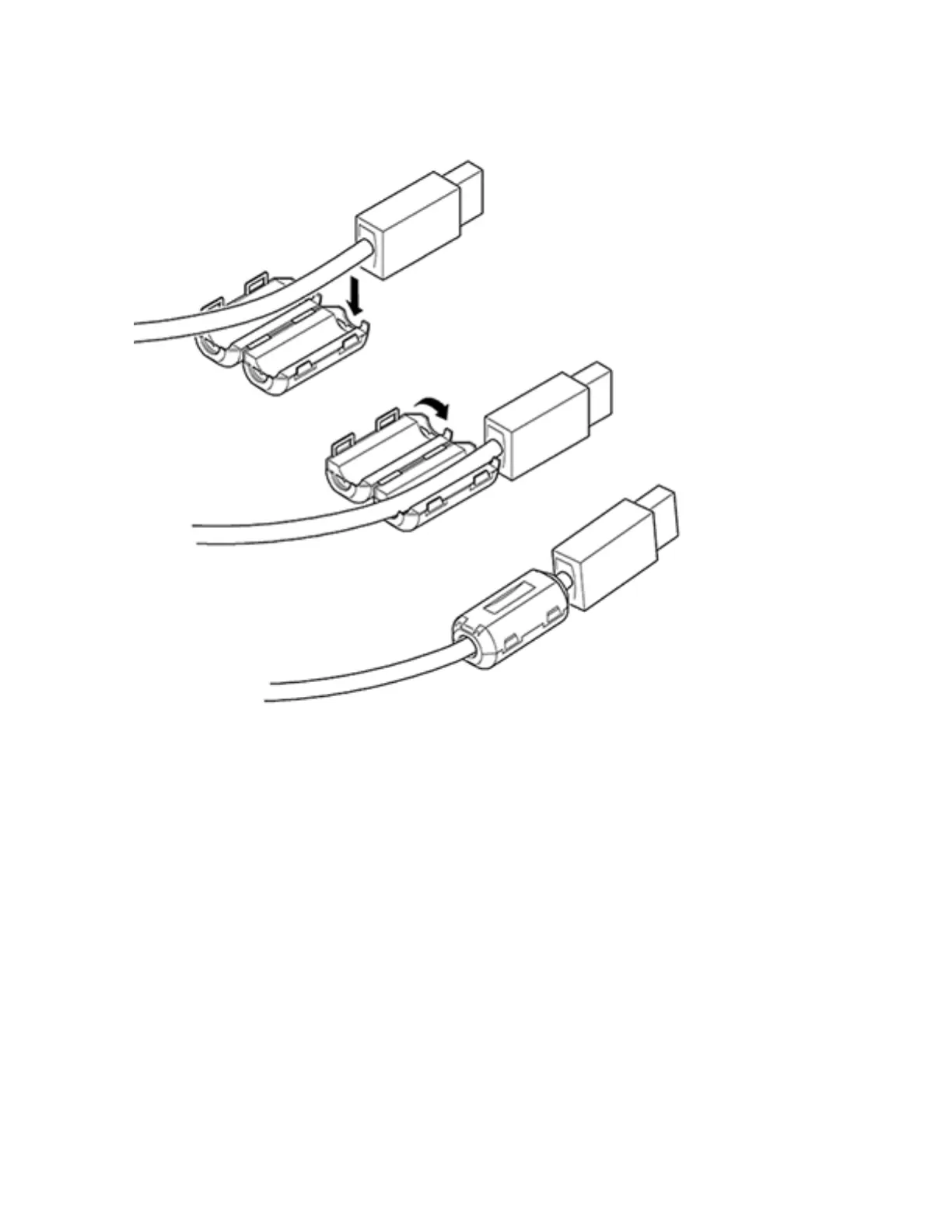

Clip the ferrite bead onto the cable directly behind the connector.
4. Attach the fasteners to the card reader device.
Fasteners are provided to secure the card reader to the Xerox
®
device.
a. Peel back the fastener backing strip.
b. Position the fastener on the under-side of the card reader, as shown.
Xerox
®
AltaLink
®
Series3-4
Smart Card Installation and Configuration Guide
Installation
