Parts of the Printer
This section includes:
• Front Right View ................................................................................................................................................................... 18
• Right Side View ..................................................................................................................................................................... 19
• Rear View ................................................................................................................................................................................. 19
• Control Panel.......................................................................................................................................................................... 20

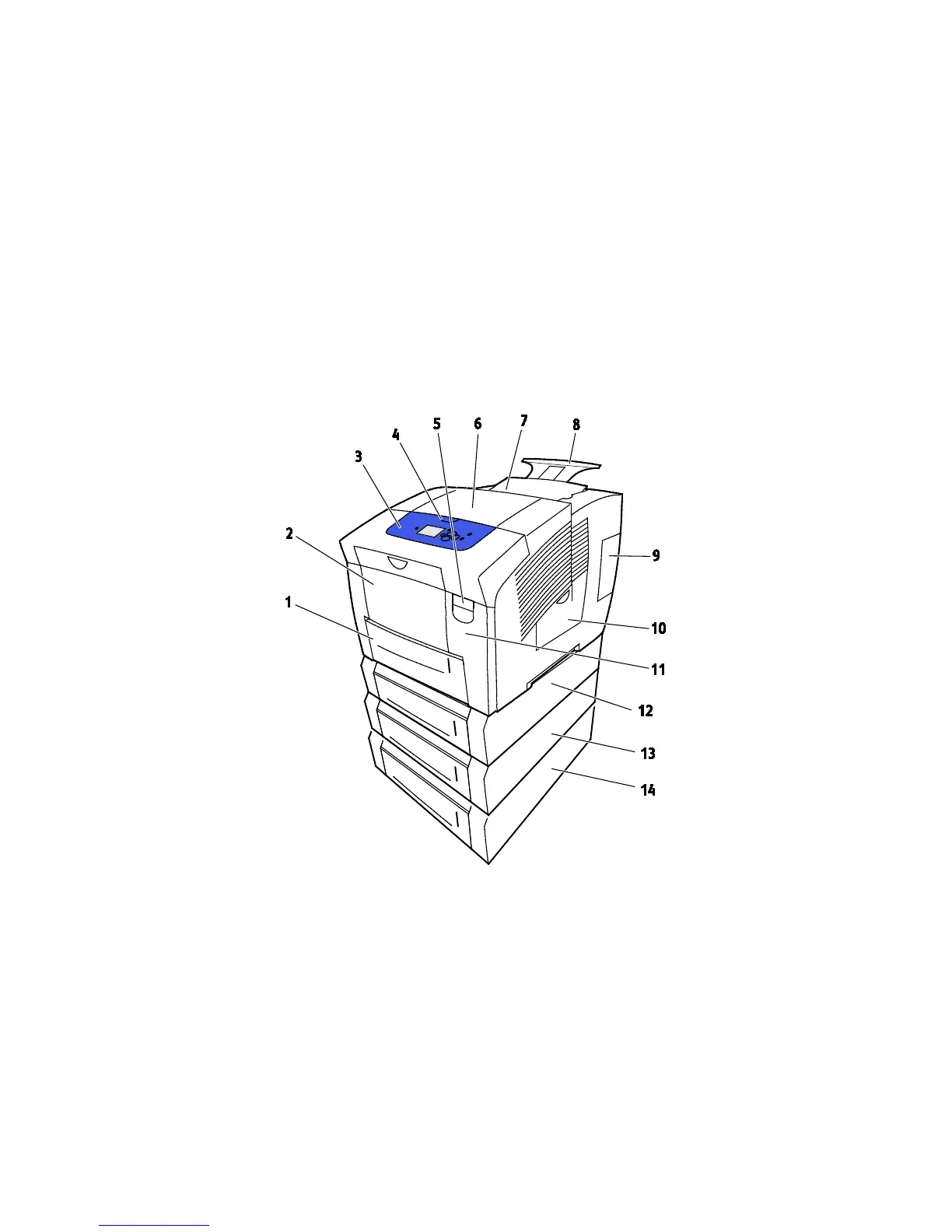

Front Right View
1. Tray 2 with 525-sheet capacity
2. Tray 1, Multi-Purpose Tray (MPT) with 100-sheet capacity.
3. Control Panel
4. Handle for Door B
5. Door A Release Lever
6. Exit Door B
7. Door C for Ink Loading
8. Legal/A4 Output Tray Extension
9. Interface (I/O) Door E
10. Maintenance Door D
11. Front Door A
12. Tray 3, Optional 525-Sheet Feeder
13. Tray 4, Optional 525-Sheet Feeder
14. Tray 5, Optional 525-Sheet Feeder
