Xerox DocuMate 152 User Manual

Scanning with the WIA Interface
100 DocuMate 152 Scanner User’s Guide

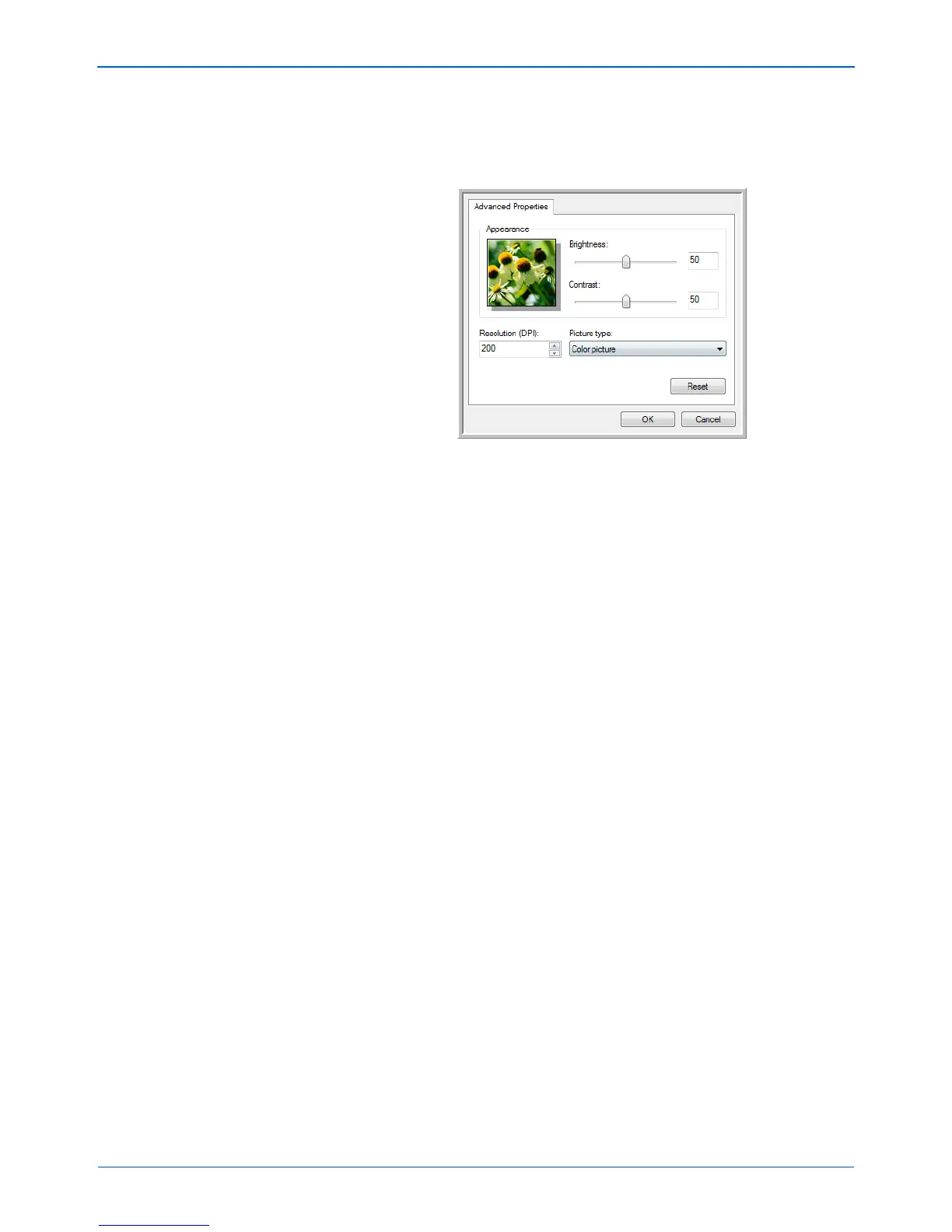

1. On the scan window, click Adjust the quality of the scanned
picture.
The Advanced Properties dialog box opens.
2. Select the options for scanning.
Brightness and Contrast—Drag the sliders to the right or left
to adjust the brightness and contrast of the scanned image.
The Contrast setting does not apply to the setting Black and
White picture or text.
Resolution (DPI)—Click the menu arrow and choose the dots
per inch (dpi) of the resolution. The maximum resolution is 600
dpi; the minimum is 50 dpi. The higher the dpi setting, the
sharper and clearer the scanned image. However, higher dpi
settings take longer to scan and produce larger files for the
scanned images.
Picture type—Click the menu arrow and choose the most
appropriate type for the item you’re scanning.
3. Click OK.
The Custom Settings button is now set to scan with the options
you selected.
If you want to reset the settings and start over, click Reset.

Xerox DocuMate 152 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	65536
Input color depth	24 bit
Maximum scan size	216 x 356 mm
Optical scanning resolution	600 x 1200 DPI
Flatbed scan speed (b/w, A4)	0.25 sec/page
Scanner type	Sheet-fed scanner
Product color	Gray
Sensor type	CCD
Daily duty cycle (max)	30000 pages
ISO A-series sizes (A0...A9)	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum RAM	512 MB
Minimum storage drive space	350 MB
Power supply type	-
Power consumption (standby)	6 W
Power consumption (typical)	30 W
Operating temperature (T-T)	10 - 35 °C
Package width	251.459 mm
Package height	253.999 mm
Package weight	4808.1 g

Weight and Dimensions

Depth	160 mm
Width	309 mm
Height	141 mm
Weight	2700 g
