Scanning
62 DocuMate 152 Scanner User’s Guide
To Scan Using Configure Before Scan
1. Put the documents in the scanner’s ADF tray.
2. Click on the button you set to use the Configure Before Scan
option.
In the example shown on the previous page, the scanning
option 9 has been set to use Configure Before Scan.

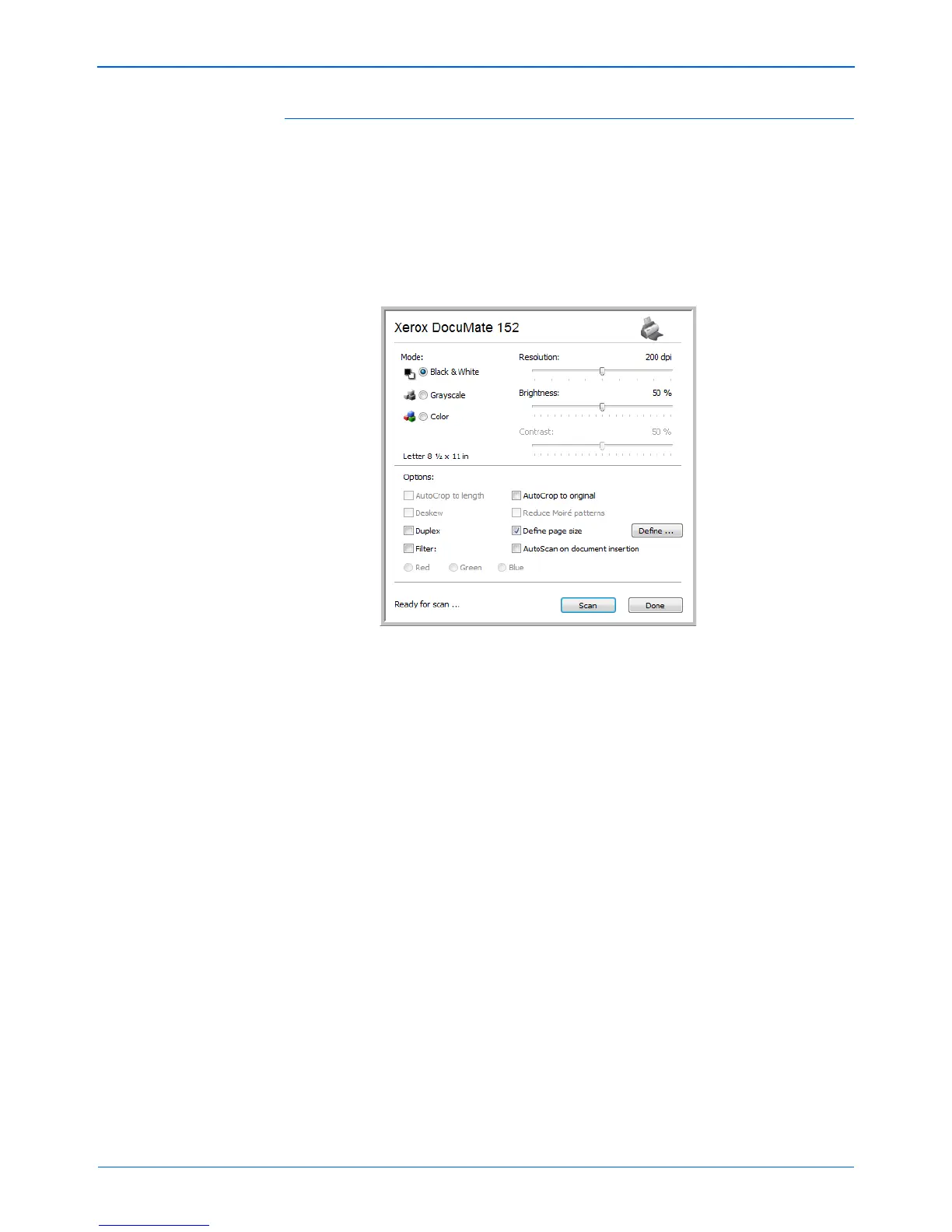

3. The TWAIN interface will open.
4. Choose the Options applicable to your scan batch.
5. Click on the Scan button in the TWAIN interface.
6. Your documents will be scanned and sent to the Destination
Application specified in the One Touch 4.0 Properties.
In the example shown on the previous page, the Destination
Application is Microsoft Paint.
The TWAIN interface lists the scanning options available with your
Xerox DocuMate 152 scanner. Please see “Scanning with the
TWAIN Interface from PaperPort” on page 83.

Xerox DocuMate 152 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	65536
Input color depth	24 bit
Maximum scan size	216 x 356 mm
Optical scanning resolution	600 x 1200 DPI
Flatbed scan speed (b/w, A4)	0.25 sec/page
Scanner type	Sheet-fed scanner
Product color	Gray
Sensor type	CCD
Daily duty cycle (max)	30000 pages
ISO A-series sizes (A0...A9)	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum RAM	512 MB
Minimum storage drive space	350 MB
Power supply type	-
Power consumption (standby)	6 W
Power consumption (typical)	30 W
Operating temperature (T-T)	10 - 35 °C
Package width	251.459 mm
Package height	253.999 mm
Package weight	4808.1 g

Weight and Dimensions

Depth	160 mm
Width	309 mm
Height	141 mm
Weight	2700 g
