Xerox DocuMate 152 User Manual

DocuMate 152 Scanner User’s Guide 73
Scanning
7. Now on the One Touch Button Panel, click Button 8 (Custom)
(or if you used another button, click it).
When scanning is finished, the document is first converted to
editable text using the OCR process, then is converted into an

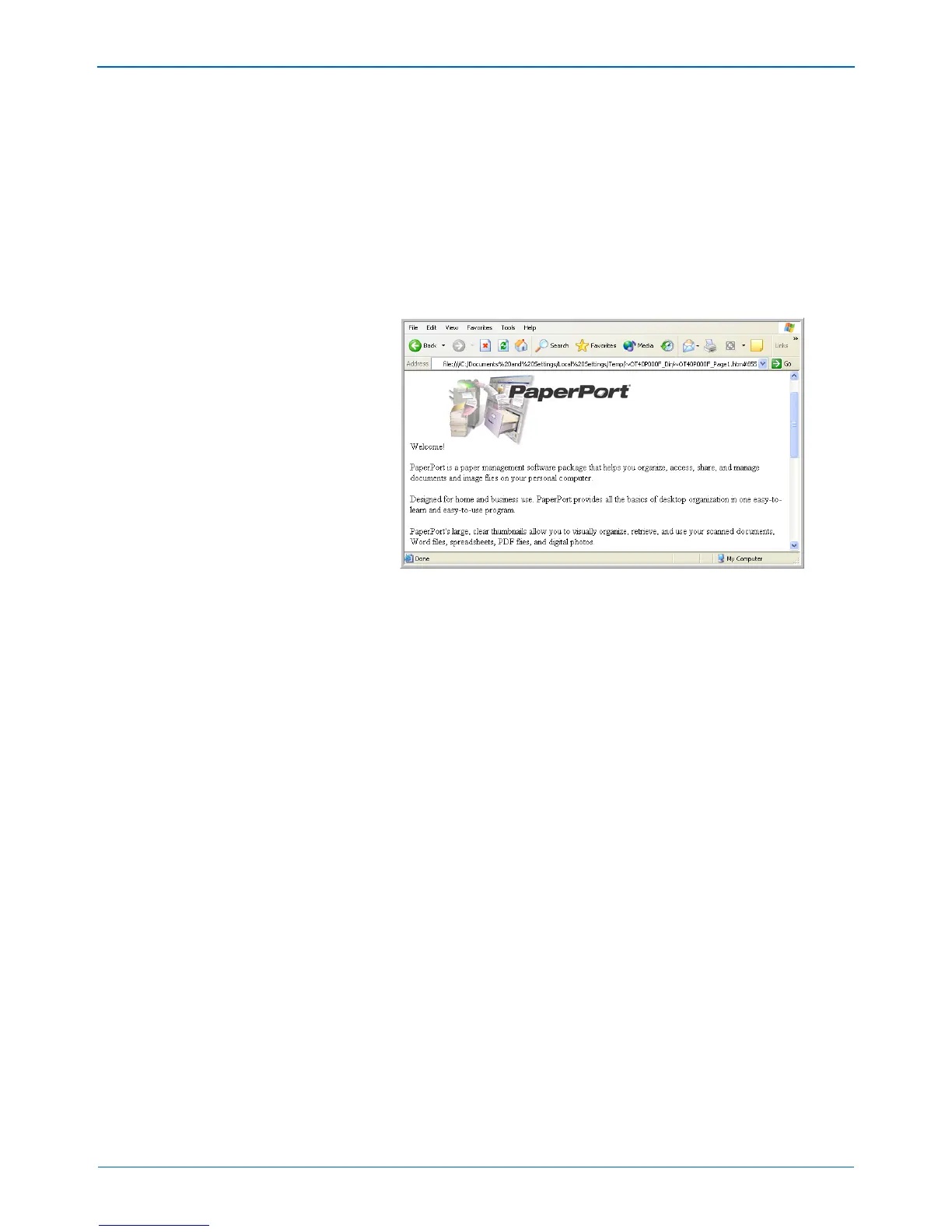

HTML format. Microsoft Internet Explorer then opens showing
your converted page.
8. Choose Save As from the Internet Explorer File menu, give the
page a name, and save it in the location you use for your web
page files.
You may also want to write down the address shown in the
Address bar to make sure you’ll know where to find your new
HTML page later on.
9. You can now use Microsoft Internet Explorer or other
application to post the document to your web page as you
would any other HTML page.
NOTE: Depending on the complexity of the document, its
conversion to the HTML format may take a few moments.

Xerox DocuMate 152 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	65536
Input color depth	24 bit
Maximum scan size	216 x 356 mm
Optical scanning resolution	600 x 1200 DPI
Flatbed scan speed (b/w, A4)	0.25 sec/page
Scanner type	Sheet-fed scanner
Product color	Gray
Sensor type	CCD
Daily duty cycle (max)	30000 pages
ISO A-series sizes (A0...A9)	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum RAM	512 MB
Minimum storage drive space	350 MB
Power supply type	-
Power consumption (standby)	6 W
Power consumption (typical)	30 W
Operating temperature (T-T)	10 - 35 °C
Package width	251.459 mm
Package height	253.999 mm
Package weight	4808.1 g

Weight and Dimensions

Depth	160 mm
Width	309 mm
Height	141 mm
Weight	2700 g
