Xerox DocuMate 152 User Manual

Scanning with the TWAIN Interface from PaperPort
94 DocuMate 152 Scanner User’s Guide

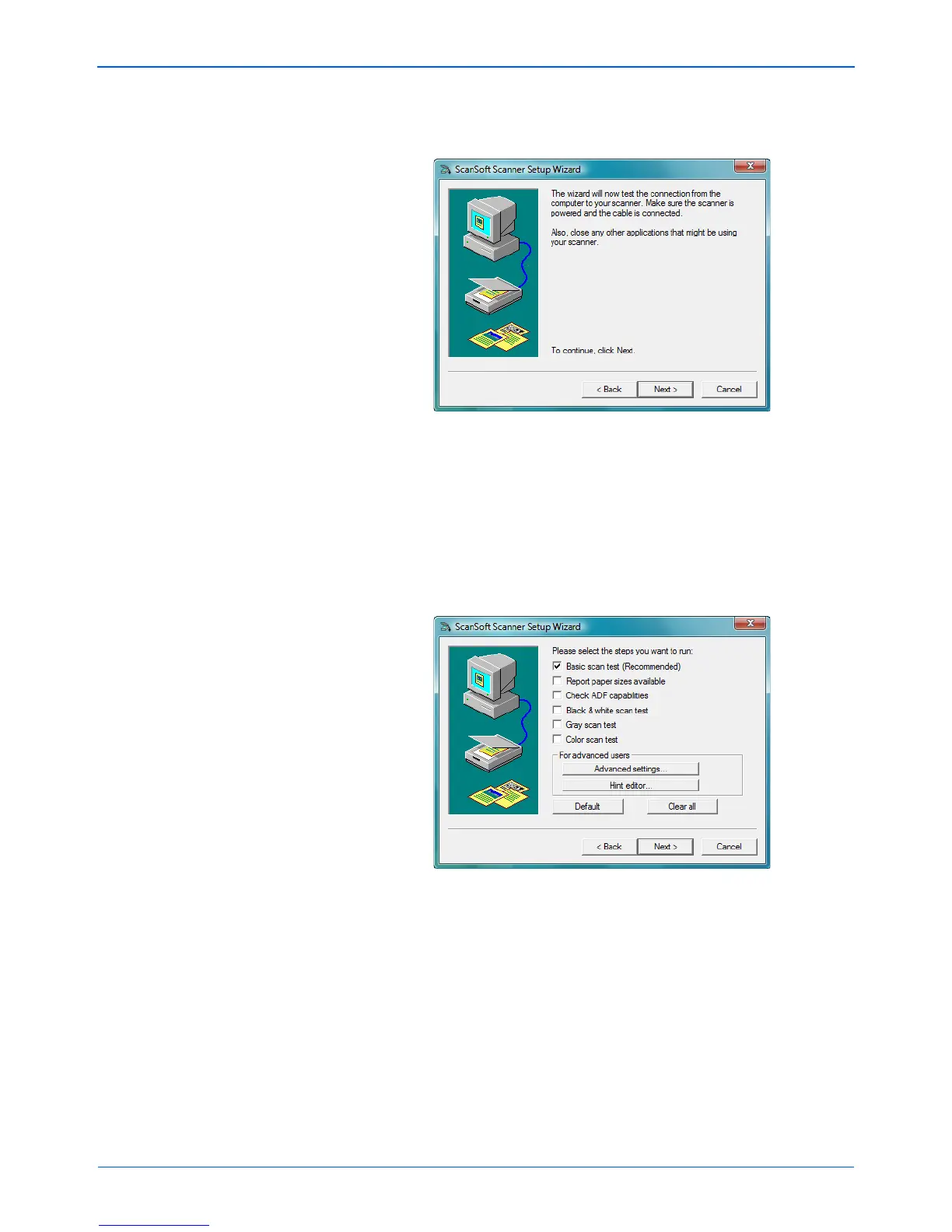

The next window is for checking the connection between your
scanner and the computer.
5. Click Next.
After the Setup Wizard checks the connections, the next
window is displayed. It has a series of setup options, but only
the Basic scan test is necessary because your scanner was
already tested and calibrated when you installed the One
Touch 4.0 software
6. If other tests are checked, click in their boxes to uncheck them.
7. Click Next.

Xerox DocuMate 152 Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	65536
Input color depth	24 bit
Maximum scan size	216 x 356 mm
Optical scanning resolution	600 x 1200 DPI
Flatbed scan speed (b/w, A4)	0.25 sec/page
Scanner type	Sheet-fed scanner
Product color	Gray
Sensor type	CCD
Daily duty cycle (max)	30000 pages
ISO A-series sizes (A0...A9)	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum RAM	512 MB
Minimum storage drive space	350 MB
Power supply type	-
Power consumption (standby)	6 W
Power consumption (typical)	30 W
Operating temperature (T-T)	10 - 35 °C
Package width	251.459 mm
Package height	253.999 mm
Package weight	4808.1 g

Weight and Dimensions

Depth	160 mm
Width	309 mm
Height	141 mm
Weight	2700 g
