Xerox DocuMate 4830 User Manual

Xerox DocuMate 4830
User’s Guide
103

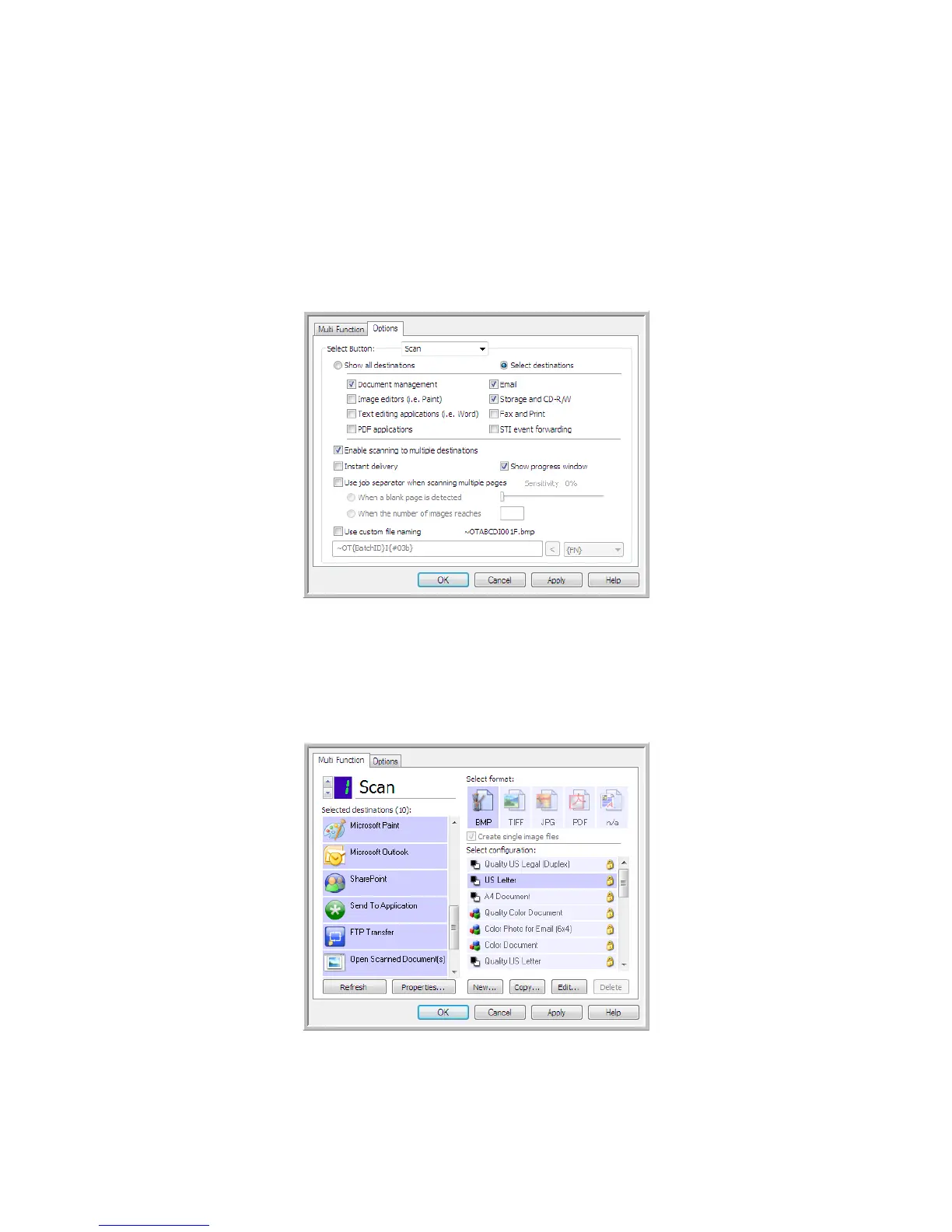

Scanning to Multiple Destinations
Scanning to multiple destinations works the same as when scanning to a single destination, One Touch simply
distributes the final scan to several destinations. This option is enabled separately for each One Touch button.
1. Open the One Touch Properties window and click on the Options tab.
2. Select Enable scanning to multiple destinations, then click back on the configuration tab.
3. Click each destination where you want to send the scanned image in the Selected destinations (#) list. Click
again to deselect a destination.
As you click on each destination, the Selected destinations number will count so you know how many
applications are selected to receive the image.

Xerox DocuMate 4830 Specifications

General

Film scanning	-
Color scanning	Yes
Maximum scan size	297 x 2997 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	50 ppm
ADF scan speed (color, A4)	30 ppm
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	100 ipm
Duplex ADF scan speed (color, A4)	60 ipm
Scanner type	Flatbed & ADF scanner
Product color	Blue, Grey
Built-in display	No
Sensor type	CIS
Scan drivers	ISIS, TWAIN, WIA
Daily duty cycle (max)	3000 pages
Auto document feeder (ADF) input capacity	75 sheets
Maximum ISO A-series paper size	A3
Auto Document Feeder (ADF) media weight	75 - 80 g/m²
USB version	2.0
Standard interfaces	USB 2.0
Input voltage	100-240 V
Power supply type	AC
Power consumption (standby)	15 W
Power consumption (typical)	30 W
Minimum RAM	2048 MB
Minimum storage drive space	350 MB
Cables included	AC, USB
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	499 mm
Width	581 mm
Height	194 mm
Weight	12000 g
