Xerox DocuMate 4830 User Manual

Xerox DocuMate 4830
User’s Guide
175
Clearing Paper Jams
If your scanner stops scanning due to a paper jam in the Automatic Document Feeder, a warning dialog box opens
after a few moments.

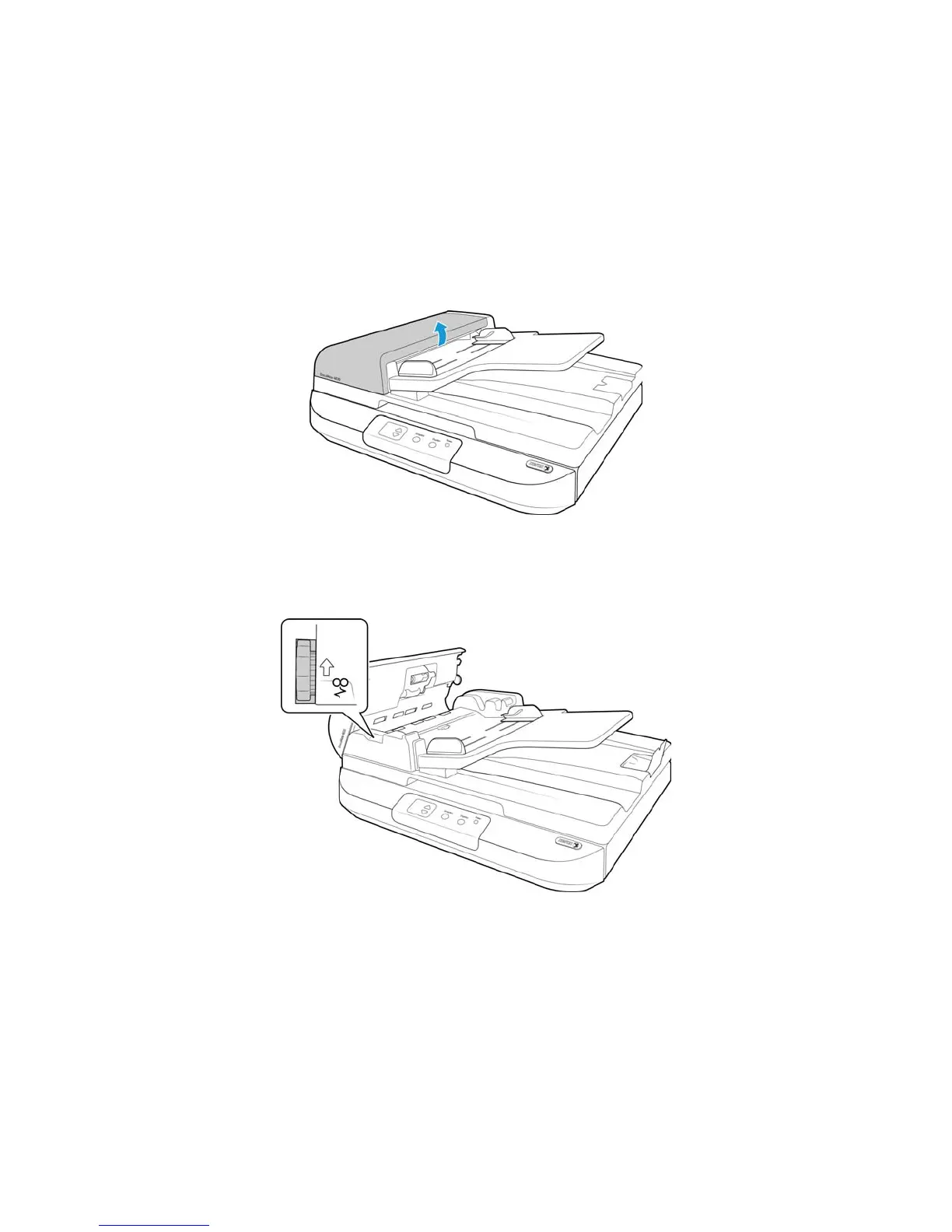

1. Pull open the Automatic Document Feeder cover.
• If the page is jammed at the start of the paper path carefully pull it out of the scanner.
• If the page is jammed farther in the ADF, use the manual feed wheel to feed the jammed page through
the ADF. And then pull out the jammed page from under the paper input tray.
2. Close the Automatic Document Feeder cover when you are finished. Carefully press down on the ADF cover
until it locks in place with a “click”.
To reduce the number of paper jams, smooth and straighten paper before scanning, adjust the guides to the paper
size, and insert the paper evenly into the ADF.

Xerox DocuMate 4830 Specifications

General

Film scanning	-
Color scanning	Yes
Maximum scan size	297 x 2997 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	50 ppm
ADF scan speed (color, A4)	30 ppm
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	100 ipm
Duplex ADF scan speed (color, A4)	60 ipm
Scanner type	Flatbed & ADF scanner
Product color	Blue, Grey
Built-in display	No
Sensor type	CIS
Scan drivers	ISIS, TWAIN, WIA
Daily duty cycle (max)	3000 pages
Auto document feeder (ADF) input capacity	75 sheets
Maximum ISO A-series paper size	A3
Auto Document Feeder (ADF) media weight	75 - 80 g/m²
USB version	2.0
Standard interfaces	USB 2.0
Input voltage	100-240 V
Power supply type	AC
Power consumption (standby)	15 W
Power consumption (typical)	30 W
Minimum RAM	2048 MB
Minimum storage drive space	350 MB
Cables included	AC, USB
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	499 mm
Width	581 mm
Height	194 mm
Weight	12000 g
