Xerox
®
DocuMate
®
6460 / 6480 Maintenance
38 User Guide

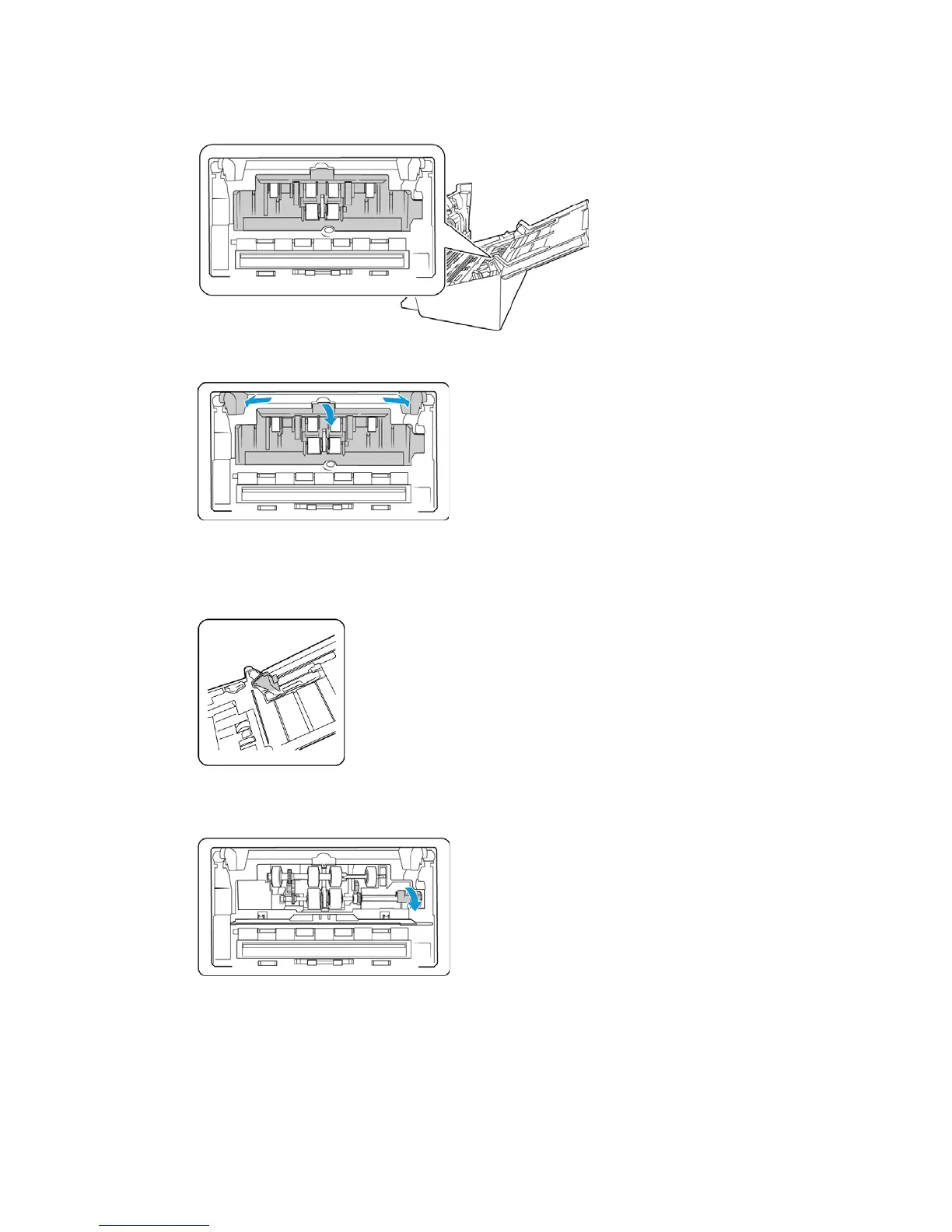

2. Locate the roller cover in the body of the scanner.
3. Move the paper guides to the side and then pull the feed roller cover away from the scanner.
Note: if the paper guides are in front of the roller cover when you open it, they will
automatically release from the scanner body. If this happens, follow the instructions on
page 32 for resetting the guides in the scanner.
4. The lower roller is held in place with a lock tab that rotates to lock and unlock it. To unlock the
tab, rotate it until the small lock flange is completely free.
