Xerox® Phaser® 3052/3260 Service Manual
PL 4.6
Parts Lists

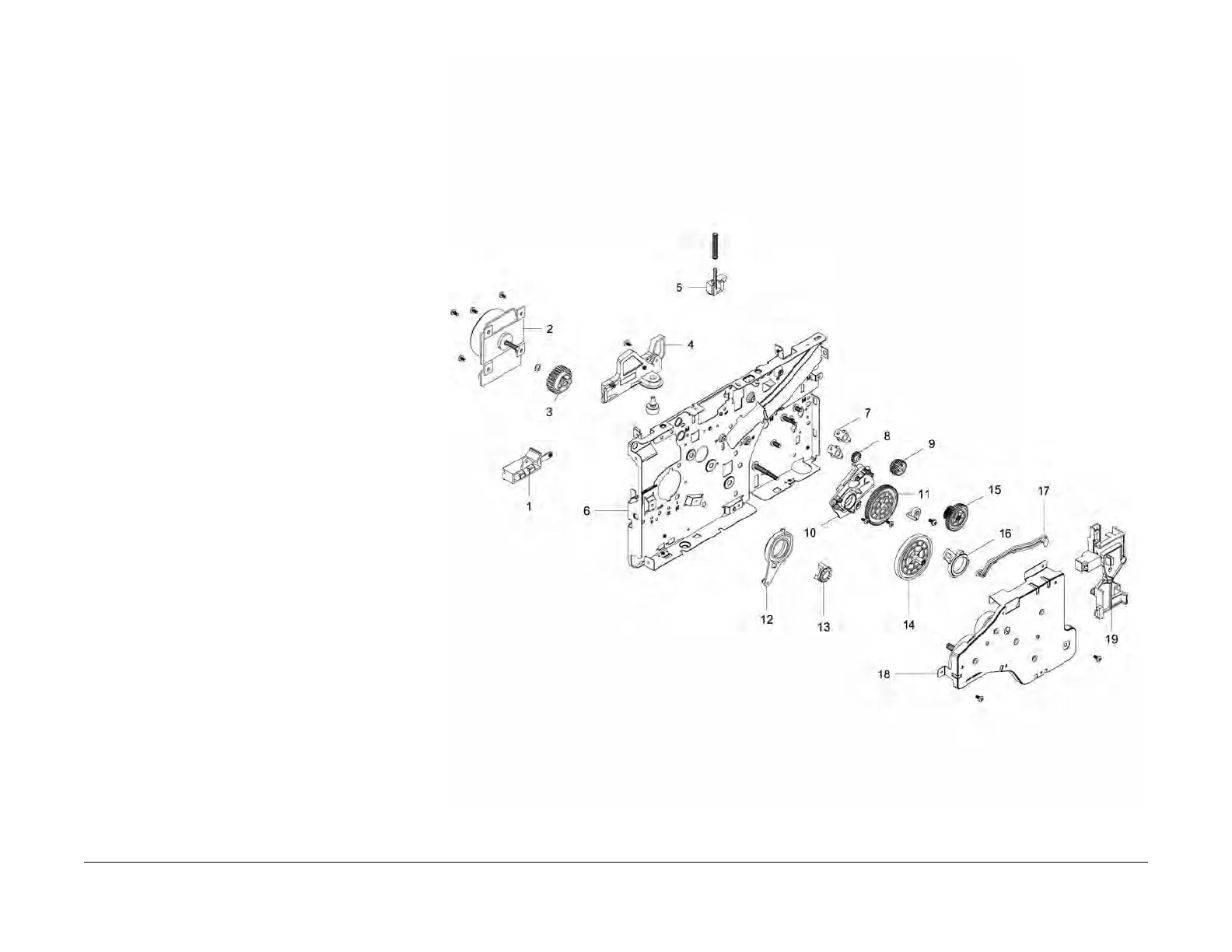

PL 4.6 Left Main Frame
Item Part Description
1 – Left Rear Guide
2 127N07865 Main Drive Motor
3 – Fuser Drive Out Gear
4 – Knock Up Left Guide
5 – Left Developer Guide Plate
6 – Left Frame
7 – Shaft Bushing
8 007N01802 Paper Feed Idler Gear
9 – Idler Gear
10 – Band
11 – Idler Gear
12 – Fuser Locking Lever
13 – Hub Clutch Gear
14 – Feed Gear
15 – Feed Gear 2
16 – Cam Coupler
17 – Coupling Lever
18 007N01803 Main Drive Unit
19 – Harness Cover
