Xerox® Phaser® 3052/3260 Service Manual
PL 6.1
Parts Lists

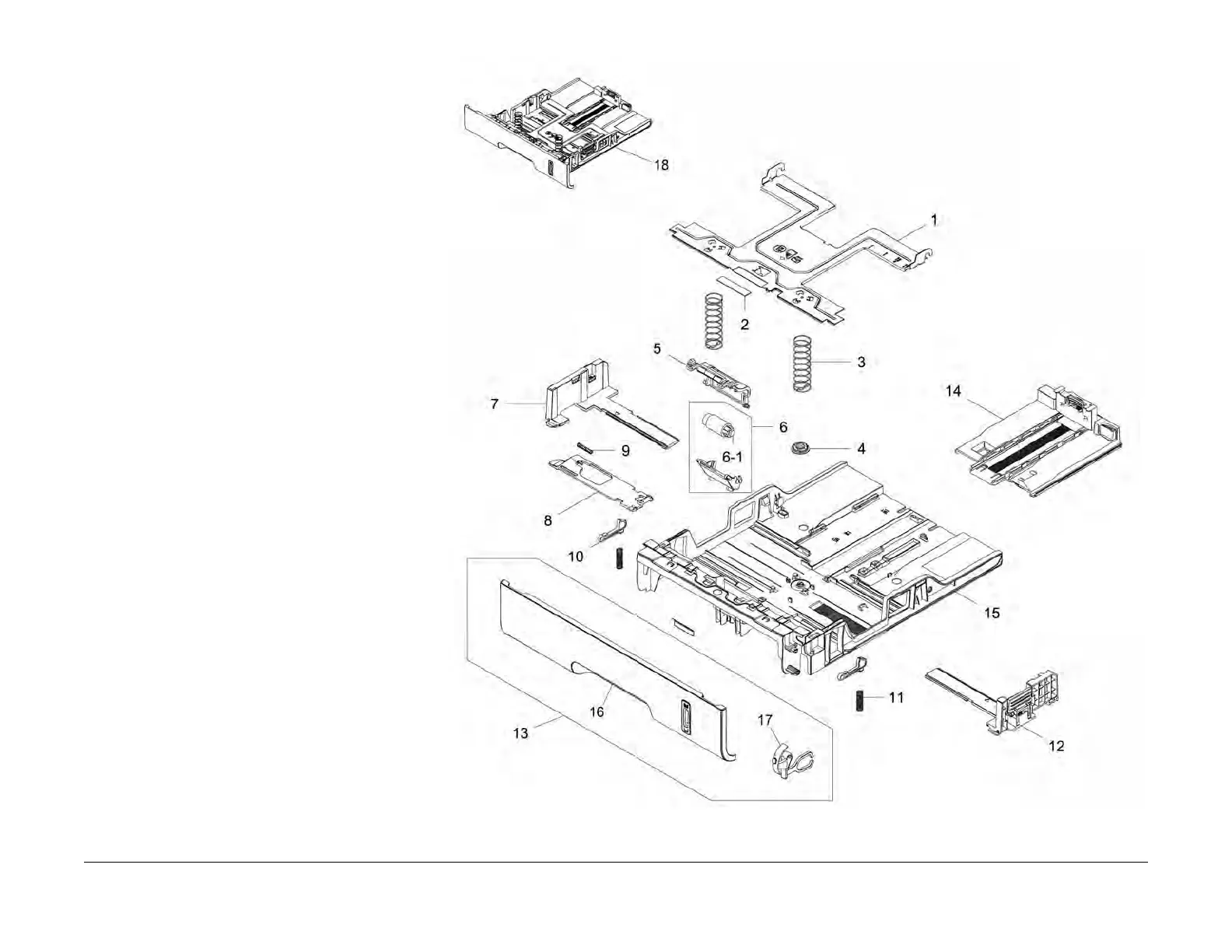

PL 6.1 Paper Tray
Item Part Description
1 – Lift Plate
2– Pad
3– Spring
4 – Pinion Gear
5 – Retard Roll Cover
6 050N00683 Retard Roll Assembly
7 – Left Paper Guide
8 – Left Plate
9– Spring
10 – Paper Tray Latch
11 – Spring
12 – Right Paper Guide
13 – Paper Tray Handle
14 – Paper Tray Rear Guide
15 – Paper Tray Frame
16 – Paper Tray Handle
17 – Paper Indicator
18 050N00682 Paper Tray

Xerox Phaser 3052 Specifications

General

Print Technology	Laser
First Page Out Time	As fast as 8.5 seconds
Maximum Paper Size	8.5 x 14 in.
Connectivity	USB 2.0
Media Sizes Supported	Letter, Legal, Executive, Folio, Oficio, Statement
Print Languages	PCL6, PostScript 3
Operating System Compatibility	Windows, Mac, Linux
