4-34
Xerox® Phaser® 3052/3260 Service Manual
REP 1.24
Repairs
REP 1.24 Feed Idler Gear
Parts List on PL 4.6
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Left Side Cover (REP 1.2).
3. Remove the Feed Clutch and Drive Gear (Figure 1):
a. Remove the E-ring and Washer from the Feeder Clutch.
b. Remove the Feeder Clutch and Drive Gear.

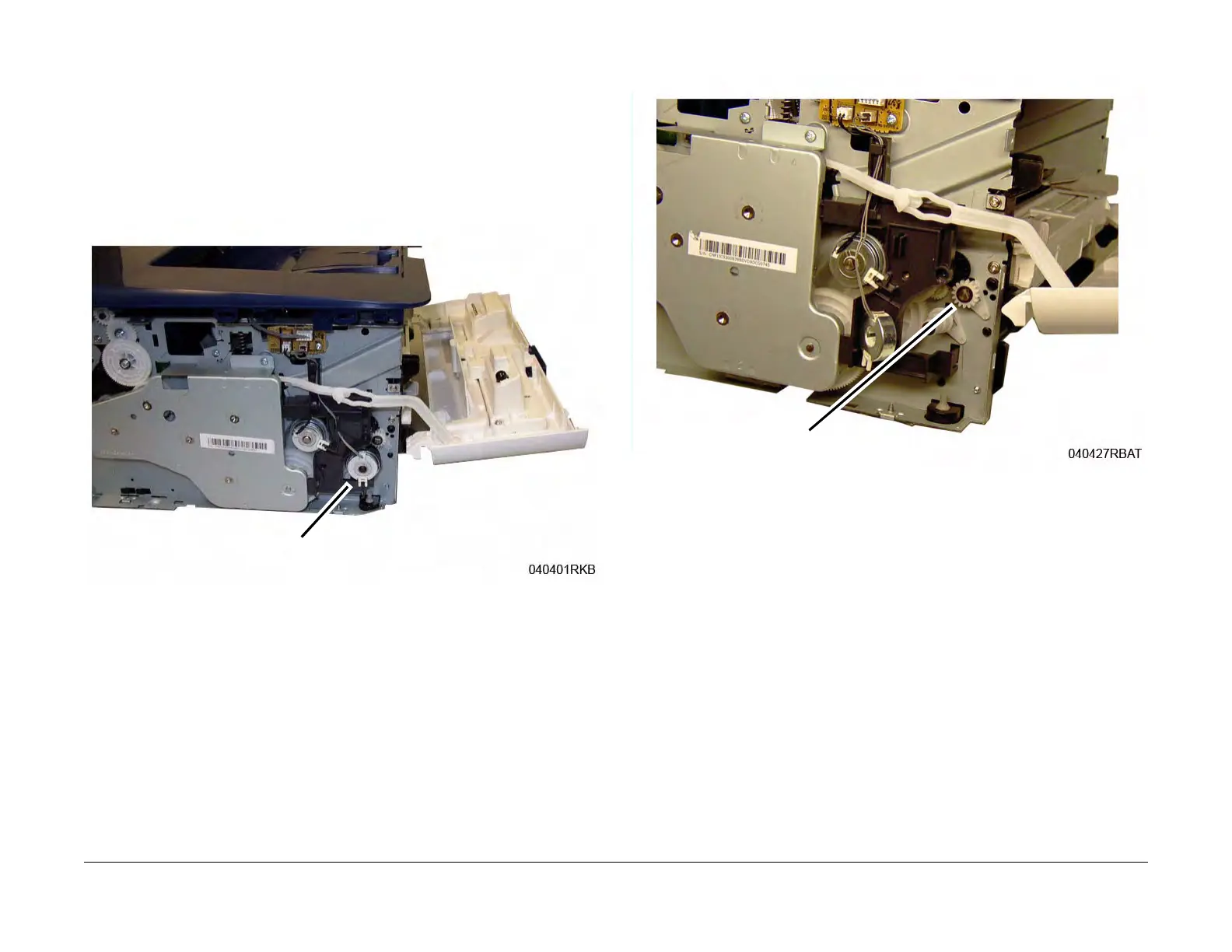

Figure 1 Feed Clutch Removal
4. Remove the Snap Ring and Idler Gear (Figure 2).
Figure 2 Feed Idler Gear
Replacement
Install the components in the reverse of removal.
Feed Clutch
Feed Idler Gear

Xerox Phaser 3052 Specifications

General

Print Technology	Laser
First Page Out Time	As fast as 8.5 seconds
Maximum Paper Size	8.5 x 14 in.
Connectivity	USB 2.0
Media Sizes Supported	Letter, Legal, Executive, Folio, Oficio, Statement
Print Languages	PCL6, PostScript 3
Operating System Compatibility	Windows, Mac, Linux
