Xerox® Phaser® 3052/3260 Service Manual
REP 1.3, REP 1.4
Repairs
Figure 3 Top Cover Latch Hooks
Replacement
Install the components in the reverse of removal.
REP 1.4 Rear Cover
Parts List on PL 2.1
Removal
1. Remove the Left and Right Side Covers (REP 1.2).
2. Remove the Rear Cover Screws (4) (Figure 1).

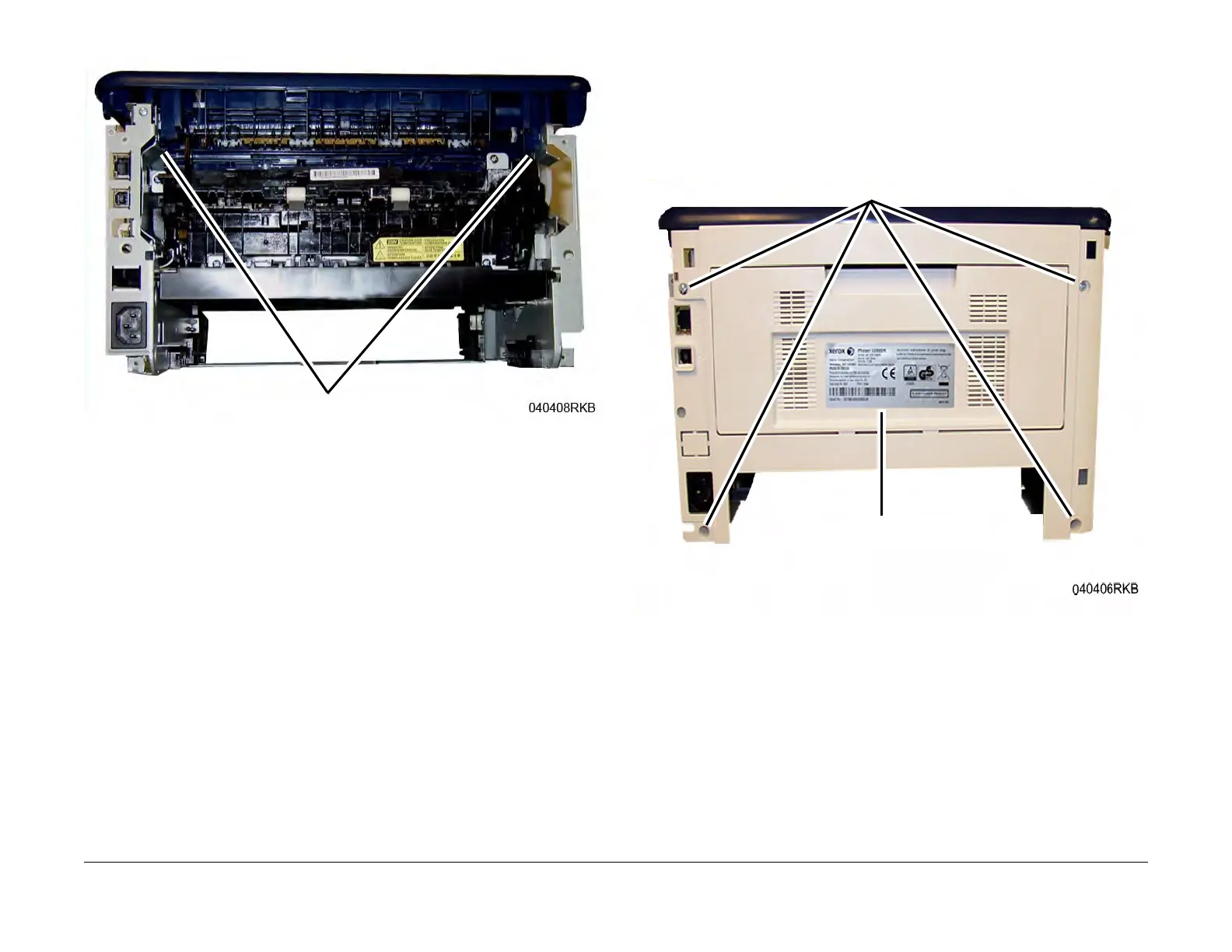

Figure 1 Rear Cover Screws and Data Plate Label
3. Open the Rear Cover and release the Support Arms on each side of the Rear Cover (Fig-
ure 2).
Latch Hooks
Screws
Screws
Data Plate Label
