June 2014
4-28
Xerox® Phaser® 3052/3260 Service Manual
REP 1.17, REP 1.18
Repairs

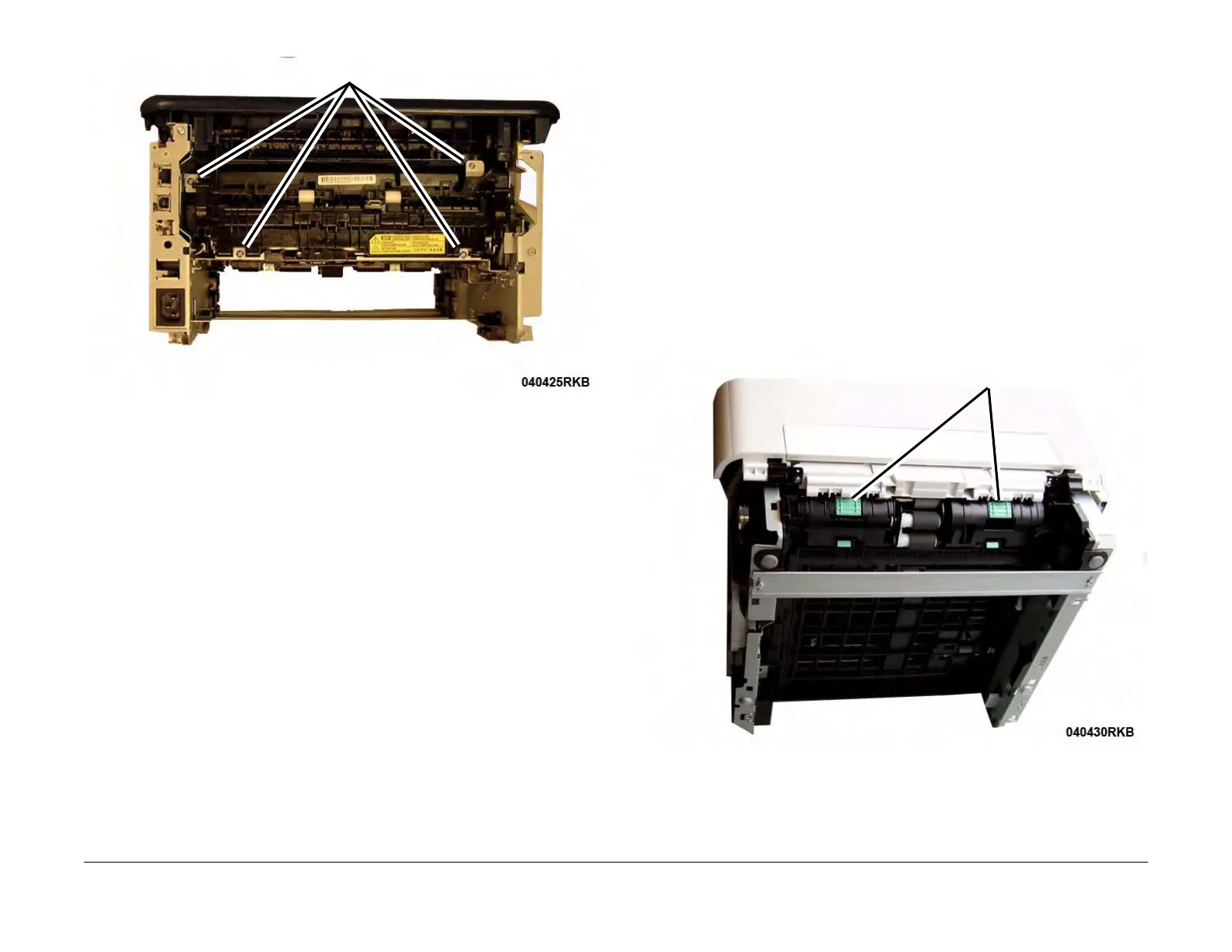

Figure 2 Fuser Screws (Rear View)
Replacement
NOTE: Tapered Plastic Screws and Round Machine Screws are used to hold the Fuser to the
frame. Make sure that the Plastic Screws go into plastic components and Machine Screws go
into the metal frame.
Install the components in the reverse of removal.
REP 1.18 Duplex Assembly
Parts List on PL 4.2
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Paper Cassette.
3. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Rear Cover (REP 1.4).
NOTE: The Rear Cover holds the Duplex Assembly Pivot in the frame cutout. With the
Rear Cover removed, the assembly will come out of the pivot when the front latches are
released.
4. Remove the Duplex Assembly:
a. From the front of the printer press the Duplex Assembly release tabs (2) (Figure 1).
b. From the rear of the printer slide the Duplex Assembly off the pivots to remove it
(Figure 2).
Figure 1 Duplex Assembly Release Tabs (Bottom View)
Screws
Release Tabs
To Next Page
