4-26
Xerox® Phaser® 3052/3260 Service Manual
REP 1.16
Repairs
REP 1.16 Transfer Roll
Parts List on PL 4.1
Removal
1. Open the Front Cover.
NOTE: Cover the Drum Cartridge with several sheets of paper to prevent it from being light
shocked.
2. Remove the Toner Cartridge and the Drum Cartridge.

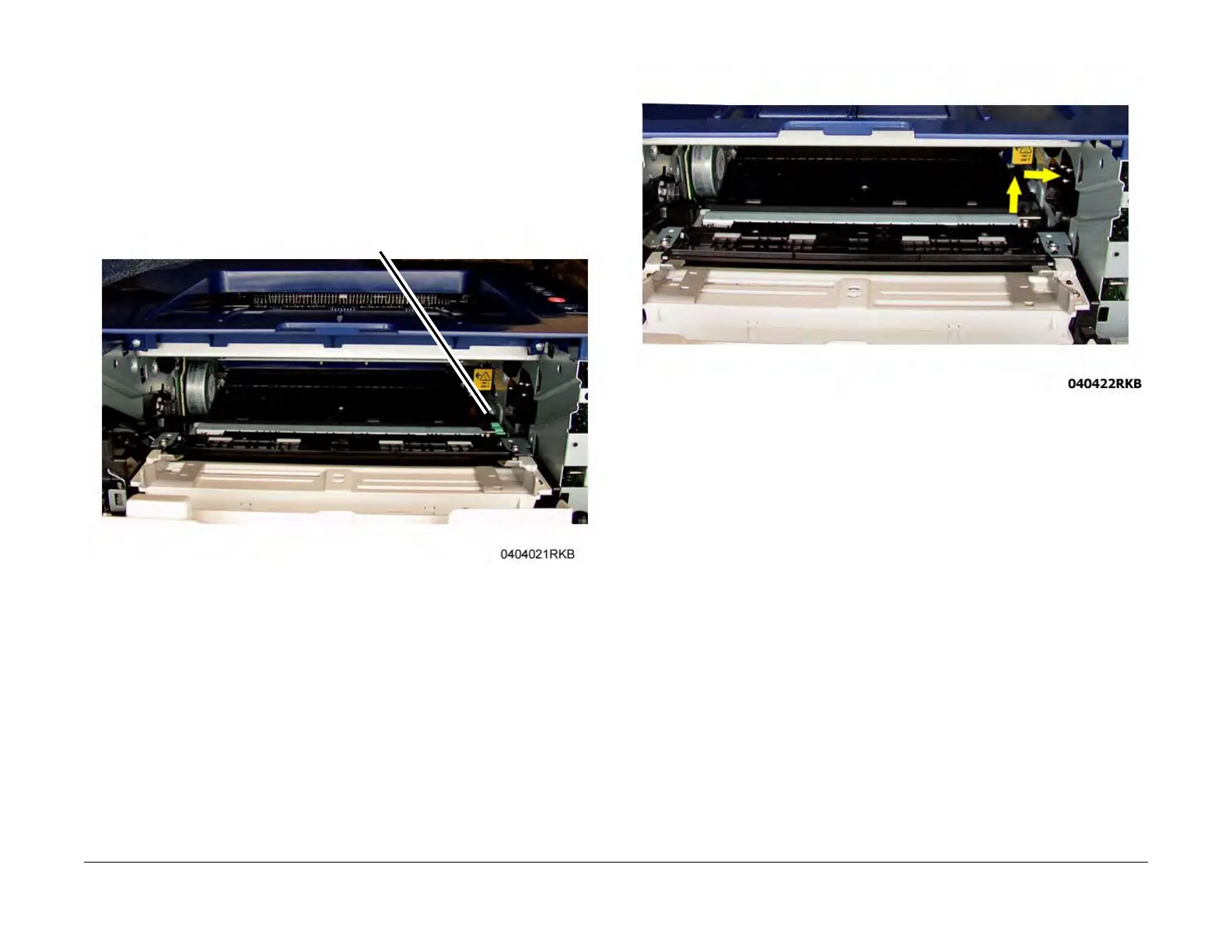

3. Remove (squeeze and lift) the Transfer Roll Retainer Clip (Figure 1).
Figure 1 Transfer Roll Retainer Clip
4. Remove the Transfer Roll (Figure):
a. Lift the right end of the Transfer Roll and slide the left end out of the bushing (Figure
2).
Figure 2 Removing the Transfer Roll
Replacement
Install the components in the reverse of removal.
Transfer Roll Clip

Xerox Phaser 3052 Specifications

General

Print Technology	Laser
First Page Out Time	As fast as 8.5 seconds
Maximum Paper Size	8.5 x 14 in.
Connectivity	USB 2.0
Media Sizes Supported	Letter, Legal, Executive, Folio, Oficio, Statement
Print Languages	PCL6, PostScript 3
Operating System Compatibility	Windows, Mac, Linux
