3052/3260 Printer Service Manual
BSDs
1
2
3
4
5
6
7-3
K L M N P R S T U

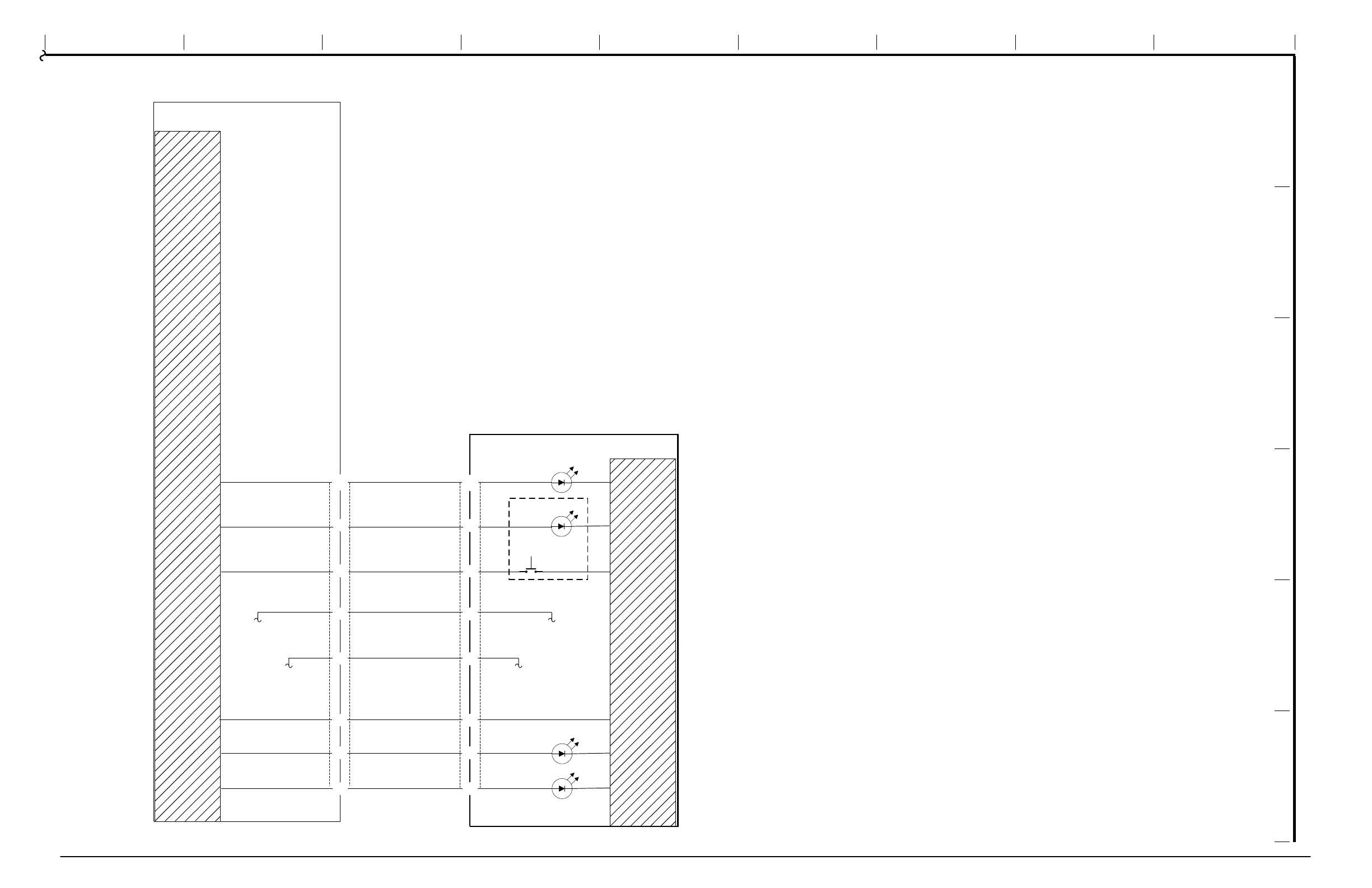

3.1B COMMUNICATIONS (2 of 2)
PL 1.1
MAIN PWB
PL 3.1
CONTROL PANEL PWB
DC COM
+5 VDC
5
P11J11
5
8
8
DC COM
+5 VDC
10
10
9
9
V BIN
POWER LED
7
7
POWER KEY
CNTRL PANEL RXD
RST CNTRL PANEL
11 11
CNTRL PANEL TXD
12 12
DC COM
+5 VDC
6
6

Xerox Phaser 3052 Specifications

General

Print Technology	Laser
First Page Out Time	As fast as 8.5 seconds
Maximum Paper Size	8.5 x 14 in.
Connectivity	USB 2.0
Media Sizes Supported	Letter, Legal, Executive, Folio, Oficio, Statement
Print Languages	PCL6, PostScript 3
Operating System Compatibility	Windows, Mac, Linux
