Xerox Phaser 3052

June 2014
4-4
Xerox® Phaser® 3052/3260 Service Manual
REP 1.1
Repairs
NOTE: A wide blade flat screwdriver can be used to help release the Front Cover Pivot.
5. Release the Front Cover Pivots (2) and remove the cover (Figure 3).

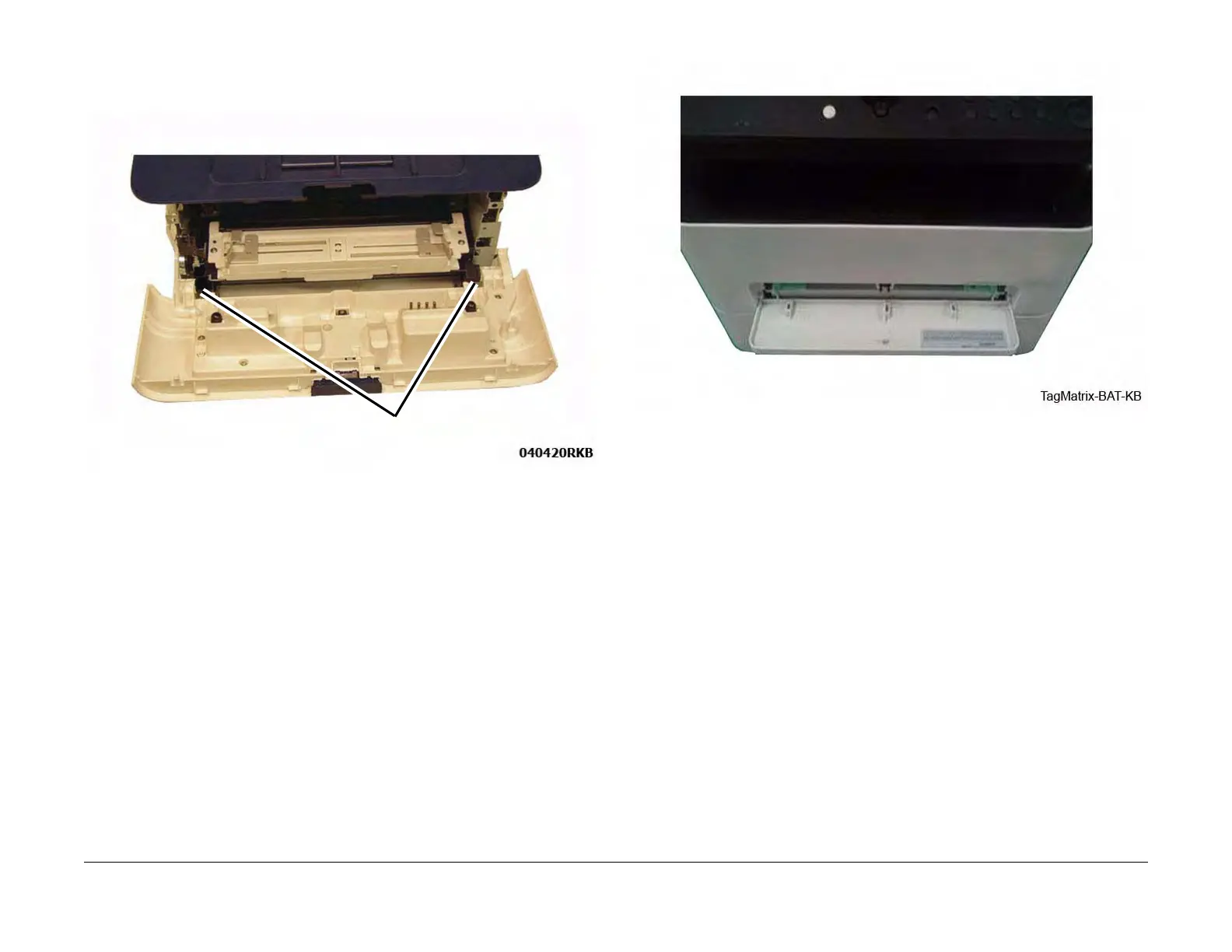

Figure 3 Front Cover Removal
6. IMPORTANT
Remove the Tag Matrix from the inside of the manual feed slot.
7. Place the Tag Matrix on the new Front Cover Assembly. Figure 4
Figure 4 Tag Matrix on new Front Cover Assembly
Replacement
Install the components in the reverse of removal.
Pivots
