4-21
Xerox® Phaser® 3052/3260 Service Manual
REP 1.12
Repairs

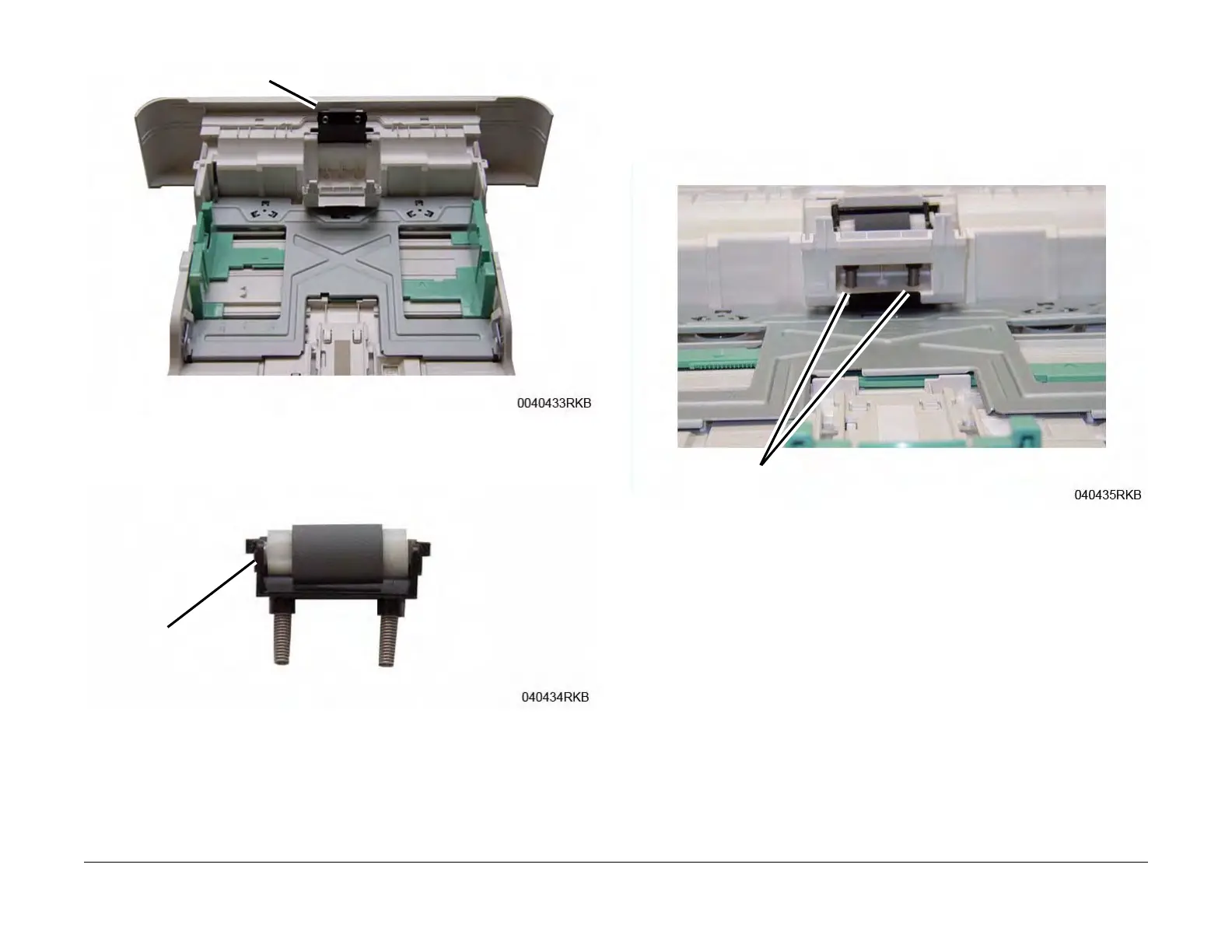

Figure 2 Retard Roll Holder Removal
4. Sliding the left side of the Retard Roll out of the holder and remove it (Figure 3).
Figure 3 Retard Roll Removal
Replacement
1. Install the components in the reverse of removal.
NOTE: Make sure the Springs (2) on the Retard Roll Holder are correctly positioned on
the holes (Figure 4).
Figure 4 Springs Located in Holes
Retard Roll Holder
Slide Out
Springs
