Xerox Phaser 3117 Service Manual

x
Service Manual
Disassembly and Reassembly
5-6
5.2.6 HVPS
1.Before Disassembling.
-Separate the font cover.(Refer to 5.2)
-Separate the SMPS cover.(Refer to 5.3)
-Separate the Main cover.(Refer to 5.4)

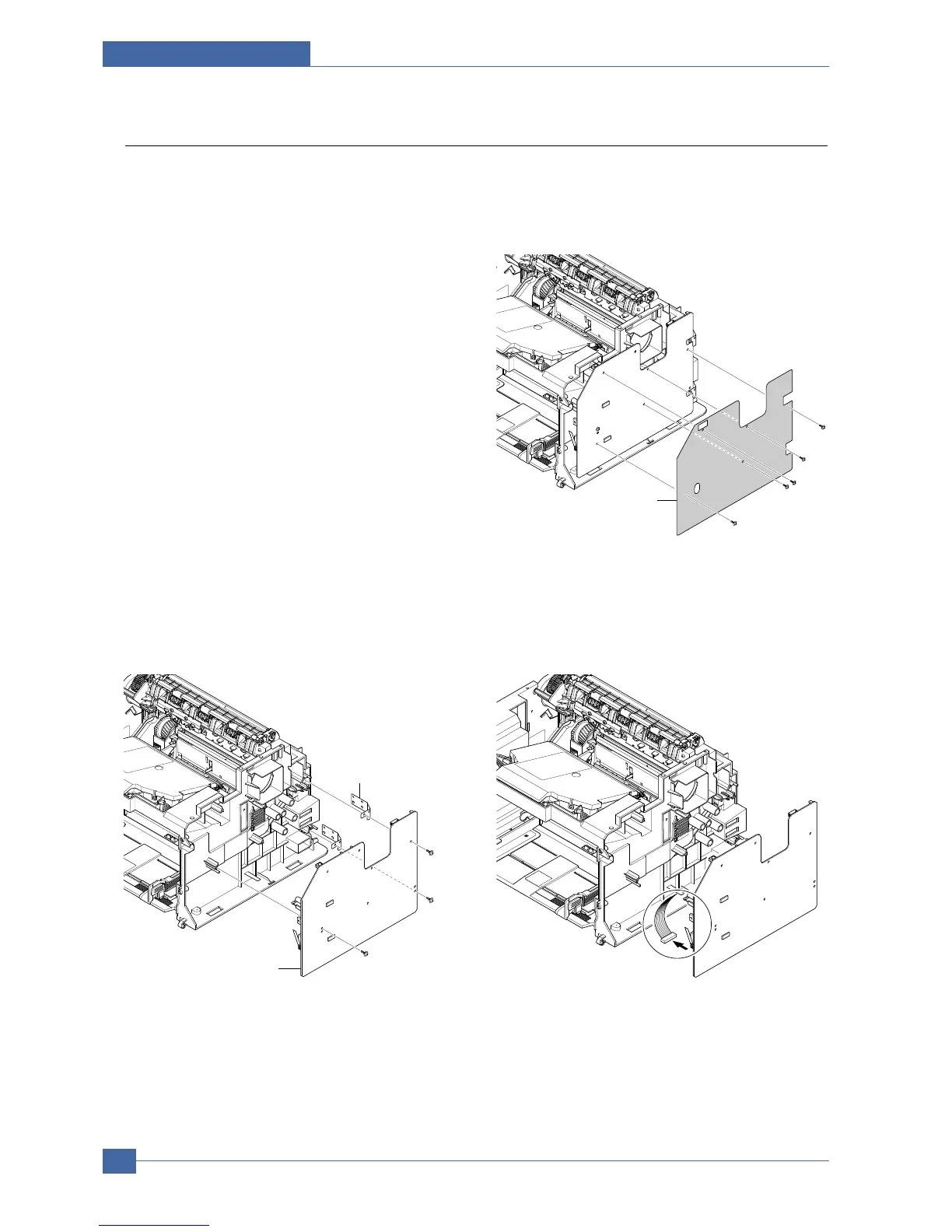

2.Remove the sheet by releasing the 5 screws which
connects the HVPS and the Sheet.
(Screw x 3:Gold_M3,6003-000269)
3.Separate the HVPS with HVPS ground from the
frame by releasing the remaining 3 screws.
(Screw x 3:Gold_M3,6003-000269)
4.Remove the connector from the separated HVPS.
HVPS Sheet
HVPS
HVPS Ground
