Printing on Specialty Media
Phaser® 5550 Printer
4-44

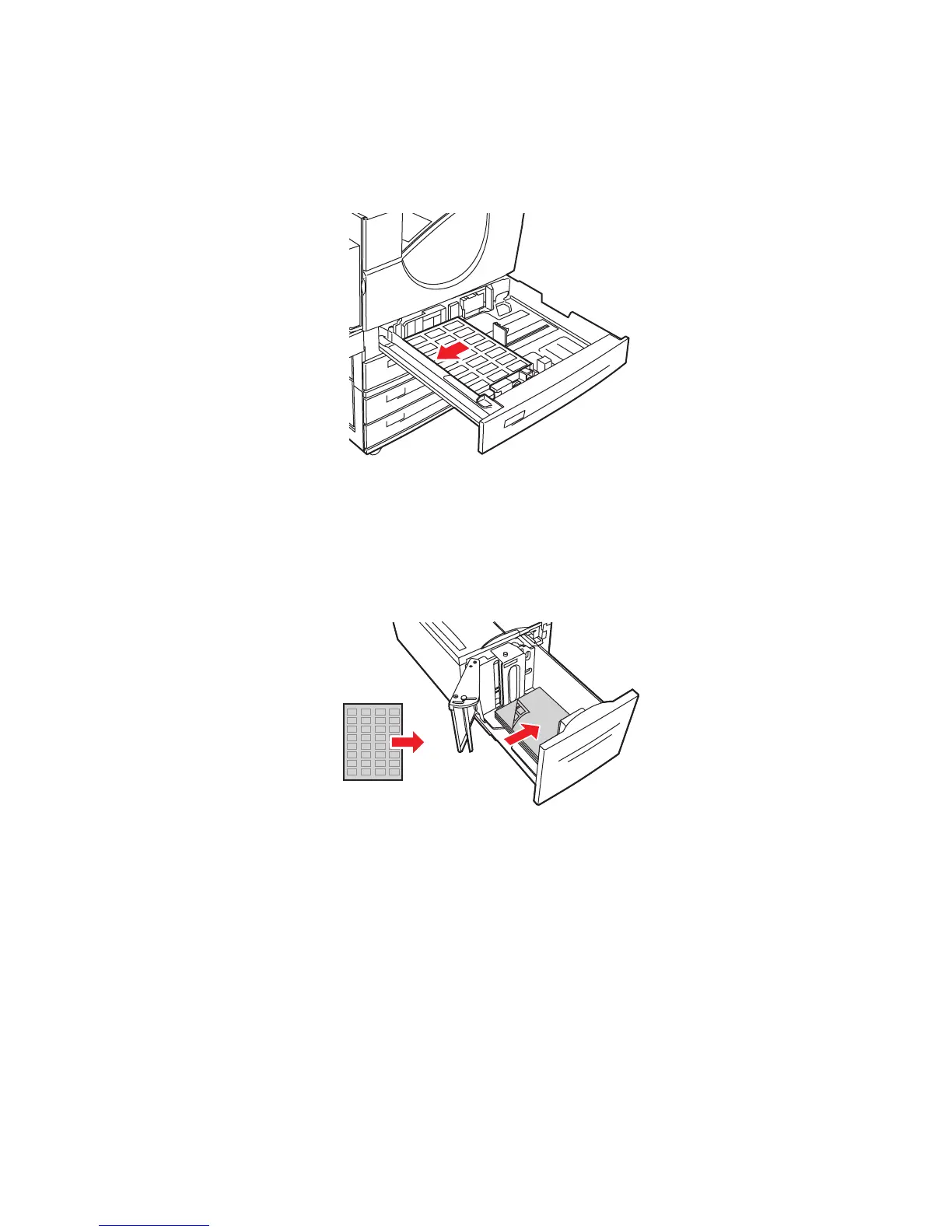

Trays 2-5
■ Insert the label sheets long-edge feed (recommended) and faceup into Tray 2-5. Place
the top of the page toward the front of the printer.
Tray 6
■ Insert the label sheets long-edge feed and facedown into Tray 6. Place the top of the
page toward the front of the tray.
2. Adjust the paper guides to the size of the label sheets.
3. If prompted on the control panel, press the OK button to accept the paper size and type
that are shown. If you have changed the paper size or type, do the following:
a. Select
Change setup, and then press the OK button.
b. Select
Labels, and then press the OK button.
c. Select the paper size, and then press the OK button to save your selection.
4. In the printer driver, select either Labels or the tray you loaded as the paper source.
5550-260
5550-259
