Xerox VersaLink B605 - Loading Paper in Trays 1-5

LLooaaddiinngg PPaappeerr iinn TTrraayyss 11––55
To load paper in Tray 1 and optional Trays 2–5:

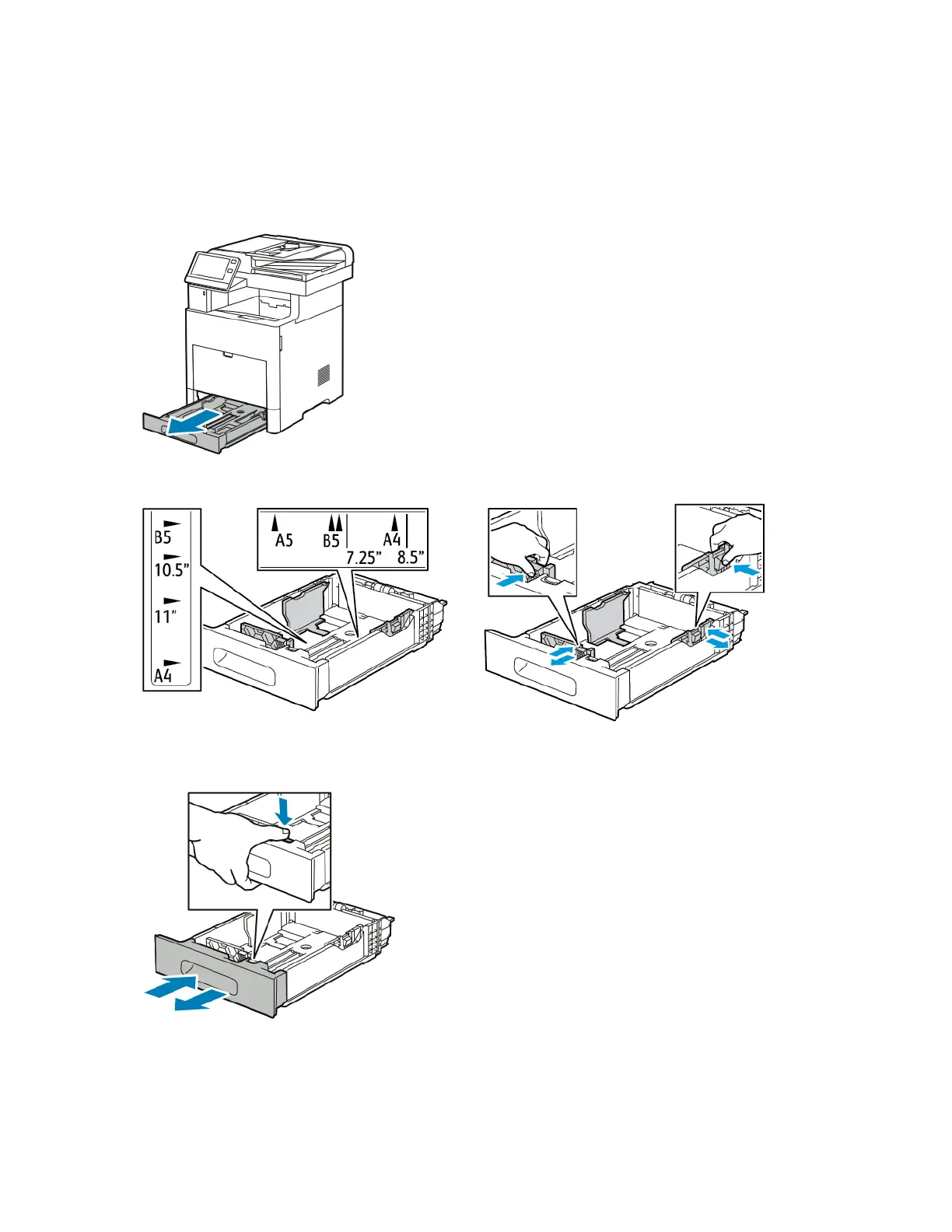

1. To remove the tray from the printer, pull out the tray until it stops. Lift the front of the tray slightly
and then pull out the tray completely.
2. Adjust the paper length and width guides as illustrated.
3. For Legal-size paper, to extend the front of the tray, press the green release latch, then pull the
tray out.
156
Xerox
®
VersaLink
®
B605/B615 Multifunction Printer
User Guide
Paper and Media
