Xerox VersaLink B7130 User Manual

Adjustments and Maintenance Procedures
ADJUSTING PAPER REGISTRATION
Use Adjust Paper Registration to adjust the placement of the printed image on the page. The adjustment allows
you to place the top, bottom, left, and right margins exactly where you want. You can specify the image position on
both the front and back sides of the paper, for each installed paper tray.
Verifying Paper Registration
1. At the printer control panel, press the HHoommee button.
2. Log in as administrator. For details, refer to the System Administrator Guide at www.xerox.com/office/
VLB71XXdocs.
3. Touch DDeevviiccee >> SSuuppppoorrtt >> IImmaaggee PPoossiittiioonn.
4. Select the source paper tray for the registration print.
a. Touch PPaappeerr SSuuppppllyy.
b. Touch the desired tray.
5. If your printer has automatic 2-sided printing, select the sides that you want to optimize.
• To select a sample registration page for adjusting side 1, touch AAddjjuusstteedd SSiiddee, then touch SSiiddee 11.
• To select a sample registration page for adjusting both sides, touch AAddjjuusstteedd SSiiddee, then touch SSiiddee 22.
6. Specify the consecutive number of sample pages to print.
a. Touch PPrriinntt SSeettttiinnggss.
b. To increase or decrease the number of sample pages, for Quantity, touch the PPlluuss icon (++) or the MMiinnuuss icon
(--), then touch OOKK.
7. To print the sample pages, touch PPrriinntt SSaammppllee.
8. When printing is completed, touch CClloossee.

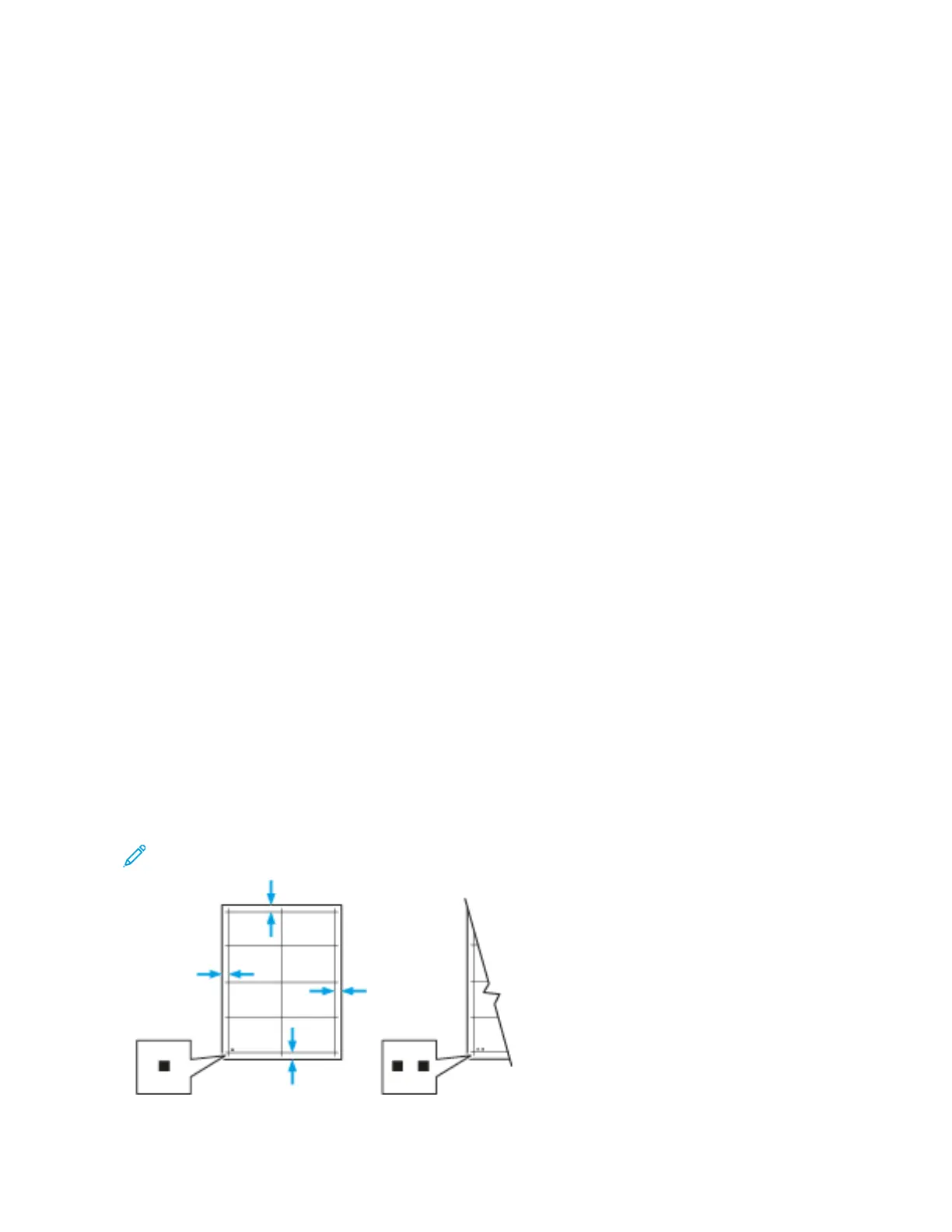

9. On the sample pages, for Side 1, use a ruler to measure the distance of the printed image from the top, bottom,
left, and right edges.
Note: For identification, a single dot is printed on Side 1, and two dots are printed on Side 2.
198 Xerox
®
VersaLink
®
B71XX Series Multifunction Printer User Guide
Maintenance

Xerox VersaLink B7130 Specifications

General

N-up printing	16
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.2 s
Print speed (black, normal quality, A3)	17 ppm
Duplex print speed (ISO/IEC 24734, A3) black	11 ppm
Print speed (black, normal quality, A4/US Letter)	30 ppm
Optional connectivity	Wireless LAN
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Security algorithms	256-bit AES, FIPS 140-2, IPSec, SNMPv3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	@PrintByXerox, Apple AirPrint, Mopria Print Service
Processor cores	2
Internal storage capacity	320 GB
Sound power level (standby)	4.1 dB
Sound power level (printing)	6.8 dB
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	4.3 s
Copy speed (black, normal quality, A4)	30 cpm
Display	LCD
Control type	Touch
Product color	Blue, White
Display diagonal	7 \
Market positioning	Business
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	480 W
Power consumption (sleep)	0.4 W
Power consumption (standby)	94 W
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Other operating systems supported	HP-UX 11, HP-UX 11.11, HP-UX 11.23, HP-UX 11.31, IBM AIX 5.3, IBM AIX 6.1, IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC, Solaris 8, Solaris 9, Solaris 9 SPARC
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Scan to	E-mail, USB
Scan drivers	TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Maximum scan area	297 x 431.8 mm
Output color depth	24 bit
Output grayscale depth	8 bit
Image formats supported	JPG, TIFF
Document formats supported	PDF
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 85 %
Faxing	-
PCL fonts	83
Printer fonts	PCL, PostScript
Printing colors	Black
Duplex functions	Copy, Print, Scan
Maximum duty cycle	129000 pages per month
Number of PostScript fonts	136
Number of print cartridges	1
Page description languages	HP-GL, JPEG, PCL 5, PCL 6, TIFF, XPS
Total input capacity	620 sheets
Total output capacity	250 sheets
Paper tray 1 input capacity	520 sheets
Multi-Purpose tray input capacity	100 sheets
Auto document feeder (ADF) input capacity	130 sheets
Custom media width	139.7 - 297 mm
Custom media length	182 - 431.8 mm
Duplex media weight	60 - 169 g/m²
Paper tray media types	Bond paper, Card stock, Glossy paper, Heavy paper, Heavy printing media, Labels, Letterhead, Lightweight paper, Plain paper, Pre-Printed, Recycled paper
Paper tray media weight	60 - 256 g/m²
ISO A-series sizes (A0...A9)	A3, A4, A5
Multi-purpose tray media types	Bond paper, Envelopes, Glossy paper, Heavyweight paper, Labels, Letterhead, Plain paper, Preprinted forms, Recycled paper
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 216 g/m²
Auto Document Feeder (ADF) media weight	38 - 128 g/m²
Current rating	12 A
Browser supported	Microsoft, Internet Explorer, Microsoft Edge, Mozilla Firefox, Apple Safari, Google Chrome
Languages support	Multi
Supported network protocols	TCP/IP: HTTP/HTTPS, Internet Printing Protocol, LPR/LPD, Raw Socket Printing/Port 9100, IPv4/IPv6, WSD LDAP Bonjour/AirPrint FTP

Weight and Dimensions

Depth	670.8 mm
Width	615.7 mm
Height	766.5 mm
