Xerox Customized Envelope Feeder – Problem Solving Guide 4-5
REP 4.6 Carriage Belts

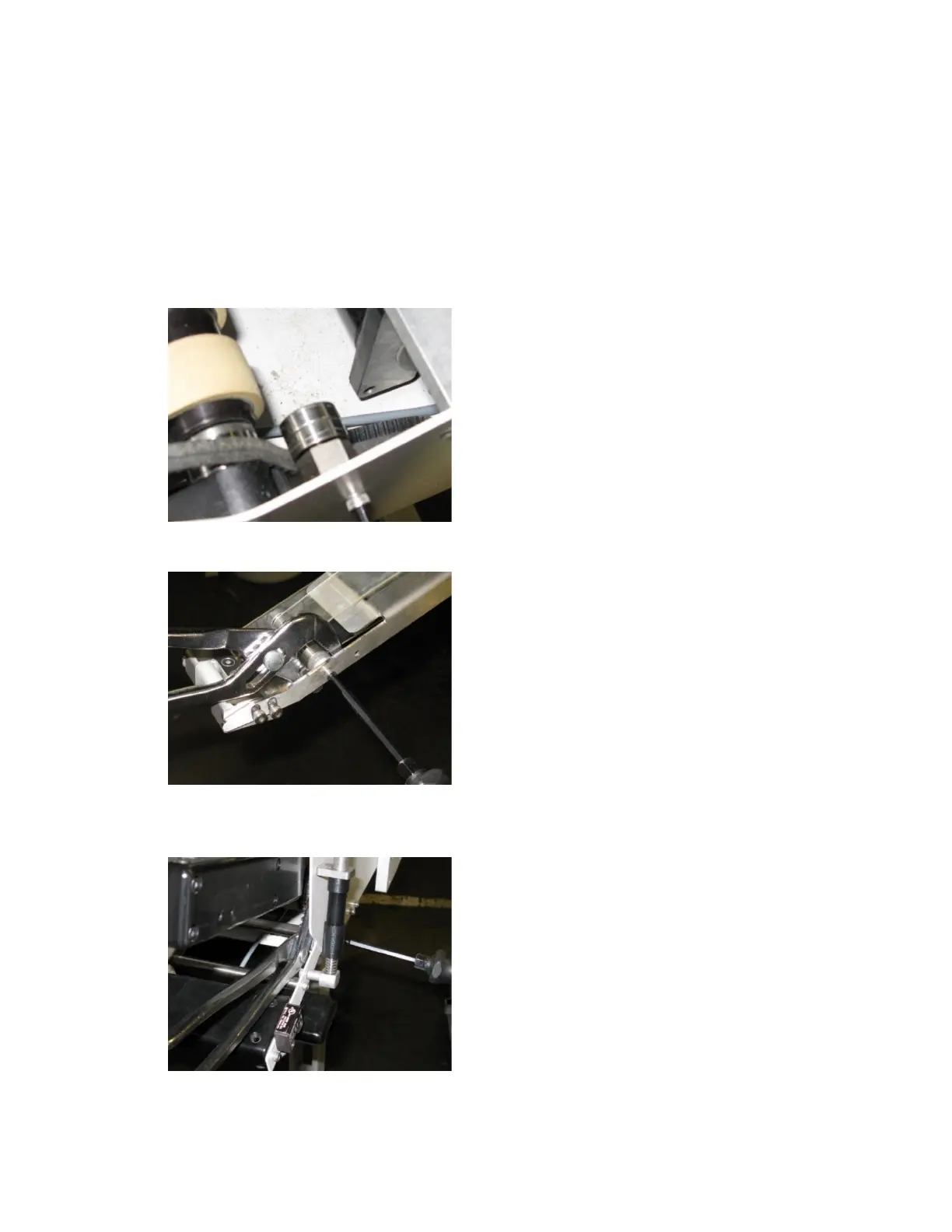

Removal and Replacement
___1. PowerofftheFeederandunplugtheFeederpowercord.
___2. RemovetheRetardAssembly.
___3. RemovethefourTopCoverScrews.
___4. LoosenandremovetheDriveBeltfromtheMotor.
___5. RemovetheDischargeTensionRoller.
___6. RemovetheleftandrightscrewsfromtheDischarge
BearingHolder(CAUTION‐theassembly
willdrop).

