4-10 Xerox Customized Envelope Feeder – Problem Solving Guide
REP 4.9 Feeder Height Adjustment Procedure
Overview

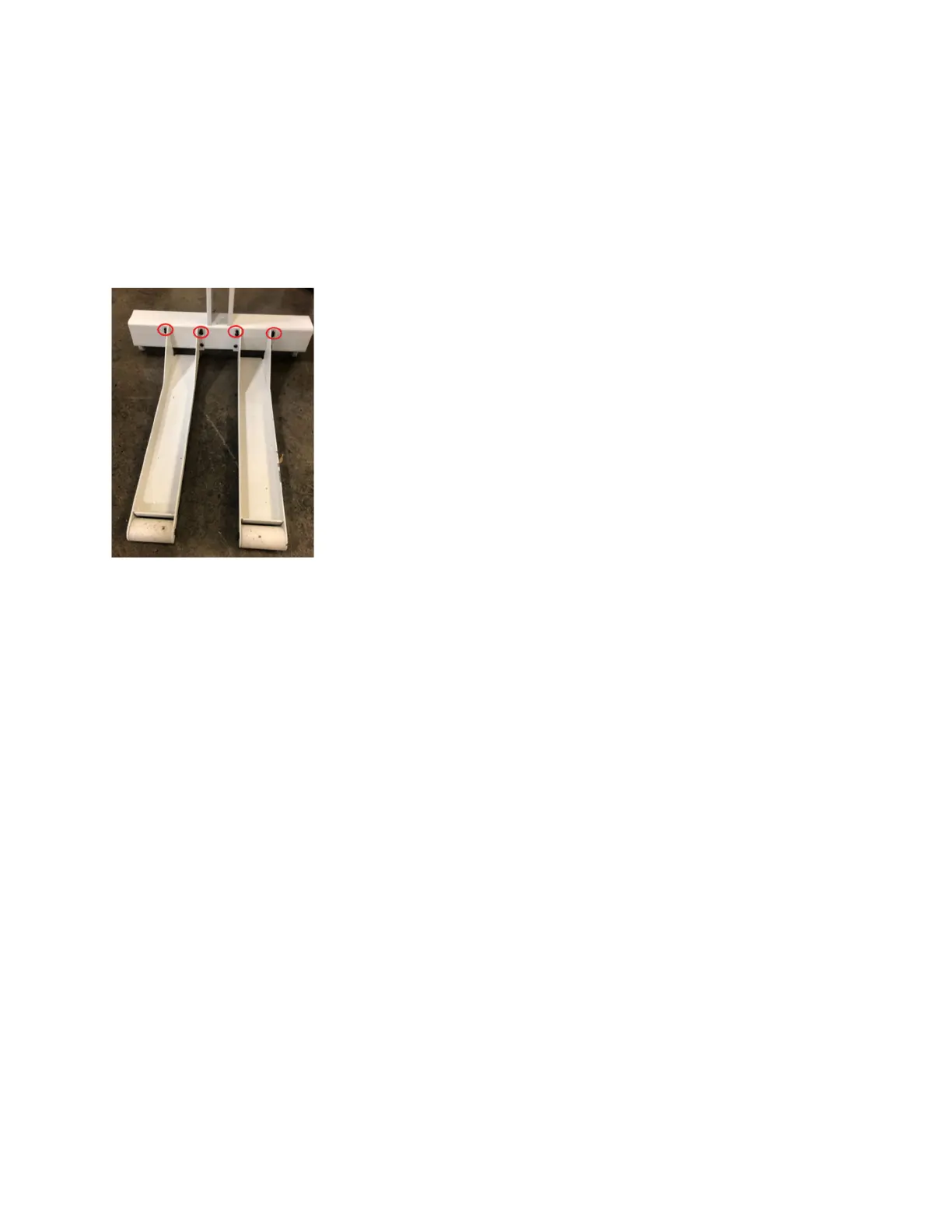

The height/angle of the whole feeder can be adjusted by turning the top setscrews on the
base of the stand (see below). Turning the top setscrews will “tip” the feeder forward,
lowering it where the discharge is placed in the printer’s Feed Tray. The gate assembly
adjustment knob can then be used to further refine the Feeder height.
NOTE: It is important that each setscrew is turned the same amount.
