Versant 80 Press
Customer Expectation & Installation Guide 39
 HCF+Press+BR finisher
 OHCF+Press+BR Finisher
 Advanced HCF+Press+BR Finisher
 MSI+Press+IFM+Standard Finisher (with or without C/Z folder)
 MSI+Press+ Booklet Maker Finisher (with or without C/Z folder)
 HCF+Press+Standard Finisher (with or without C/Z folder)
 HCF+Press+Booklet Maker Finisher (with or without C/Z folder)
Note: Larger configurations must be considered stationary due to the amount of force required to move the press.
Service / Operational Space Chart
Service/Operational Space Stationary Moveable
Rear of Press 39.3 in / 1000 mm 10 in / 254 mm
Front of Press 37.3 in / 947.2 mm 37.3 / 947.2 mm
Side of Press 29 in / 750 mm 29 in / 750 mm
Space above press 78 in / 1981 mm 78 in / 1981 mm
Space between Press and Print Server (as required) 24 in / 610 mm 24 in / 610 mm

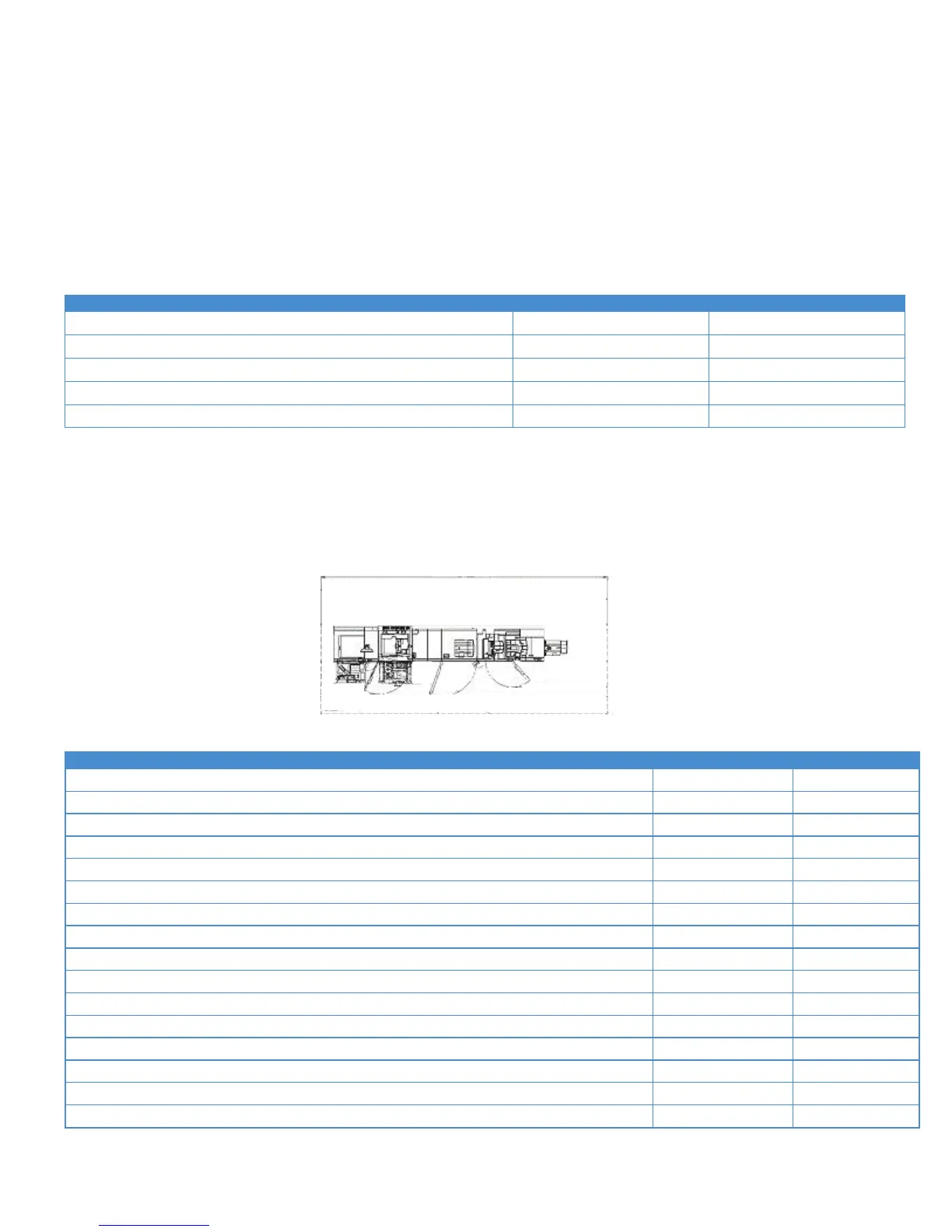

Service space Envelope
The dimensions shown below provide the overall service space required, including the space to the nearest obstruction. The
dimensions reflect both typical and hallway installations and are absolute minimums.
Dotted line around press graphic represents service space envelope
Configuration Width Depth
Press + OCT 115 in / 2914 mm 109 in / 2768.4
PRESS + BR Finisher 132 in / 3349 mm 109 in / 2768.4
PRESS + BR Booklet Finisher 135 in / 3408 mm 109 in / 2768.4
PRESS + IFM + Standard Finisher 154 in / 3904 mm 109 in / 2768.4
PRESS + IFM + Booklet Finisher 154 in / 3909 mm 109 in / 2768.4
PRESS + IFM + Booklet Finisher + SFT 185 in / 4690 mm 109 in / 2768.4
PRESS + IFM + Booklet Finisher + SFT + 2-Knife Trimmer 284 in / 6190 mm 109 in / 2768.4
PRESS + IFM + Standard Finisher Plus 166 in / 4209 mm 109 in / 2768.4
PRESS + IFM + Standard Finisher w/C/Z Folder 162 in / 4104 mm 109 in / 2768.4
PRESS + IFM + Booklet Finisher w/ C/Z Folder 162 in / 4109 mm 109 in / 2768.4
PRESS + IFM + Booklet Finisher w/ C/Z Folder + SFT 193 in / 4890 mm 109 in / 2768.4
PRESS + IFM + Booklet Finisher w/ C/Z Folder + SFT + 2-Knife Trimmer 252 in / 6390 mm 109 in / 2768.4
PRESS + IFM + Standard Finisher Plus w/ C/Z Folder 174 in / 4409 mm 109 in / 2768.4
PRESS + IFM + HCS 144 in / 3659 mm 109 in / 2768.4
PRESS + IFM + HCS + Standard Finisher 186 in / 4709 mm 109 in / 2768.4
PRESS + IFM + HCS + Booklet Finisher 186 in / 4714 mm 109 in / 2768.4
