Xerox WorkCentre 5019 - Using the Printer Setup Utility for Setting the IP Address

Xerox
®
WorkCentre
®
5019/5021
Network Addendum
10

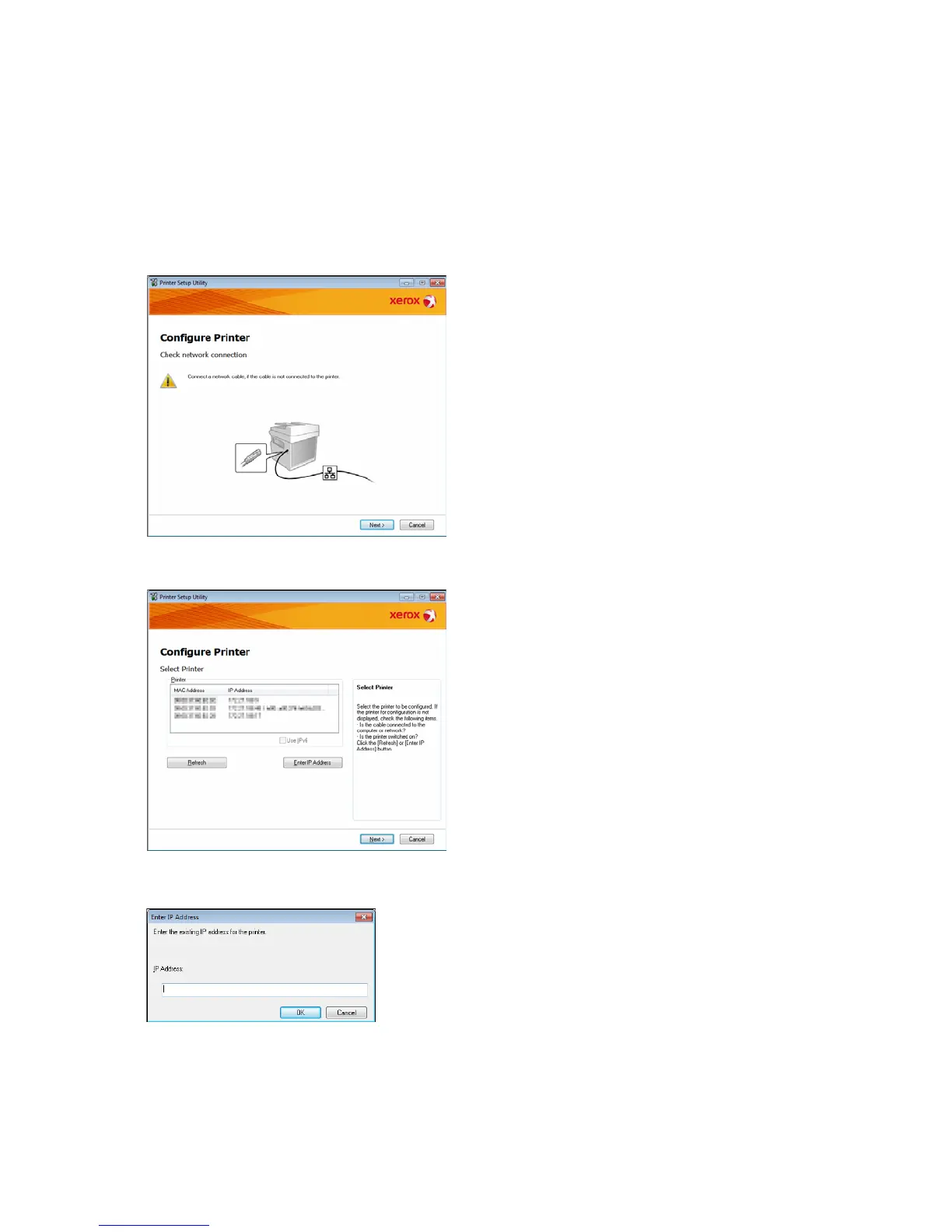

Using the Printer Setup Utility for Setting the IP Address
This section describes how to set the IP address using the Printer Setup Utility for Setting IP Address,
which is included on the Driver CD.
1. Insert the Driver CD into your computer’s CD-ROM drive.
2. Move to the IP Setup Tool folder and double-click xcpsu.exe.
3. Make sure that the network cable is connected to the machine, and then click Next..
4. Select the machine from the list of available IP addresses and MAC addresses, and then click
Next..
If you already have the IP address of the machine, click Enter IP Address and type the IP address
in the IP Address field, then click OK.
