T
roubleshooting
W
orkCentre
77
55/7765/
7775
Multifunct
ion
Printer
User G
uide
197
4.

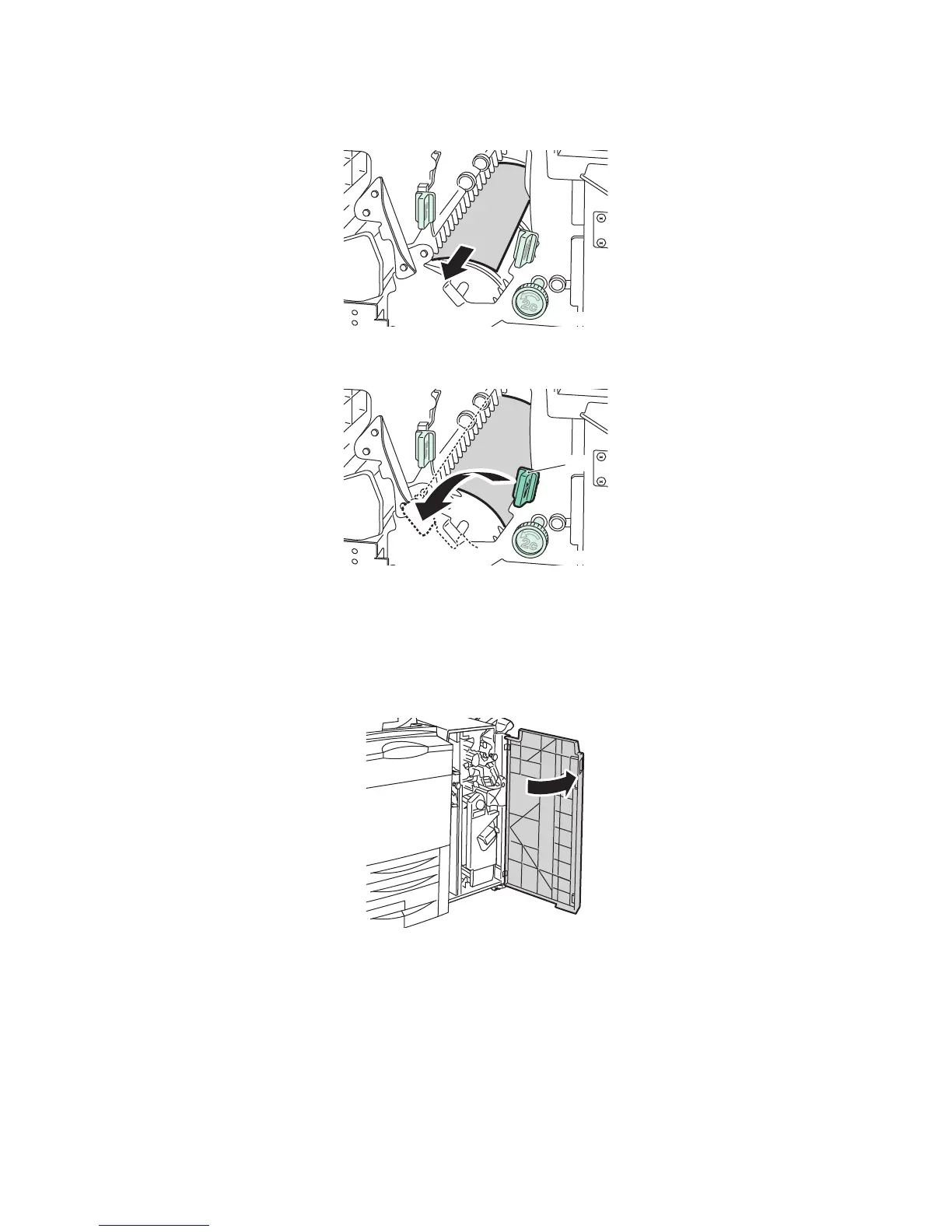

R
emove
the jammed paper.
5.
R
eturn lever
2b
to its original position.
6.
Close the finisher door.
P
aper Jams at 3 in the Finisher
1.
Open the finisher door.
wc77xx-077
2b
wc77xx-153
wc77xx-068
