Troubleshooting
WorkCentre 7800 Series Multifunction Printer 237
User Guide

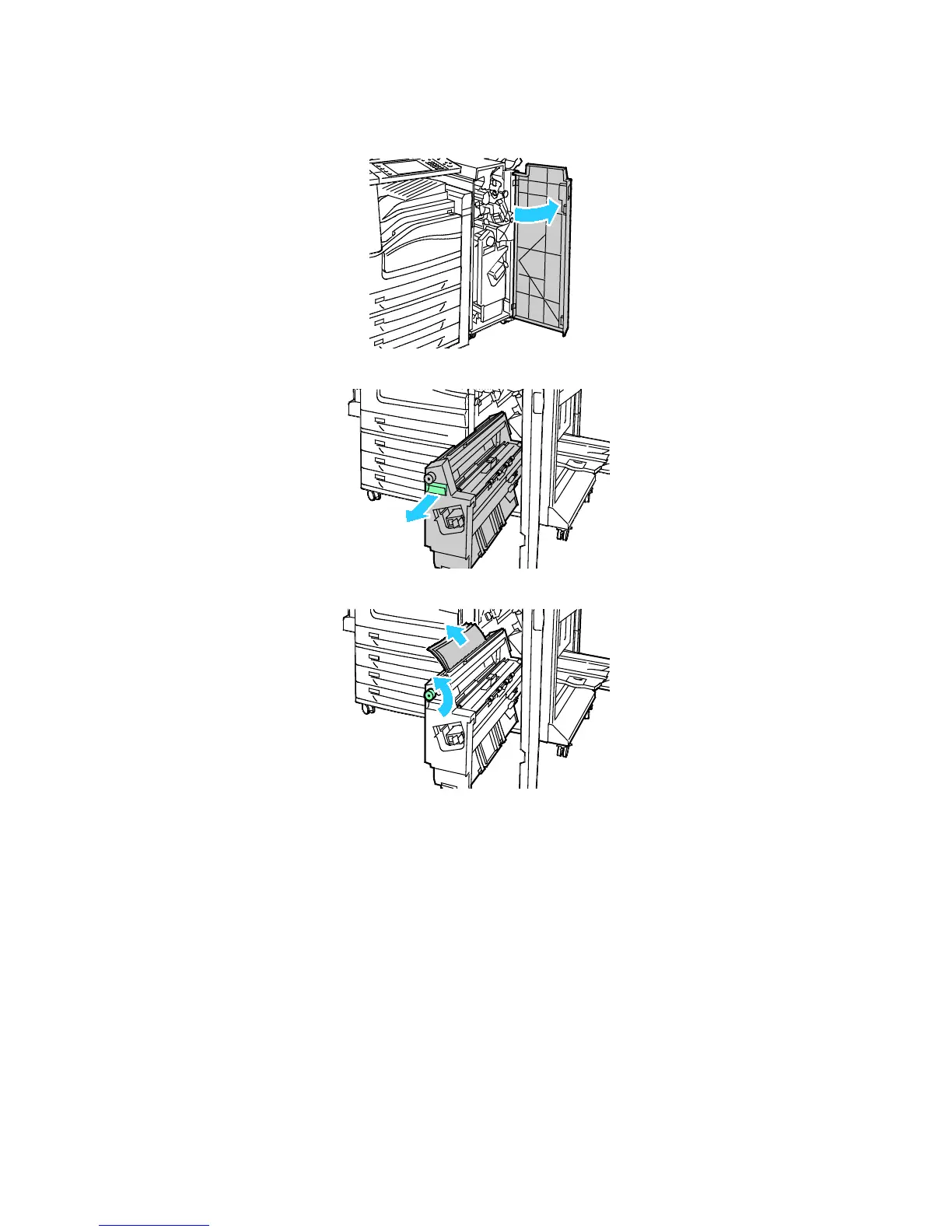

Clearing Jams at 4a in the Finisher
1. Open the front door of the finisher.
2. Using the green handle, pull out unit 4 until it stops.
3. Turn green knob 4a in the direction shown to release the jammed paper.
4. Carefully remove the paper as shown.
Note: If the paper is torn, remove all torn pieces from the finisher.
5. Return unit 4 to its original position.
6. Close the front door of the finisher.
