Getting Started with the Connectivity Targeted Reference Design Demo
8. Copy the contents of the USB flash drive:
a. The reference design files are provided on the USB flash drive delivered with the
connectivity kit.
b. Insert the USB flash drive into a USB connector of the PC system and copy the
v6_pcie_10Gdma_ddr3_xaui_axi folder to the PC system.
Note:
Ensure that the path where the v6_pcie_10Gdma_ddr3_xaui_axi folder is located does
not have spaces.
9. Install the drivers and GUI:
a. Navigate to the v6_pcie_10Gdma_ddr3_xaui_axi folder.

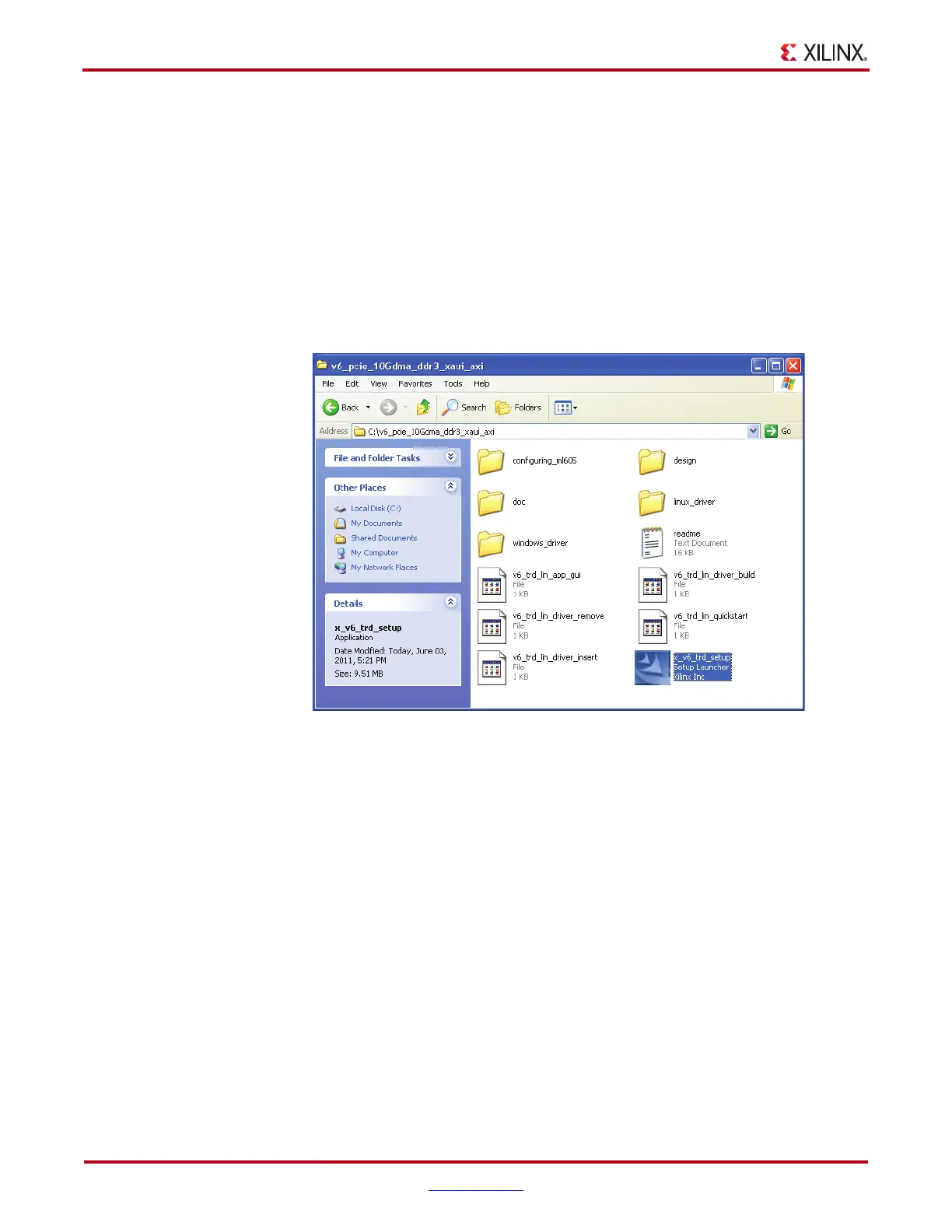

b. Double click on x_v6_trd_setup.exe (Figure 7).
X-Ref Target - Figure 7
Figure 7: Run x_v6_trd_setup.exe
UG664_58_060811
