can try “Forced Download” function. The connection diagram of this function as
below shows:
Download Port (TP series)
pin5&8 shorted forced download mode
Steps:
a. Cut the power of TP, shorted the Pin 5 and 8;
b. Power on, move away the shorted line;
c. Start to download the program with special download cable.
(2) Communication function
The download port of TP series not only has the download function, but also has the
powerful communication function.
When use the communication function of download port, please shorted the pin 5 and pin
6, select the corresponding communication equipment in software settings.

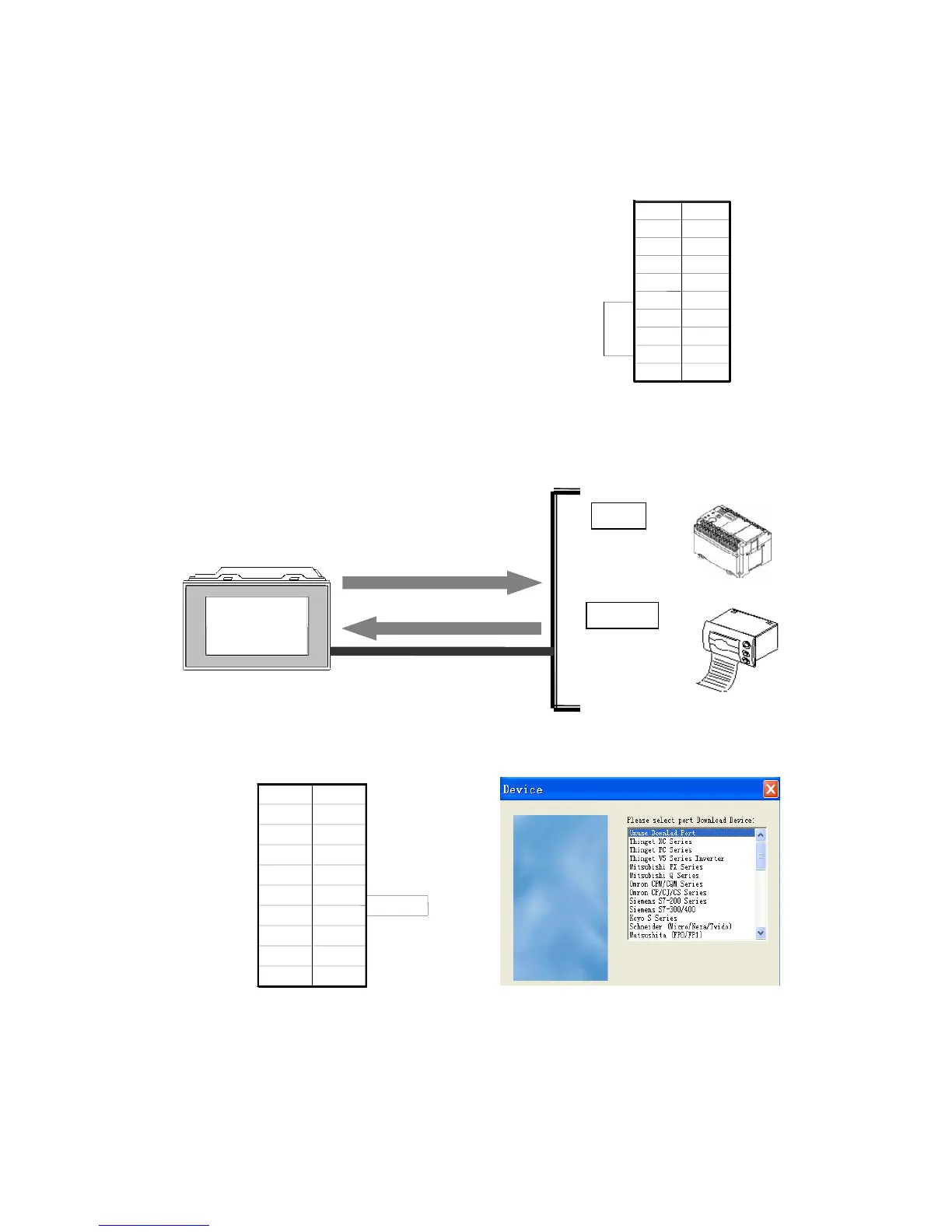

Download port communication mode transformation Select communication device of download port
Receive data
Send data
Printer
PLC
TP Series HMI
Download communication port
Pin
Name
1
2
3
4
5
6
7
8
9
NC
RXD
TXD
A
GND
BUSY
B
NC
NC
NC
NC
B
BUSY
GND
A
TXD
RXD
NC
9
8
7
6
5
4
3
2
1
Name
PIN
