Xinje XC Series User Manual

Besides the expansion modules, XC series PLC can also expand by the BD cards. The BD cards
are small PCB cards that can insert into PLC from the BD port (on CPU unit), so this kind of
expansion does not take extra space.
 Analog temperature: XC-2AD2PT-BD
 Analog: XC-2AD2DA-BD
 Communication: XC-COM-BD
 SD card: XC-SD-BD
 Ethernet: XC-TBOX-BD
※1: User should install and configure before using the BD cards. For details, please refer to:《XC series BD cards
user manual》.
1-2．Model Composing and Model List
1-2-1．Name Principle and Model list of CPU units
1：
Series Name
XC1、XC2、XC3、XC5、XCM
2：
Input/output Point
10、14、16、24、32、42、48、60
3：
If Input is NPN
R：Relay output
T：Transistor output
RT：Relay/Transistor mix output (Y0、Y1 are Transistor)
If Input is PNP
PR：Relay output
PT：Transistor output
PRT ： Relay/Transistor mix output (Y0 、 Y1 are
BD Card
2

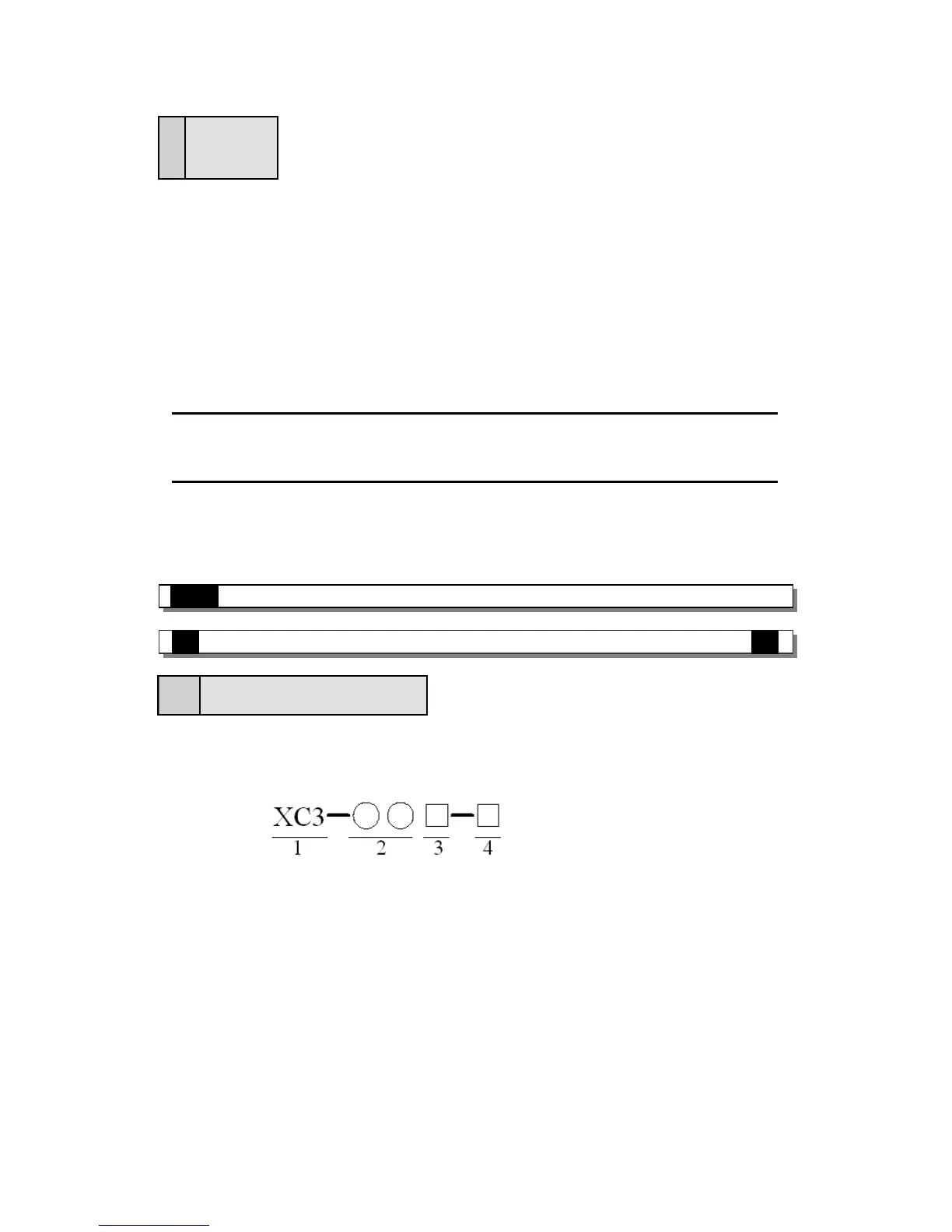

Name principle of XC series PLC CPU units:
Name Principle of CPU units
1
