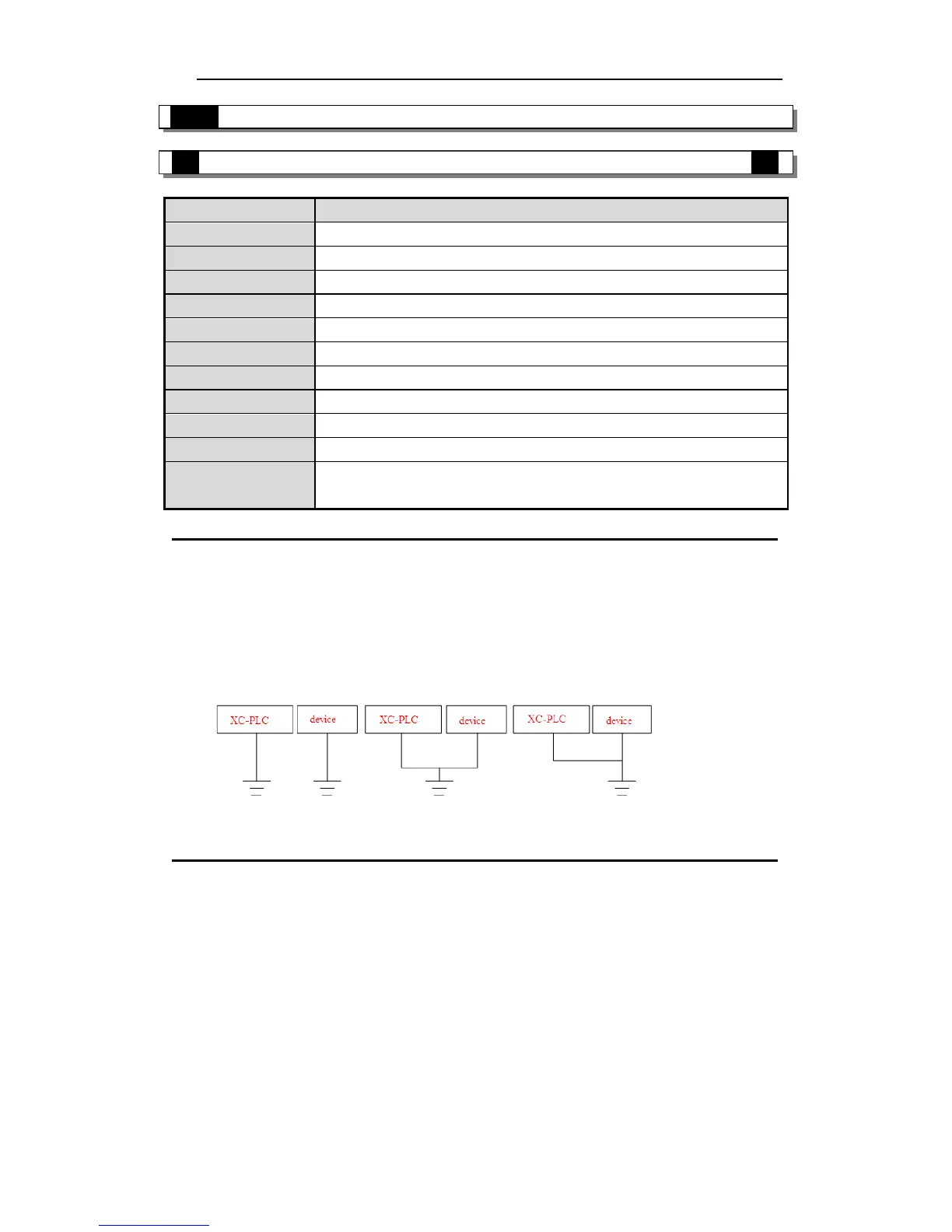

Xinje XC Series User Manual

2 The Specifications and Parameters of CPU
2-1．Specifications and Parameters
2-1-1．General Specifications
Items
Specifications
Isolate Voltage
Above DC 500V 2M ohm
Anti-noise
Noise voltage 1000Vp-p 1uS pulse per minute
Atmosphere
No erosive, flammable gas
Ambient Temperature
0℃~60℃
Ambient Humidity
5%~95% (no dew)
COM1
※
1
RS-232, connect with the host machine, HMI to program or debug
COM2
※
2
RS-232/RS-485, connect with net or intelligent instruments, inverters etc.
COM3
※
3
RS-232C/RS-485 expanded by BD card
COM4
※
4
CANBUS COM port
Installation
Use M3 screws or DIN to fix
※
5
Grounding
The third type grounding (do not grounding with the strong power
system)
※
6
※1：All the CPU units have COM1, for program and communication;
※2：10I/O、14I/O、16I/O CPU units don't have COM2;
※3：COM3 is the COM port from BD card (XC-COM-BD).
※4：COM4 is only equipped on XC series.
※5：The rail is DIN46277, width is 35mm.
※6：The grounding should be like type 1 and 2, not 3.
Type 3
Type 2
Type 1
